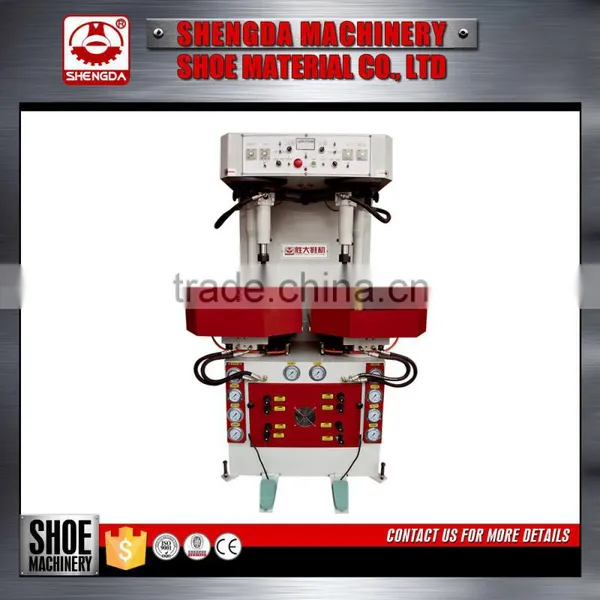

SD-838 hydraulic shoes sole pressing machine (Bottom adjustable)
1.The machine adopts all oil pressure design with high pressure,which makes the sole attaching more firm.
2.The pressure rod have function of automatic displacement and positioning, easy for taking and placing shoes without any damage, greatly increase capacity.

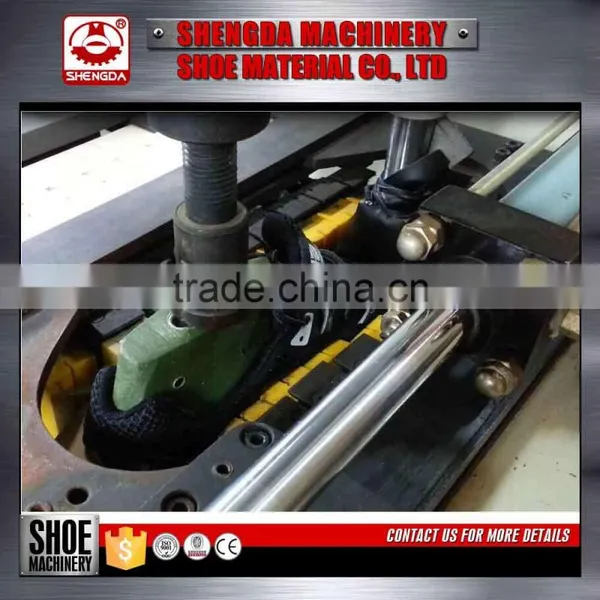

3.The special feature of this machine is the design of floating sole oil-cylinder. The 16 serried cylinders can stretch automatically according to the uneven line of outsole, making it closely abutt to natural shape of the soles, without any spacing.
4.Base pressing, edge pressing and front back pressing can be finished at one time, also can be operated individually, 3 functions in one machine reduce the investment cost.
5.Comparing with other walled type pressing machine and airbag-type pressing machine, it has an unparalleled advantage that it also suitable for kids shoes from size zero to size eight.
6.Easy for replacement and maintenance. The efficiency is improved at the same time.
| Model | SD-838 |
| Motor | 3HP |
| Output | 20000pairs/8hours |
| N.W. | 1300kg |
| G.W. | 1380kg |
| Dimensions | 1200*1150*1930mm |
| Packing size | 1350*1320*2100mm |
|
|
|
| |
