Veneer Rotary Peeling Lathe
- 3 Set / Sets per Month
- QINGDAO
- advanced design easy operation mushroom slice cutting machine
- advanced design easy operation shitake slicer machine
- advanced design easy operation spiral vegetable slicer
- advanced design easy operation automatic vegetable mushroom slicer
- advanced design easy operation multifunctional vegetable cutter
- advanced design easy operation vegetable slicer/mushroom slicer
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | HAIYONG |
Model Number: | BXQ1827 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Veneer Rotary peeling Lathe1.High rate of wood usage
2.CNC Non-chuck rotary lathe
3.Cutting diameter 360mm
Veneer Rotary Peeling Lathe
Qingdao Haiyong Machinery Manufacturing Co., Ltd. is a manufacturer of wood –working machinery with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We can produce machine according to customer's requirement.
Our rotary lathe is the mian machine in the wood-working industy .It can peeling less than 360mm log-core.The same log-core can be changed between knives by picture guide system.It can peel table and core plate.It has a high rate of wood usage.It is fit for the plywood company for efficient producing.
Technical specifications:
Model | HX1815 | HX1822 | HX1827 |
Max cutting length (mm) | 1350 | 2000 | 2600 |
Max cutting diameter (mm) | Φ300 | Φ300 | Φ300 |
Log-core diameter (mm) | Φ26 | Φ26 | Φ26 |
Cutting thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Veneer output speed (m/min) | 42 | 42 | 42 |
Power (kw) | 19.75 | 21.75 | 25.75 |
Overall dimension (mm) | 3320*1800*1260 | 3700*1800*1490 | 4585*1800*1560 |
N.W (kg) | 3500 | 5500 | 7000 |

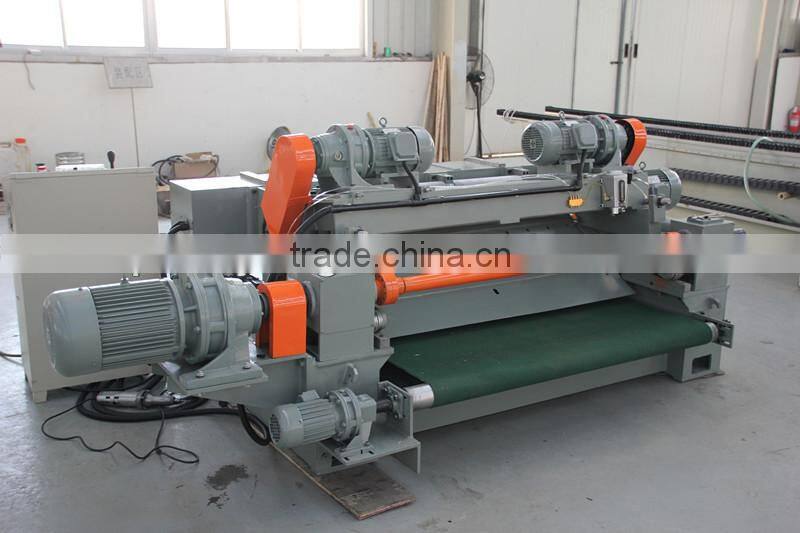

Pictures:
video of our rotary lathe on youtube
/watch?v=ZjQD9C1eP5Q&feature=youtu.be
We can produce plywood machienry and the technology for plywood produce.
plywood production line
Any help,please feel free to contact me.
