BXQ1815 Spindlless rotary lathe
- 15 Set / Sets per Month
- QINGDAO
- T/T
Product Details
| Condition: | New | Type: | Other, peeling machine | Place of Origin: | Shandong, China |
| Brand Name: | HAIYONG | Model Number: | BXQ1815 | Power(W): | 19.75kw |
| Dimension(L*W*H): | 3320*1800*1260 | Weight: | 3500kg | Certification: | ISO9001-2000 |
| Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Rotary Lathe
1.Our factory:
Qingdao Haiyong Machinery Manufacturing Co., Ltd. is a manufacturer of wood –working machinery with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We can produce machine according to customer's requirement.
2.Our production:
Our rotary lathe is the mian machine in the wood-working industy .It can peeling less than 360mm log-core.The same log-core can be changed between knives by picture guide system.It can peel table and core plate.It has a high rate of wood usage.It is fit for the plywood company for efficient producing.
3.Technical specifications:
Model | HX1815 | HX1822 | HX1827 |
Max cutting length (mm) | 1350 | 2000 | 2600 |
Max cutting diameter (mm) | Φ300 | Φ300 | Φ300 |
Log-core diameter (mm) | Φ26 | Φ26 | Φ26 |
Cutting thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Veneer output speed (m/min) | 42 | 42 | 42 |
Power (kw) | 19.75 | 21.75 | 25.75 |
Overall dimension (mm) | 3320*1800*1260 | 3700*1800*1490 | 4585*1800*1560 |
N.W (kg) | 3500 | 5500 | 7000 |

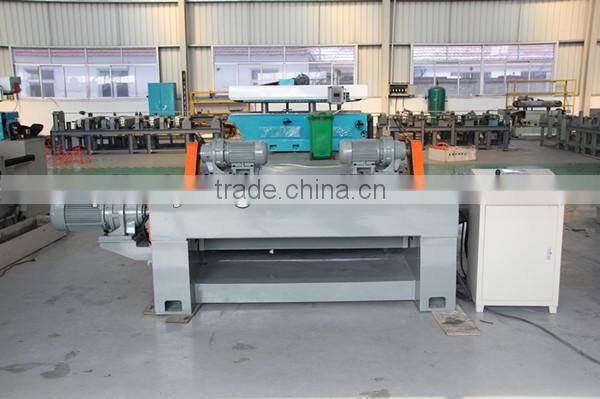

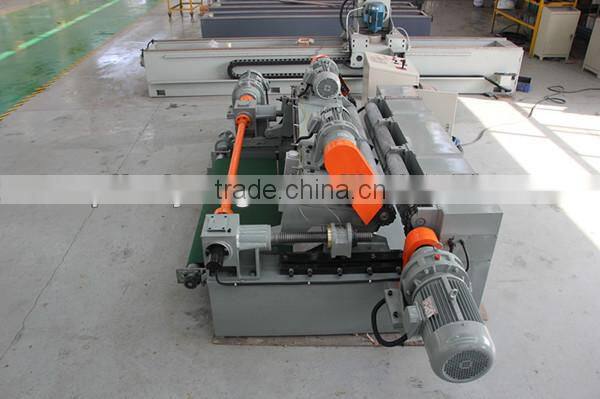

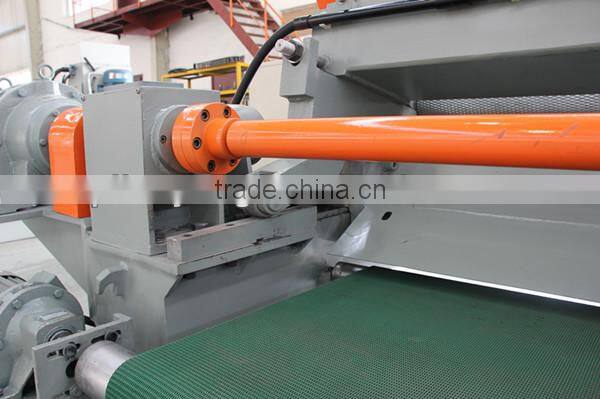

4.Pictures:
5. video of our rotary lathe on youtube
/watch?v=ZjQD9C1eP5Q&feature=youtu.be
