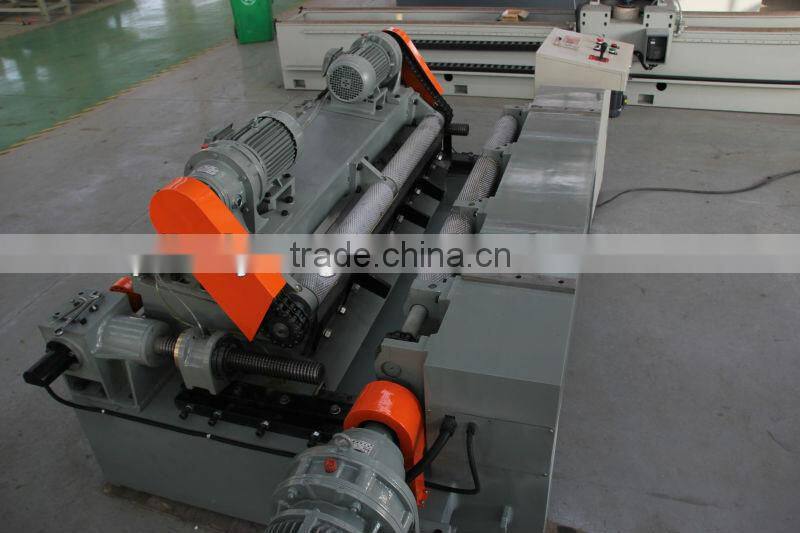

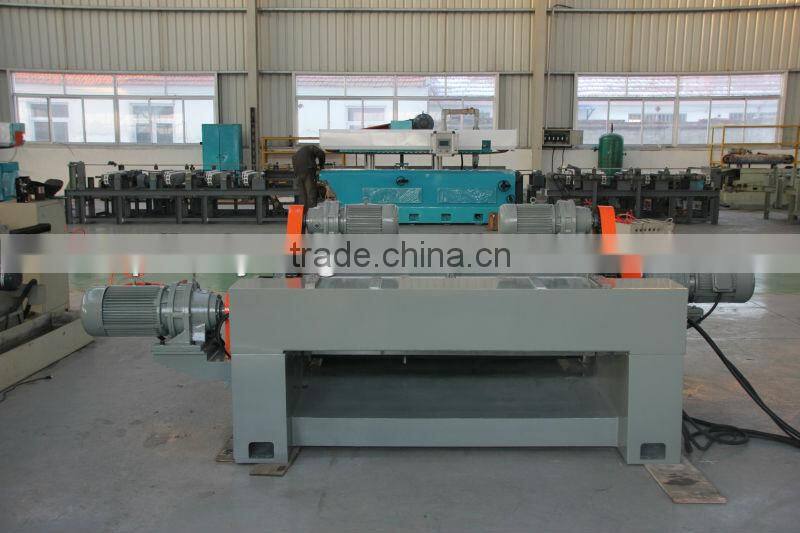

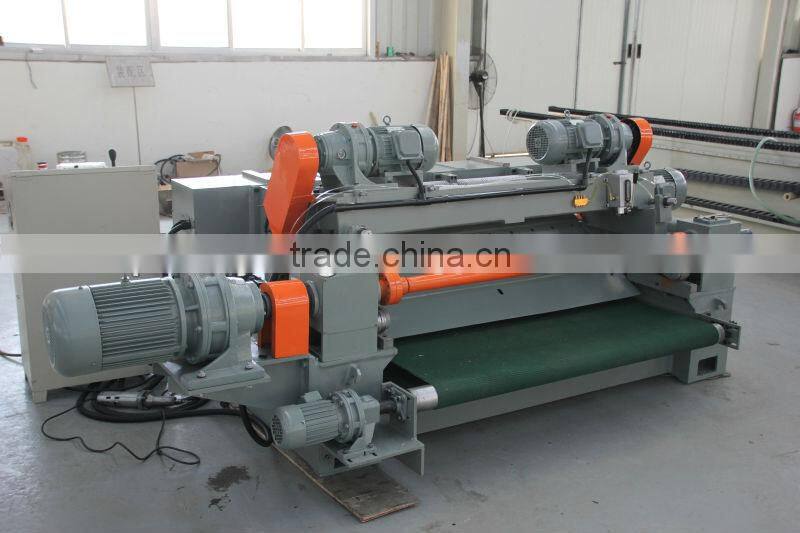

rotary peeling machine
The basic information of the peeling machine
1 the max cutting length is 1350,2000,2600mm. the longer one need to special making.
2 the standard cutting diameter is 300mm. the bigger one we can produce as your requirement.
3 the standard veneer thickness is 0.8 to 3mm. the special thickness need to inform in advance.we also can produce.
4 the final veneer log is 26mm.
5 the machine can cut all kind of wood, soft and hard.
6 the machine body is heavy and treated by heat treatment.
7the accurrcy of the machine is 0.1mm.
8 we have the fast speed model , max produce speed is 60m/min.
Technical specifications of the peeling machine
Model |
BHX1815 |
BHX1822 |
BHX1827 |
Max cutting length (mm) |
1350 |
2000 |
2600 |
Max cutting diameter (mm) |
Φ300 |
Φ300 |
Φ300 |
Log-core diameter (mm) |
Φ26 |
Φ26 |
Φ26 |
Cutting thickness (mm) |
0.8-3.0 |
0.8-3.0 |
0.8-3.0 |
Veneer output speed (m/min) |
42 |
42 |
42 |
Power (kw) |
19.75 |
21.75 |
25.75 |
Overall dimension (mm) |
3320*1800*1260 |
3700*1800*1490 |
4585*1800*1560 |
N.W (kg) |
3500 |
5500 |
7000 |
welcome the enjoy the video of this machine.
/watch?v=ZjQD9C1eP5Q&feature=youtu.be
