Specifications
spindleless veneer lathe1.Cutting length from 1350mm-2600mm
2.Peel table plate and core plate
3.Cutting diameter 360mm

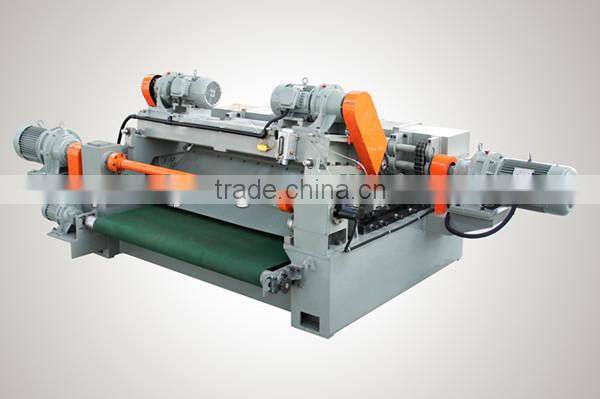

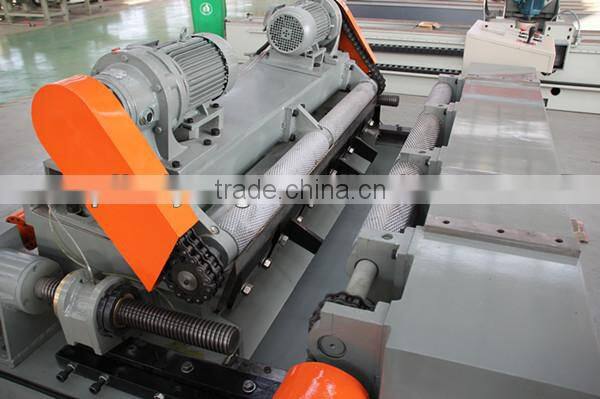

SpindlelessVeneer Lathe

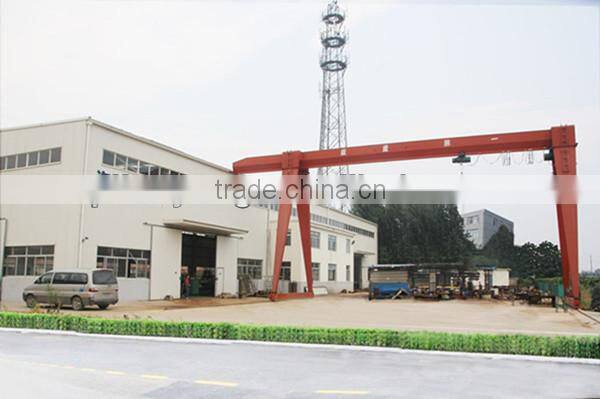

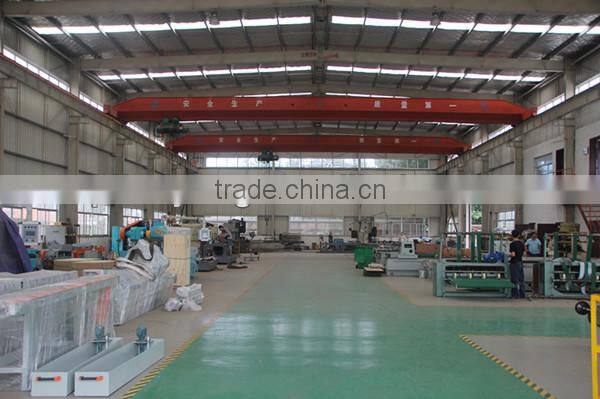

Qingdao Haiyong Machinery Manufacturing Co., Ltd. is a manufacturer of wood –working machinery with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We can produce machine according to customer's requirement.

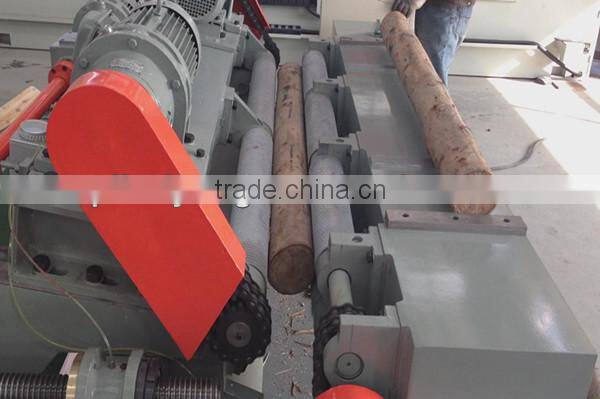

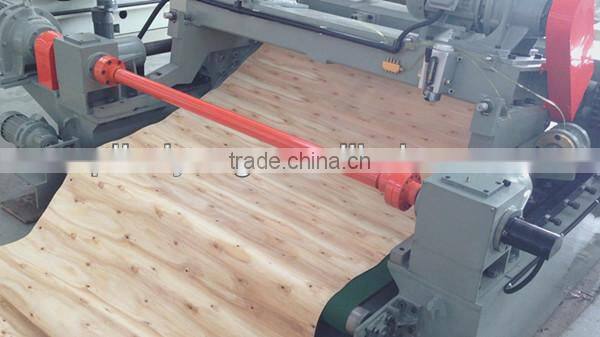

Our rotary lathe is the mian machine in the wood-working industy .It can peeling less than 360mm log-core.The same log-core can be changed between knives by picture guide system.It can peel table and core plate.It has a high rate of wood usage.It is fit for the plywood company for efficient producing.
Technical specifications:
Model | HX1815 | HX1822 | HX1827 |
Max cutting length (mm) | 1350 | 2000 | 2600 |
Max cutting diameter (mm) | Φ300 | Φ300 | Φ300 |
Log-core diameter (mm) | Φ26 | Φ26 | Φ26 |
Cutting thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Veneer output speed (m/min) | 42 | 42 | 42 |
Power (kw) | 19.75 | 21.75 | 25.75 |
Overall dimension (mm) | 3320*1800*1260 | 3700*1800*1490 | 4585*1800*1560 |
N.W (kg) | 3500 | 5500 | 7000 |

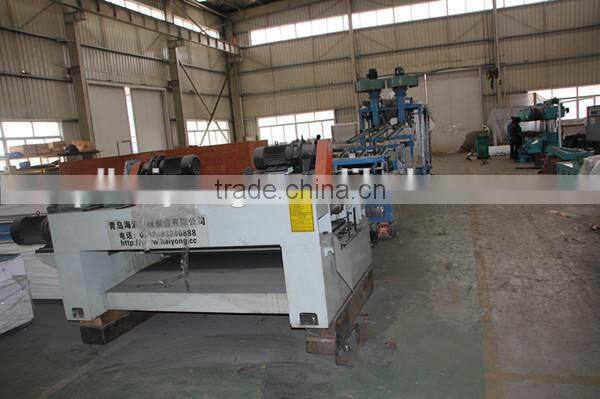

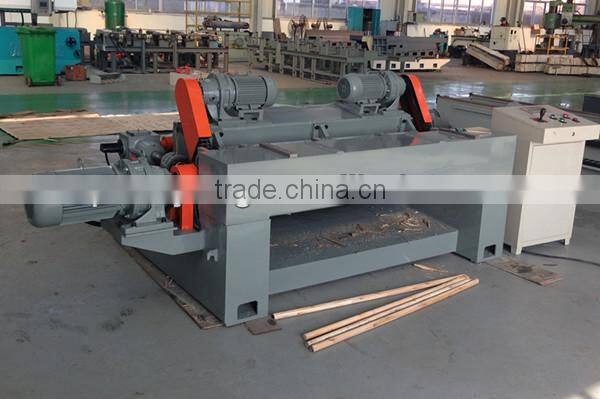

Pictures:
video of our rotary lathe on youtube
/watch?v=ZjQD9C1eP5Q&feature=youtu.be
1.We can produce machine according to customer's requirement.

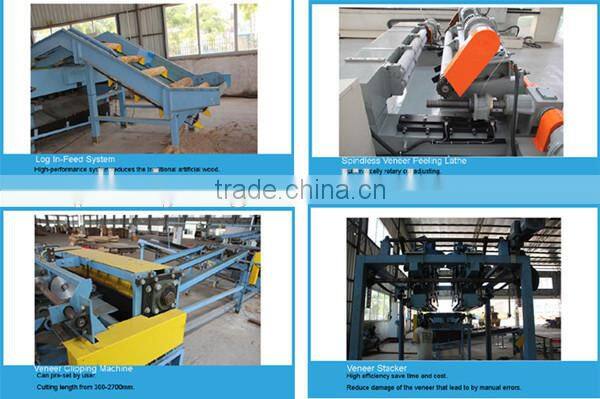

2.We can provide plywood machinery also with technology.
Any help,please feel free to contact me.
