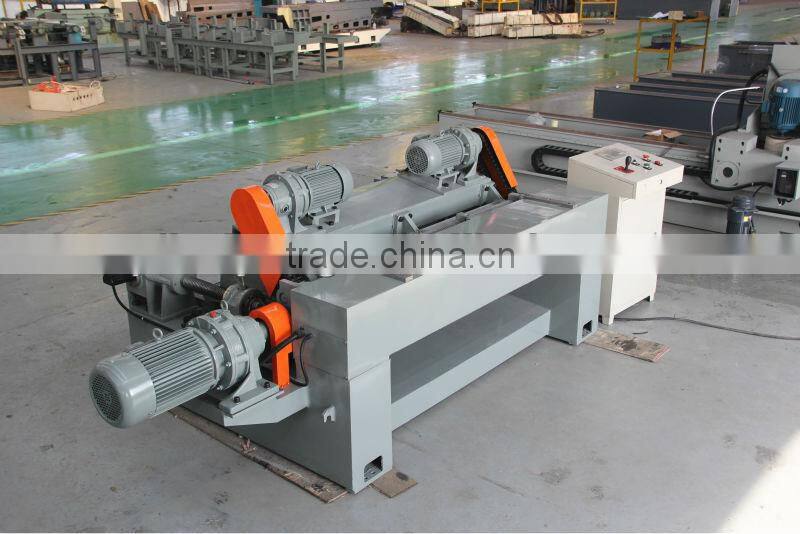

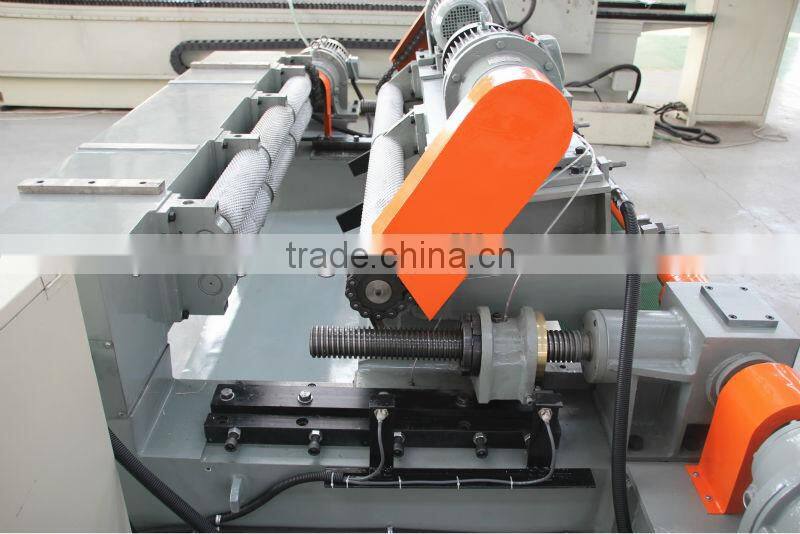

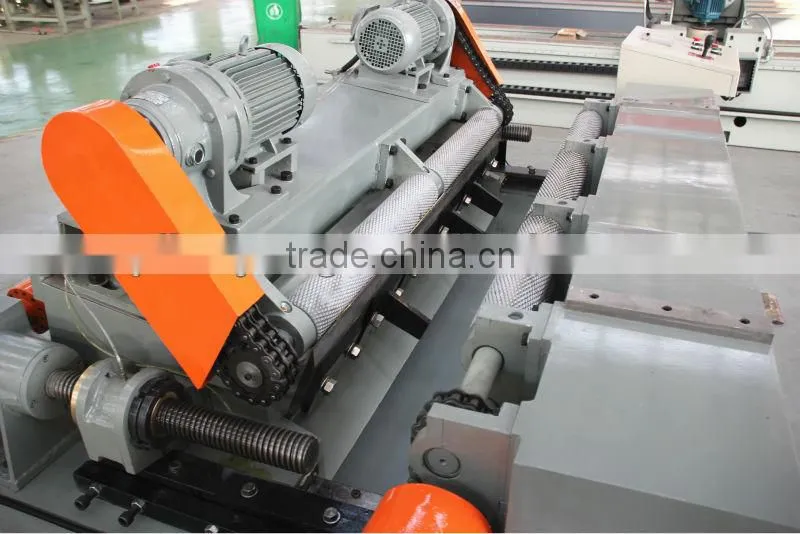

Veneer Peeling Lathe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Haiyong
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
Haiyong
Model Number
BXQ 1822
Specifications
1.Cutting diameter 360mm2.Cutting length 1300mm--2700mm
3.high efficiency
4.high quality and competitive price
Features:
This machine is the main machine in the plywood producing. It can peeling less than Φ 360mm log-core. The same log-core can be changed the clearance between knives by picture guide system. It can peel table plate and core plate. It has a high efficiency, and a high rate of wood usage. It is fit for the plywood company for efficient producing.
specification:
Model |
BXQ1815 |
BXQ 1822 |
BXQ 1827 |
Max cutting length (mm) |
1350 |
2000 |
2600 |
Max cutting diameter (mm) |
Φ300 |
Φ300 |
Φ300 |
Log-core diameter (mm) |
Φ26 |
Φ26 |
Φ26 |
Cutting thickness (mm) |
0.8-3.0 |
0.8-3.0 |
0.8-3.0 |
Veneer output speed (m/min) |
42 |
42 |
42 |
Power (kw) |
19.75 |
21.75 |
25.75 |
Overall dimension (mm) |
3320*1800*1260 |
3700*1800*1490 |
4585*1800*1560 |
N.W (kg) |
3500 |
5500 |
7000 |
