Professional Rotary Lathe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Haiyong
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
Haiyong
Model Number
BXQ1822
After-sales Service Provided
Overseas service center available
Specifications
1.Cutting diameter 360mm2.Cutting length 1300mm--2700mm
3.high efficiency
Specifications:

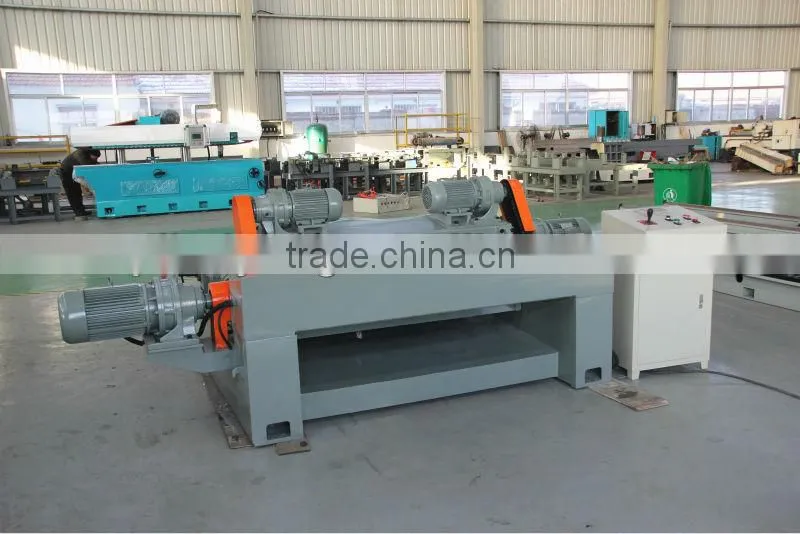

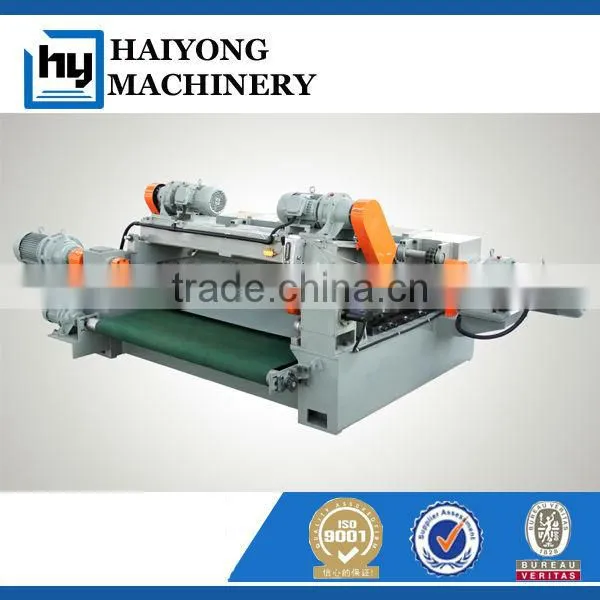

CNC Non-chuck rotary peeling lathe
Cutting diameter 360mm
Cutting length 1350-2600
This machine is used to peel the core veneer. With CNC control system and tool carriage feeding by servo motor control it has high precision, very popular for plywood industry.
model |
BXQ1815 |
BXQ1822 |
BXQ1827 |
Max.cutting length(mm) |
1350 |
2000 |
2600 |
Max.cutting diameter(mm) |
Φ300 |
Φ300 |
Φ300 |
Log-core diameter(mm) |
Φ26 |
Φ26 |
Φ26 |
Cutting thickness(mm) |
0.8-3.0 |
0.8-3.0 |
0.8-3.0 |
Veneer output speed(m/min) |
42 |
42 |
42 |
power(kw) |
19.75 |
21.75 |
25.75 |
Overall dimensions(mm) |
3320*1800*1260 |
3700*1800*1490 |
4585*1800*1560 |
Net weight(kg) |
3500 |
5500 |
7000 |
