Home > Products > Rotary Dryer Equipment > Coal gangue drying machine/ coal drying equipment/coal dryer machine
Coal gangue drying machine/ coal drying equipment/coal dryer machine
- 20 Set / Sets per Month
- Qingdao Shanghai Tianjin Lianyungang
- T/T Credit Card
Product Details
Condition: | New | Type: | Rotary Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | Derui | Model Number: | HZG1200*10000mm | Voltage: | 380v |
Power(W): | 7.5kw | Dimension(L*W*H): | 1.2*10m | Weight: | 9.25t |
Certification: | ISO | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Coal gangue drying machine/ coal drying equipment/coal dryer machine
Coal gangue drying machine is widely used in many industries for dry materials, such as cement, mining, building materials, chemical, food, fertilizer production.In order to control the drying temperature, configure thermocouple at the in and out device,the thermometer can show the temperature changes of the dryer's discharge port,so it provides basis to control better the working temperature in the cylinder body(typically 350-380 degree).
Coal gangue drying machine structure:

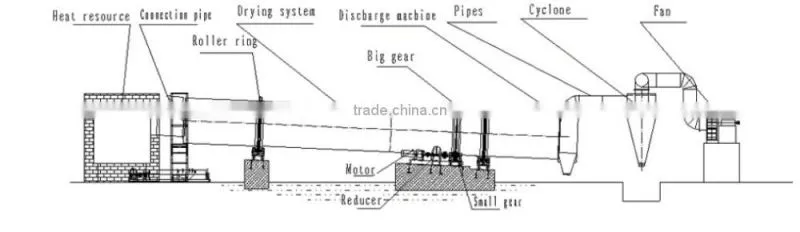

Coal gangue drying machine consists of heat source, beater device, belt loading machine, feeding machine, rotary roller, belt discharger, draft fan, discharger, and switch board.
Coal gangue drying machine application:
Coal gangue drying machine can dry coal slurry, raw coal, flotation cleaned coal, mixed clean coal, etc.
For coal industry, drying of blast furnace slag, clay, limestone, sand, quartz stone, etc.
For building industry, drying of metal ore concentrate, waste residue, tails, etc.
For beneficiation industry, non thermo-sensitive substance drying
Coal gangue drying machine working principle:
Due to the stickiness of the coal slurry, it can be divided into several working areas.
First, guide area where the wet coal slurry meets the hyperthermia hot air and its moisture evaporates fast. As the material is stirred by the shoveling plate of the big lead angle, the bonding can not be formed and was sent to another working area.
Second, cleaning area where the wet coal slurry is raised by the shoveling plate and become the material curtain type. So as the material drops down, it is likely to be bound with the rotary drum wall which can be cleaned by the cleaning device reasonable. In this process, the cleaning device can break the clotting which increases the heat exchange area thus improves the drying speed.
Third, slant flitch area where is wet slurry is in the state of low moisture and loose condition. The material here won't bond. After the heat exchange the material meet the moisture condition demand, and then goes to the last area-discharging area. There is no shoveling plate here. The material rolls and slides to the dumping mouth and the whole drying process are finished.
Coal gangue drying machine plant:
Derui service:
Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
Warranty: one year (not include man-made damaged).
In order to help you to recommend suitable Coal gangue drying machine, can you tell me the following information in your inquiry?
1. What is the material you want to dry?
2. What is the moisture of the feed materials?
3. What is the final moisture you want to get?
4.What is the hear source?(firewood, coal, heat gas or electricity)
4. What is the production capacity per hour or per day?
Derui machinery Co.,Ltd is located in Zhengzhou,Henan province, China(Mainland).Our main product include following:
Rotary kiln equipment: cement rotary kiln, lime rotary kiln, bauxite rotary kiln, rotary kiln, etc.
Dryer equipment: Rotary dryer, silica sand rotary dryer, sawdust dryer, mineral rotary dryer, slag rotary dryer, Coal gangue dryer, etc.
Stone crusher series: jaw crusher, impact crusher, cone crusher, etc.
Beneficiation equipment series : gold flotation machine, spiral classifier, rotary dryer, etc.
Grinding mill series: ball mill, raymond mill, rod ball mill, etc.
Feeding and screening equipment series: vibrating screen, vibrating feeder, etc.
Accessory equipment: belt conveyor, bucket elevator, screw conveyor, coal powder spraying machine, etc.
