Limestone rotary dryer, limestone drying machine, limestone drying equipment

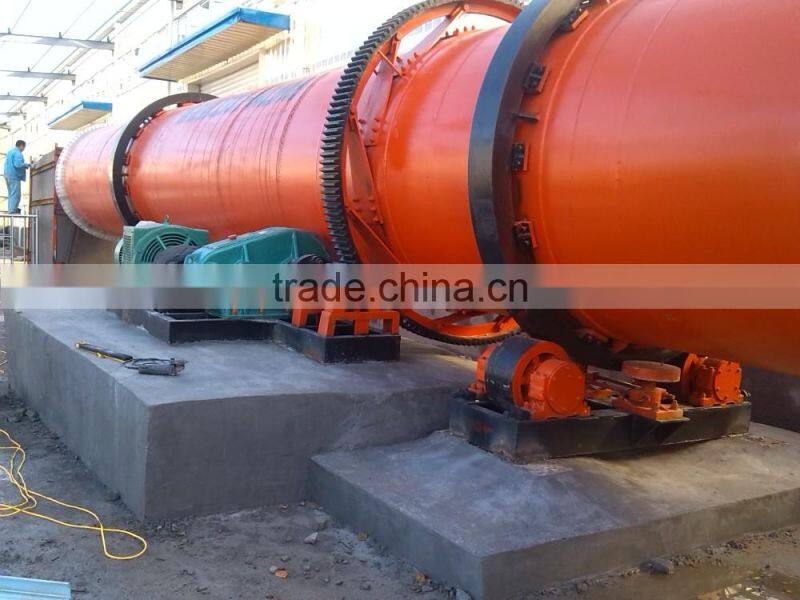

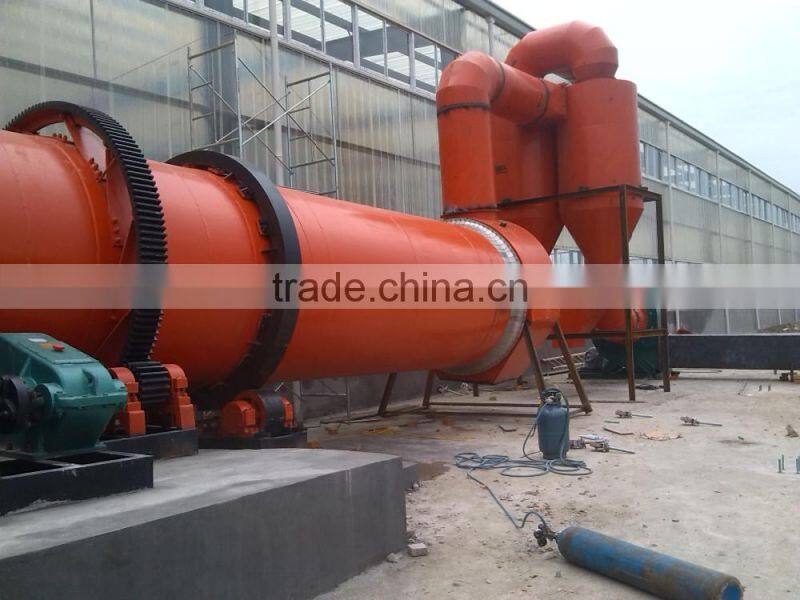

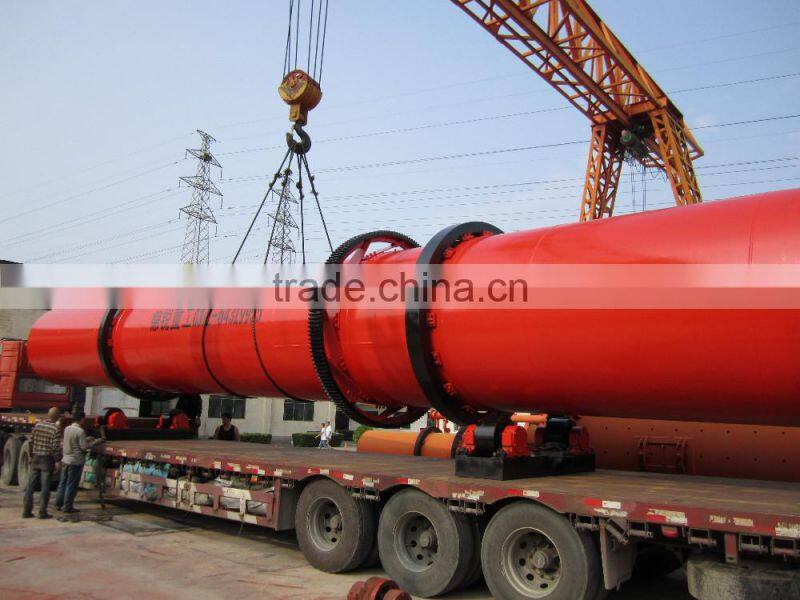

1.Picture of Limestone drying machine:
Limestone drying machine is a type of industrial dryer employed to reduce or minimize the liquid moisture content of the material, it is handled by
bringing it into direct contact with a heated gas.
2.Description of Limestone drying machine:
Limestone drying machine is widely used for drying materials in the industries of cement, mine, construction, chemical, food, compound fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C).
| Model | HZG1500*12000mm |
| Color | Orange, gray or as customer required |
| Application | Building materials,metallurgy,chemical plant, cement plant |
| Drying materials | Biomass, ore, metal, chemical industry, fertilizer, agriculture |
| Structure | rotary body, raw material feeding plate, driving and supporting device,sealing ring |
| Main market | America, india, Italy, iran, brazil, etc. |

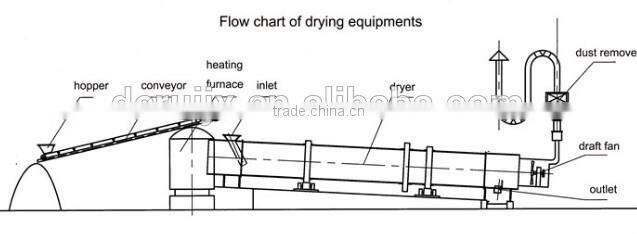

3.Limestone drying machine Working Principle

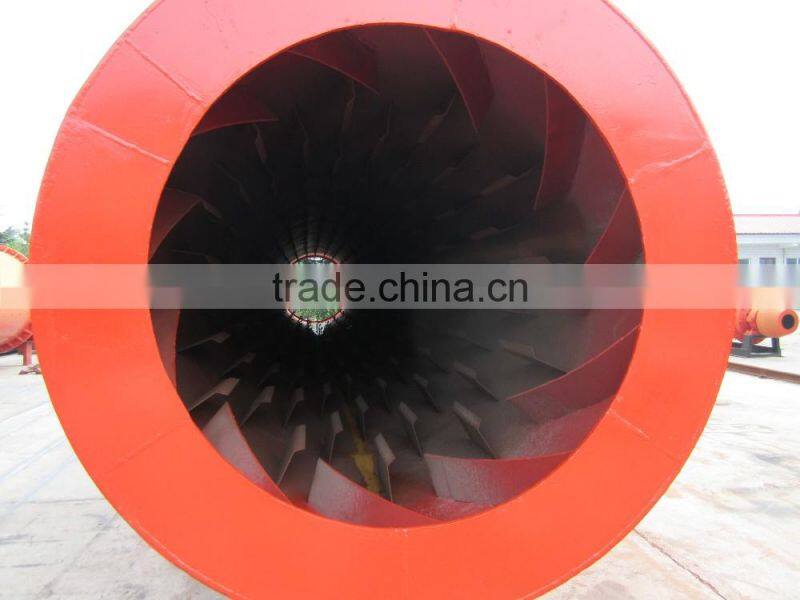

Limestone drying machine adopts direct flow type of heating with heat source from firing unit. The material to be dried is pushed back immediately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.

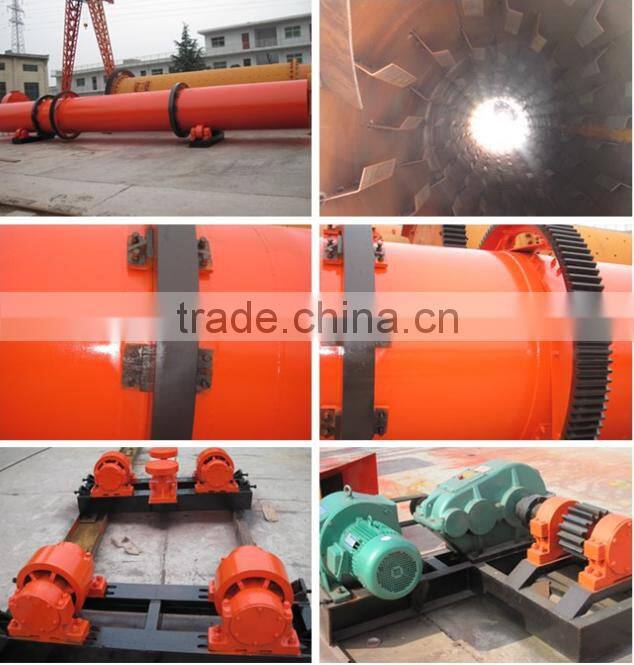

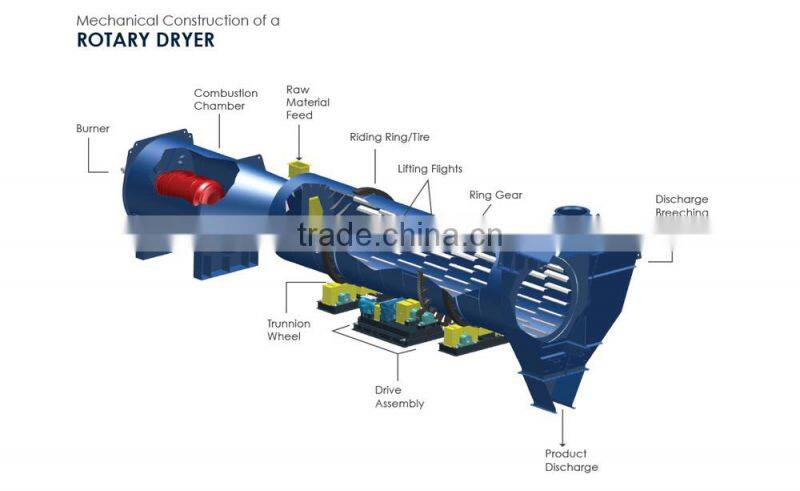

4.structure of Limestone drying machine:
Limestone drying machine is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.
Limestone drying machine technical parameter:
| Model(m)D*L | Volume(m³) | Speed(r/min) | Tilt(°) | Motor | Power(kw) | Reducer model | Weight(t) |
| HZG1*10 | 7.85 | 3-7 | 3-5 | Y132M2-6 | 4 | JZQ400 | 7.5 |
| HZG 1.2*10 | 11.31 | 3-7 | 3-5 | Y160M-6 | 7.5 | JZQ500 | 9.25 |
| HZG 1.2*12 | 13.75 | 3-7 | 3-5 | Y160M-6 | 7.5 | JZQ500 | 10.3 |
| HZG 1.5*12 | 21.2 | 3-7 | 3-5 | Y280L-6 | 15 | JZQ650 | 17.13 |
| HZG 1.5*14 | 24.9 | 3-7 | 3-5 | Y180L-6 | 15 | JZQ650 | 18.33 |
| HZG 1.8*14 | 35.1 | 3-7 | 5 | Y200L-6 | 18.5 | JZQ650 | 20.85 |
| HZG 1.8*18 | 45.8 | 3-7 | 5 | Y200L-6 | 22 | JZQ650 | 22.3 |
| HZG 2.2*14 | 53.2 | 3-7 | 4.4 | Y200L-6 | 22 | JZQ750 | 32.23 |
| HZG 2.2*18 | 68.4 | 3-7 | 4.4 | Y225M-6 | 30 | JZQ750 | 34.15 |
| HZG 2.2*20 | 70 | 3-7 | 4.4 | Y225M-6 | 30 | JZQ750 | 36.07 |
| HZG 2.4*14 | 63.3 | 3-7 | 3.83 | Y225M-6 | 30 | JZQ850 | 39.9 |
| HZG 2.4*24 | 97 | 3-7 | 5 | Y225M-6 | 55 | JZQ850 | 70 |
| HZG 2.8*14 | 86 | 3-7 | 4 | Y225M-6 | 40 | JZQ850 | 71 |
| HZG 2.8*18 | 110 | 3-7 | 4 | Y225M-6 | 40 | JZQ850 | 75 |
| HZG 3*25 | 176.5 | 3-7 | 5 | Y225M-6 | 75 | JZQ900 | 110 |
5.Trade Item of Limestone drying machine:
| MOQ | 1 set |
| Delivery term | FOB,CIF,CFR,EXW |
| Delivery time | Within 30 working days afer confirming the order |
| Payment term | L/C, TT |
| Supply ability | 20 sets per month |
| Shipping port | Qingdao, Shanghai, Tianjin, Lianyungang |

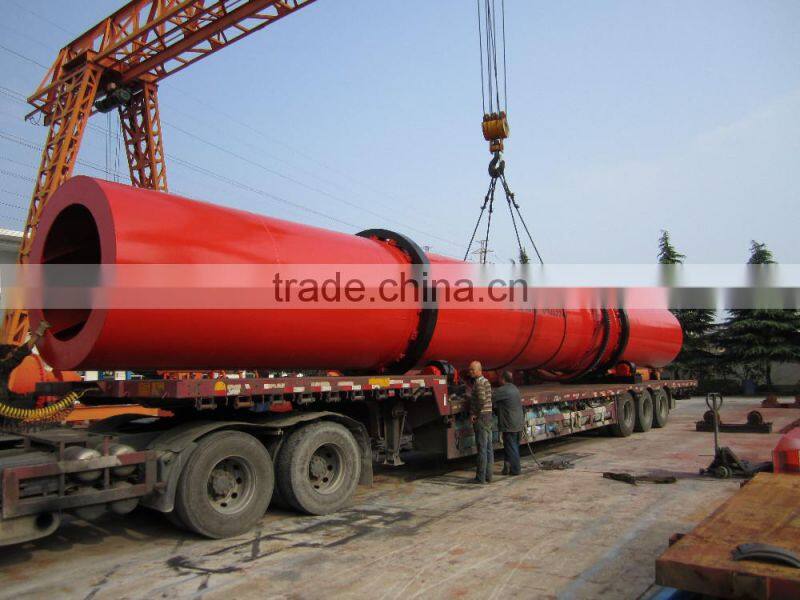

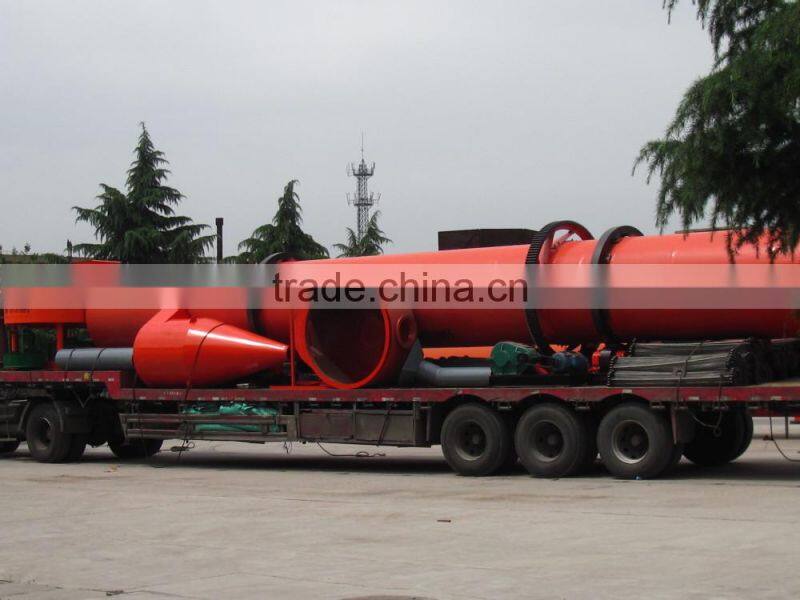

Limestone drying machine shipping:
6.Introduction of Derui Machinery:
Business Type:Manufacturer, Trading Company
Location:Zhengzhou, China (Mainland)
Year Established:2004
Our philosophy is to provide our clients with a wide choice of quality products and unprecedented services. We assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed organization.
Our main product include:rotary kiln, ball mill, dryer equipment, Limestone drying machine,crusher, mineral processing equipment, etc.
Rotary Dryer Warranty:
1. One year(Calculated from the goods arrived the destination port.) If any parts (excluding easily damaging parts) are found defective in quality in the first year, we shall replace it free-of-cost. After one year, parts can be replaced on favorable payment basis. We can send our engineer to provide the installation and trial run in your place. But the relevant cost shall be bear in your account (round trip air ticket, board and lodging).
2. Our professional service includes: Free training, Guidance Installation and Debugging.
3. If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
