Clay dryer of bentonite drying machine for clay production line
Introduction of Bentonite drying machine :
Bentonite drying machine is suitable for drying bentonite and kaolin clay.

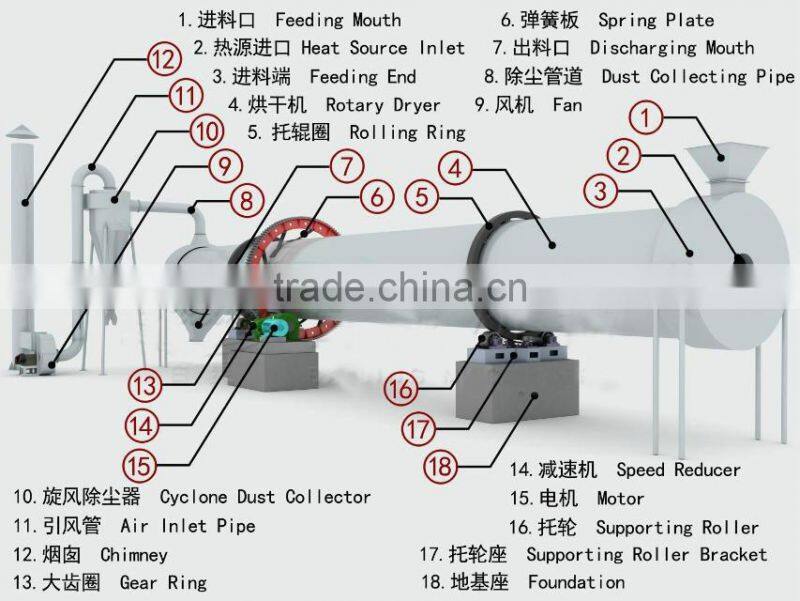

Structure of Bentonite drying machine :
Bentonite drying machine is mainly composed of heat source, feeding equipment, feeder, rotary drum, discharging equipment, raw material crushing device, induced draft fan, unloader and power distribution cabinet.After the dewatered wet material feeding into dryer, the material will be in fully touch with hot air under the flipping of the board, which accelerates drying heat transfer and mass transfer.
Technical parameter of Bentonite drying machine :
Model(D*L)(mm) |
HZG800*8000 |
HZG1000*10000 |
HZG1200*12000 |
HZG1500*15000 |
Volume |
4-5m³ |
7.82m³ |
13.75 m³ |
24.9 m³ |
Rotate speed |
4-9r/min |
3-7 r/min |
3-7 r/min |
3-7 r/min |
Tilt | 3-5° | 3-5° | 3-5° | 3-5° |
Motor model | Y132M2-6 | Y132M2-6 | Y160M-6 | Y180L-6 |
Power | 3kw | 4 kw | 7.5kw | 15kw |
Reducer model | JZQ 350 | JZQ 400 | JZQ 500 | JZQ650 |
Weight | 2.2t | 7.5t | 10.3t | 18.33t |
Materials can be dried by Bentonite drying machine :
Biomass: sawdust, wood chips, wood veneer
Ore: ore slag, mineral power, limestone, quartz, fluorite powder, sand, iron ore, metal ore concentrates, metal tailings, coal , etc.
Metal: metal powder, iron powder, iron filings, steel scrap, copper filings, etc.
Chemical industry: gypsum powder of desulphurization gypsum stir-frying half water model and building gypsum powder, clay, diatomaceous earth, bauxite
Fertilizer: compound fertilizer, organic fertilizers, inorganic fertilizers, ammonium sulfate fertilizer
Agriculture: straw, grass, turf, animal manure, beans waste
Bentonite drying machine shipping:
In order to help you to recommend suitable Bentonite drying machine , can you tell me the following information in your inquiry?
1. What is the material you want to dry?
2. What is the moisture of the feed materials?
3. What is the final moisture you want to get?
4.What is the hear source?(firewood, coal, heat gas or electricity)
4. What is the production capacity per hour or per day?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
