lead zinc ore grinding machine/lead zinc ore grinding equipment/lead zinc ore powder machine
Lead ore:
lead zinc ore grinding machine production line:
Zinc lead ore------Jaw crusher------Fine crusher------stock bin------feeder------mine mill------screw classifier------mixing barrel------flotation machine(lead powder)------mixing barrel------flotation machine(zinc ore)
lead zinc ore grinding machine (ball grinding mill) is an important equipment used for recrushing, mainly used in cement, silicate products, new building materials, refractory, fertilizer, black and non-ferrous metal processing and production industries and glass-ceramic.

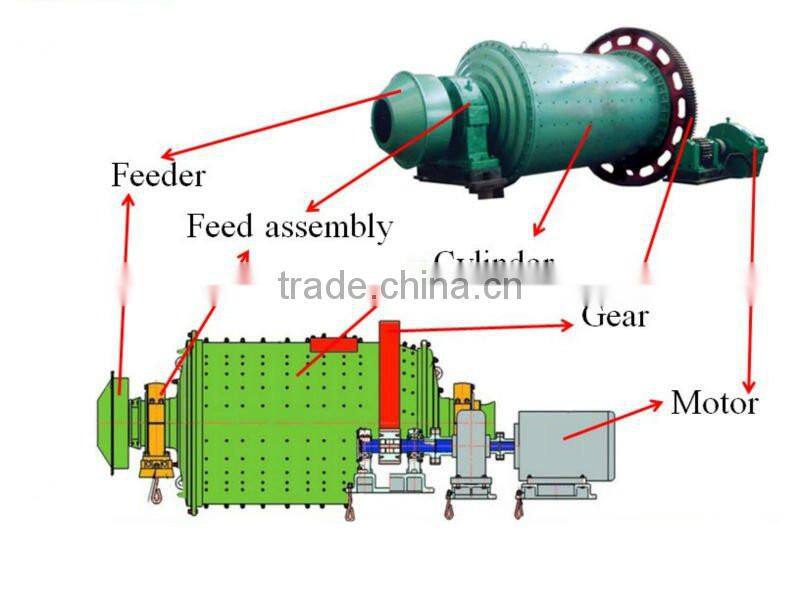

Structure: lead zinc ore grinding machine is composed by feeding part, discharging part, rotation part and driving part (reducer, small driving gear, electric motor and electric control).
lead zinc ore grinding machine working principles:
The electro motor drives the cylinder to rotate through the reducer, and the broken ore and the steel balls inside the cylinder are brought by the lining board to a certain height under the frictional force and eccentric force produced by the rotation of the cylinder. Due to the action of gravity, the ores will drop and are gradually crushed under the impacting and grinding effect and the crushed ores will be discharged out of the cylinder through the discharging part. The discharged ores are classified by the spiral classifier, and the coarse sand will go back to mine mill from the joint feeding machine to be ground again. The feeding machine continuously and evenly feeds materials, and the ores will continuously and evenly go into the mine mill through the joint feeding machine, and the ground materials will be continuously discharged from mine mill. For this reason, mine mill is a powder grinding machine that can continuously work for 24 hours every day.
lead zinc ore grinding machine technical parameters:
| Model(D*L) | Rotation speed(r/min) | Steel ball quantity(t) | Feeding material size(mm) | Discharging material size(mm) | Output | Motor power(kw) | Weight(t) |
| (t/h) | |||||||
| 900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 15 | 3.6 |
| 900×3000 | 41 | 1.7 | ≤15 | 0.075-0.83 | 1.1-3.5 | 22 | 4.5 |
| 1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.7 | 30 | 11.5 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.6 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 17 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 185 | 35 |
| 1830×7000 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 26 | 22 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 38 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Customized | 800 | 137 |
lead zinc ore grinding machine shipping:
Derui services:
Installation and guidance:When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client’s factory. Allowance is about 70USD per day.
Technical training:We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
Warranty: one year (not include man-made damaged).
Derui introduction:
Derui machinery Co., Ltd. is a China-based high-technology heavy machinery manufacturer, which engaged in R&D, production and sales of machinery. Our main products include mine mill, rotary kiln, mineral processing equipment, dryer equipment, stone crusher machine, sand and stone production line.
Mine mill include:ball mill, rod mill, mine mill,lattice-type ball mill, raw materials mill, coal mill, lead zinc ore grinding machine,etc.
In order to give you an accurate quotation about lead zinc ore grinding machine, please tell us the following information:
1. What is your raw material to be grind?
Iron ore, gold ore, copper ore, or others.
2. What is the maximum feeding size of your raw material?
3. What are output sizes you want?
Usually for the mineral processing 60% 200mesh,for the cement grinding 350mesh.
4. What is the capacity you want? How many tons per hour? Wet type or dry type?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
