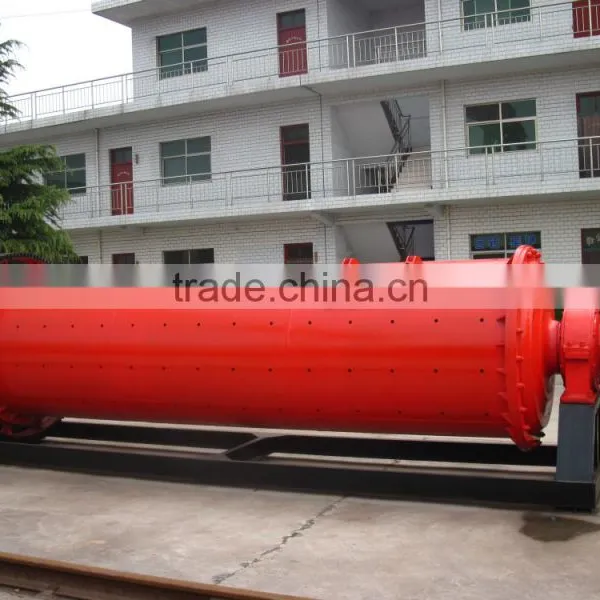

Bauxite grinding machine for bauxite clay production line
Bauxite grinding machine is a type of grinding machine used to grind materials into extremely fine powder.
Bauxite grinding machine is the key equipment for grinding crushed materials, and it is widely used in production lines for powders
such as cement, silicates, refractory material, fertilizer, glass ceramics, etc. as well as for ore dressing of both ferrous and
non-ferrous metals.

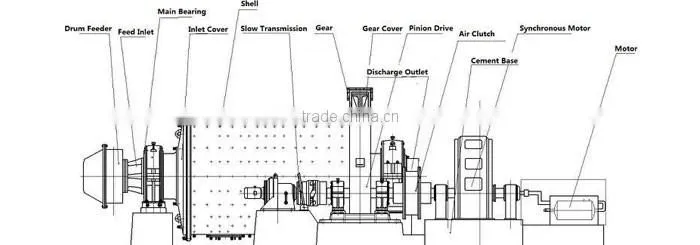

Bauxite grinding machine is composed of the feeding part, discharging part, turning part and driving part (reducer, small transmission gear, motors,
electrical control) and other components.
Bauxite grinding machine technical parameter:
| Model(D*L) | Rotation speed(r/min) | Steel ball quantity(t) | Feeding material size(mm) | Discharging material size(mm) | Output | Motor power(kw) | Weight(t) |
| (t/h) | |||||||
| 900×1800 | 42 | 1.4 | ≤20 | 0.075-0.89 | 0.65-2 | 15 | 3.6 |
| 900×3000 | 41 | 1.7 | ≤15 | 0.075-0.83 | 1.1-3.5 | 22 | 4.5 |
| 1200×2400 | 36 | 3.5 | ≤25 | 0.075-0.6 | 1.5-4.7 | 30 | 11.5 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 12.6 |
| 1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 13.8 |
| 1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 17 |
| 1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
| 1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 24.7 |
| 1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 28 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 185 | 35 |
| 1830×7000 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 26 | 22 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 38 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 34 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 7-50 | 245 | 54 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Customized | 800 | 137 |

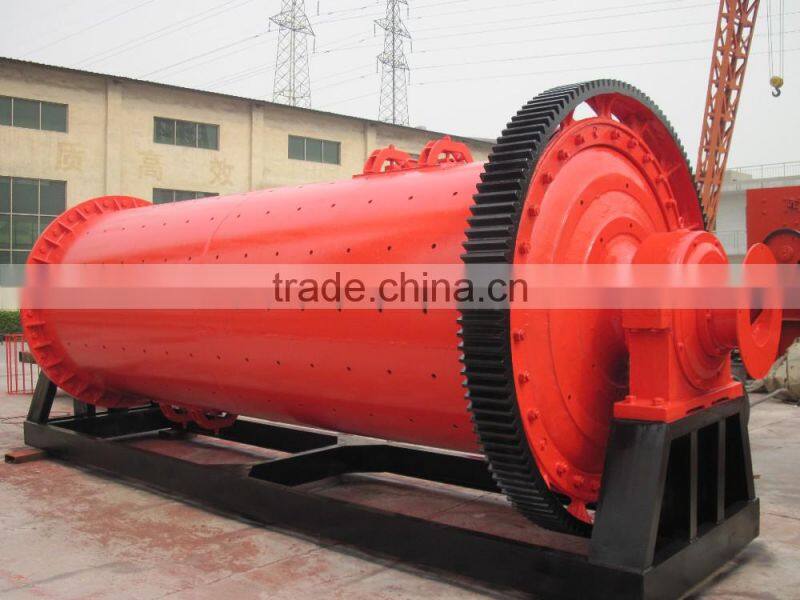

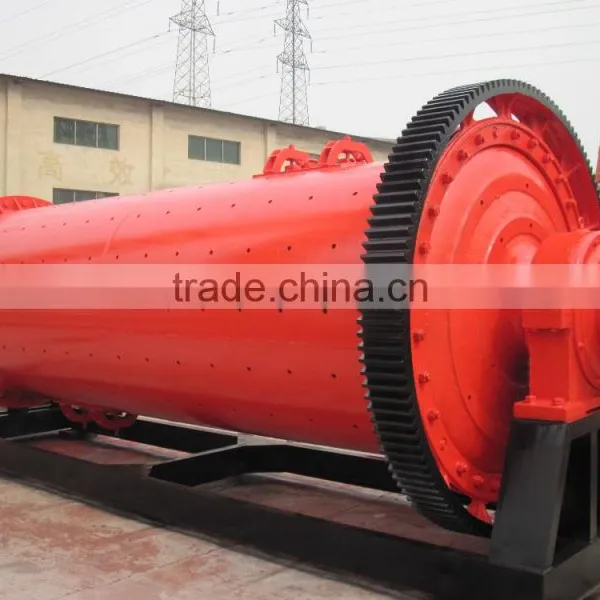

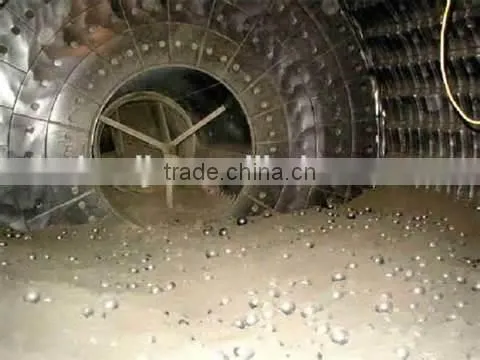

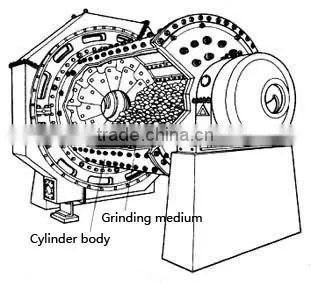

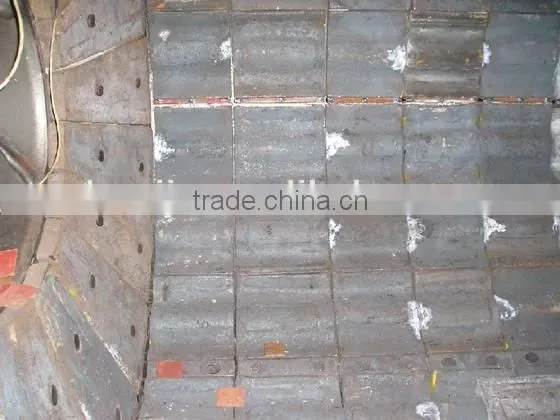

Bauxite grinding machine consists of a hollow cylindrical shell rotating about its axis. The axis of the shell may be either horizontal or at a
small angle to the horizontal. it is partially filled with balls.

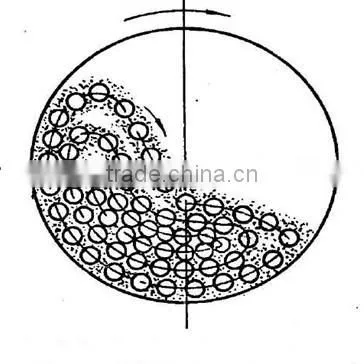

Working principle: Bauxite grinding machine works on the principle of impact: size reduction is done by impact as the balls drop from near
the top of the shell.
In case of continuously operated Bauxite grinding machine the material to be ground is fed from the left through 60° cone and the product is
discharged through a 30° cone to the right. As the shell rotates, the balls are lifted up on the rising side of the shell and then
they cascade down (or drop down on to the feed), from near the top of the shell. In doing so, the solid particles in between
the balls are ground and reduced in size by impact.
Application of Bauxite grinding machine:

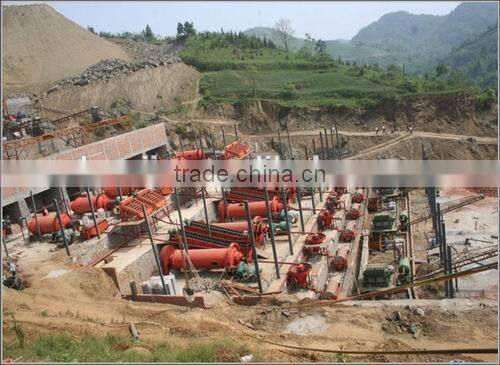

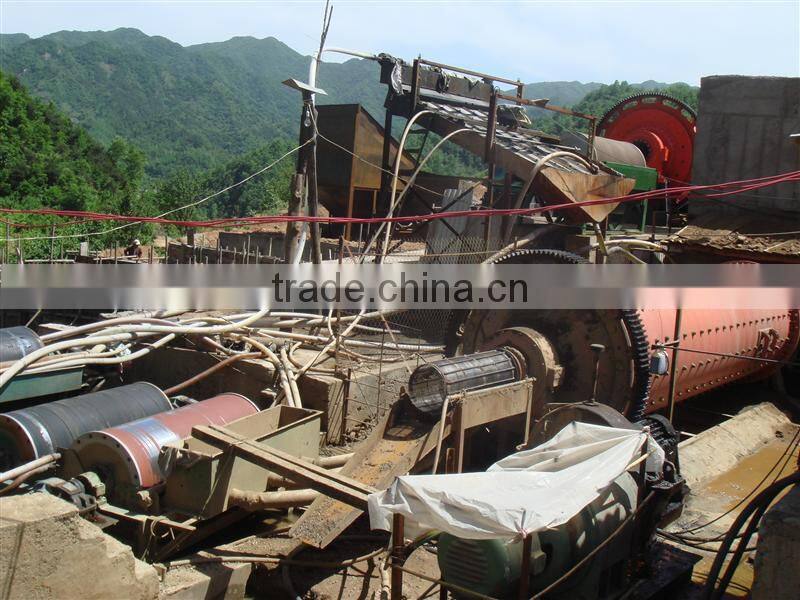

Bauxite grinding machine in ore dressing process:
Raw ore material ---> Storage bin ---> Vibrating feeder ---> Jaw crusher ---> PEX jaw crusher --->Vibrating screen ---> Storage bin
---> Electromagnetic vibrating feeder --->Ball mill --->Spiral classifier ---> Gravity separator or magnetic separator or flotation
separator ---> Concentrator ---> Rotary dryer ---> Dry concentrate

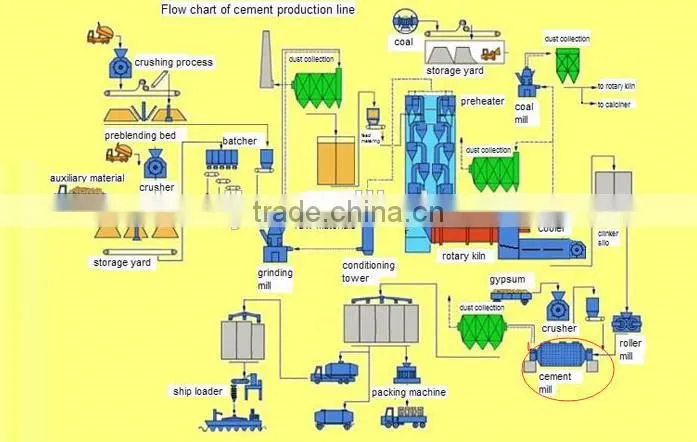

Bauxite grinding machine in Cement production's process:
Cement Crusher -->Preparation of raw material --> Raw material homogenization -->Preheat decomposition --> The burning of
cement clinker-- > Cement grinding mill (Ball Mill)> Cement Packaging.
Packaging and shipping of Bauxite grinding machine:
Packaging
1.Sand blasting, coated with high quality paint
2.Nude packing or load container for main machines
3.Motors and spare parts in plywood cases

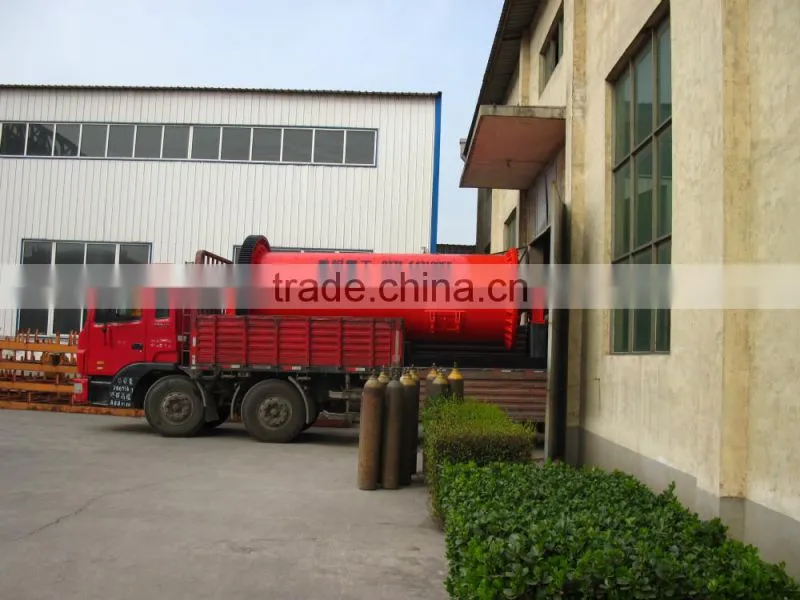

Shipping
1.FOB port: Qingdao, Tianjin, or as your requirement
2.Delivery date: Within 30-45 working days
3.We will remind you before boat arrival
Payment term of Bauxite grinding machine:
1. We usually accept TT, L/C.
2. TT: 30% in advance as down payment, the balance before delivery
3. We take pictures of finished products before delivery.
Gongyi Derui Machinery Co.,Ltd
Business Type:Manufacturer
Location:Zhengzhou, China (Mainland)
Year Established:2004
Our main product include: Rotary kiln, Bauxite grinding machine, rotary dryer equipment, stone crusher, mineral processing equipment, etc.
In order to give you an accurate quotation about Bauxite grinding machine, please tell us the following information:
1. What is your raw material to be grind?
Iron ore, gold ore, copper ore, or others.
2. What is the maximum feeding size of your raw material?
3. What are output sizes you want?
Usually for the mineral processing 60% 200mesh,for the cement grinding 350mesh.
4. What is the capacity you want? How many tons per hour? Wet type or dry type?
How to visit us ?
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
