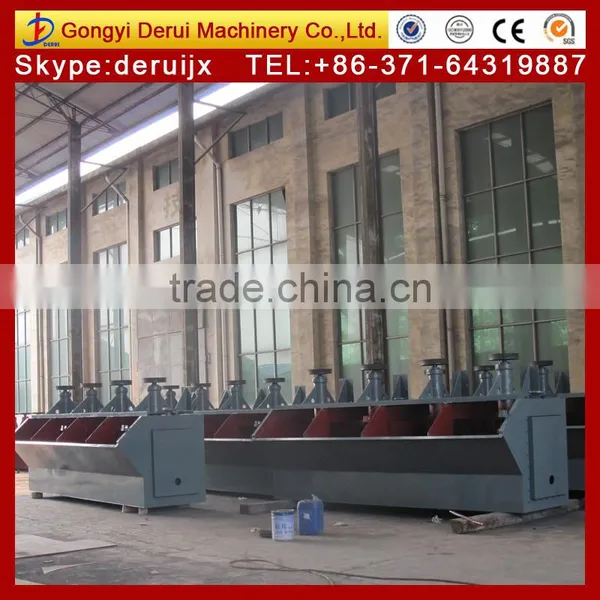

Gold flotation tank for gold recovery

Gold flotation tank for gold recovery

Gold has three categories, gold ore (Mountain gold mine, endogenous gold) and gold placer (alluvial, alluvial, beach type, slope deposits type and exogenous gold) and Associated gold (recovery from the non-ferrous minerals )

Flotation tank or flotation separator is a machine that is used for completing the flotation separation process. Inside the flotation cells, the ore pulp processed with reagent is mixed and inflated with air to make some ore particles selectively adhere to the bubbles. Then the bubbles will float to the surface of the ore pulp and be scraped out to become froth pulp and the rest will remain in the ore pulp, thus reaching the aim of separating the minerals.

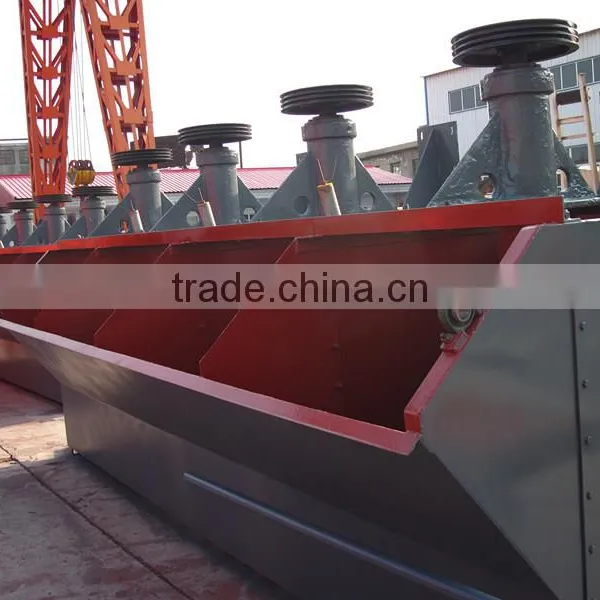

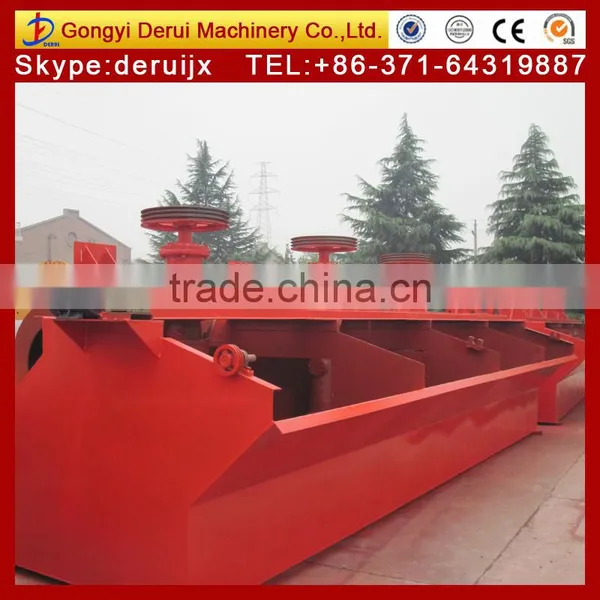

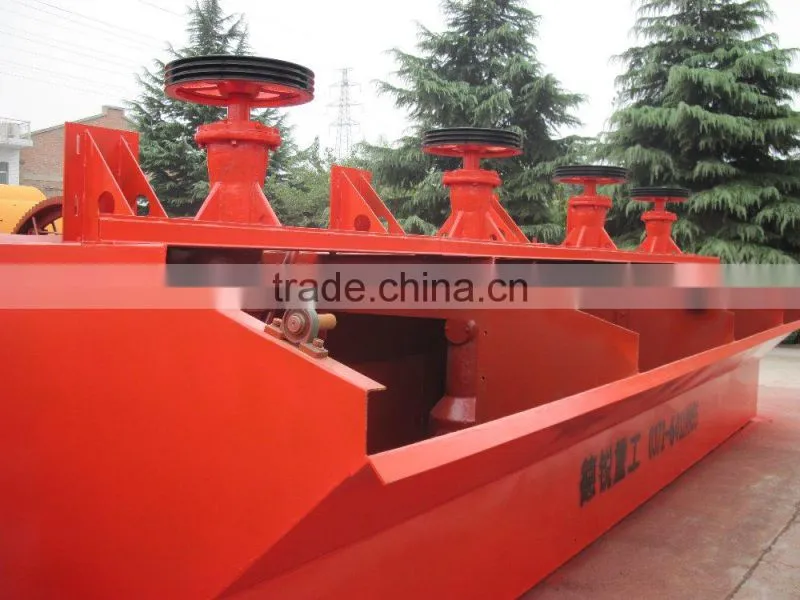

 Structure of flotation tank:

1).An impeller is equipped with a backward-type double-sided blade, thus the double-loop of the pulp in tank can be realized
2).There is a larger space between the impeller and the cover plate, and so the inspiratory is giant.
3).The impeller circumferential velocity is low, so the wearing parts’ life span is long.
4).The tank is forward-style, the dead angles are small, and the bubble velocity is fast.

Working Principle of SF flotation tank:

Mix the mashed rocks with water and necessary reagent in the mixing chute, and inject them to the pulp chute. Lead air to the pulp to make it form large quantities of bubbles, and some mineral particles that are difficult to get moist in water and that are generally called hydrophobic mineral particles will stick on the bubbles and float with the bubbles to the surface of the pulp to form mineralized bubble layer, and some other mineral particles that are easy to get moist in water and that are called hydrophilic mineral particles do not stick on the bubbles but stay in the pulp to discharge the mineralized bubbles containing specific minerals, thus completing the separation process.

Flotation tank technical parameter:

Flotation tank for gold:

Gold Flotation Process:

Gold mineral flotation normally adopts one stage grinding-flotation process, but stages grinding and flotation for ore with uneven distribution.

Grinding fineness of gold:

For the gold wrapped in sulfide minerals, sulfide ore reaches monomer dissociation; but for the gold with gangue, grinding fineness should reach gold monomer dissociation. Grinding fineness of minerals is determined by test.

Concentration of gold flotation process:

Flotation for large density and coarse particle needs thick pulp, whereas for small density and fine particle, need dilute pulp

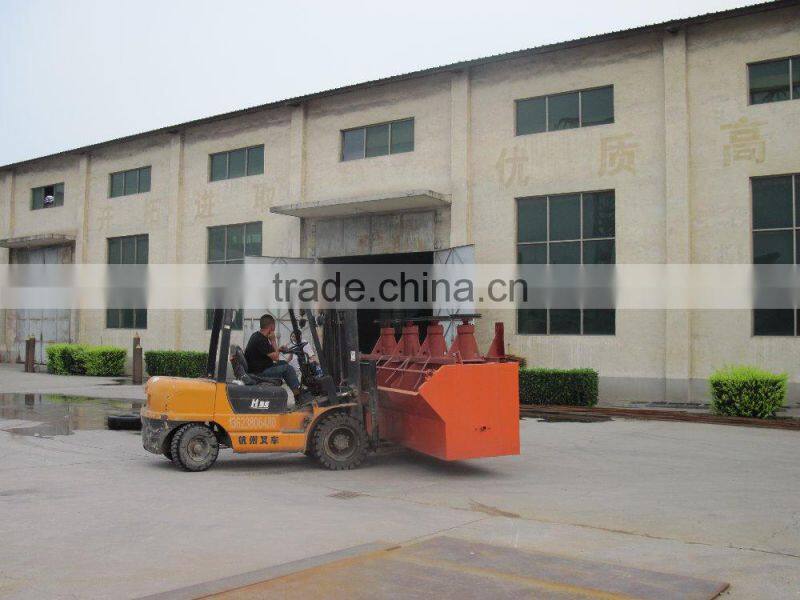

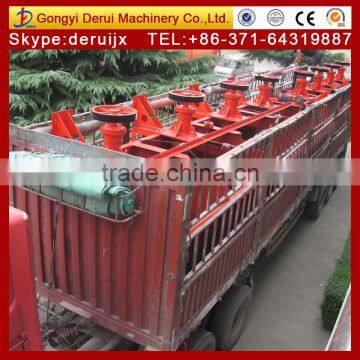

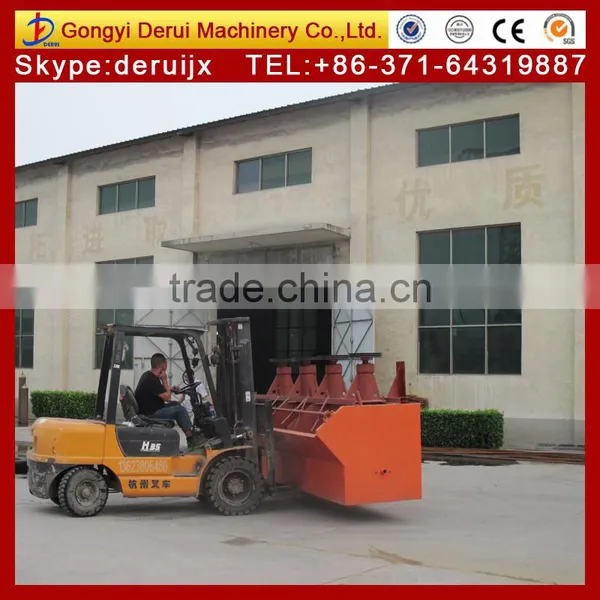

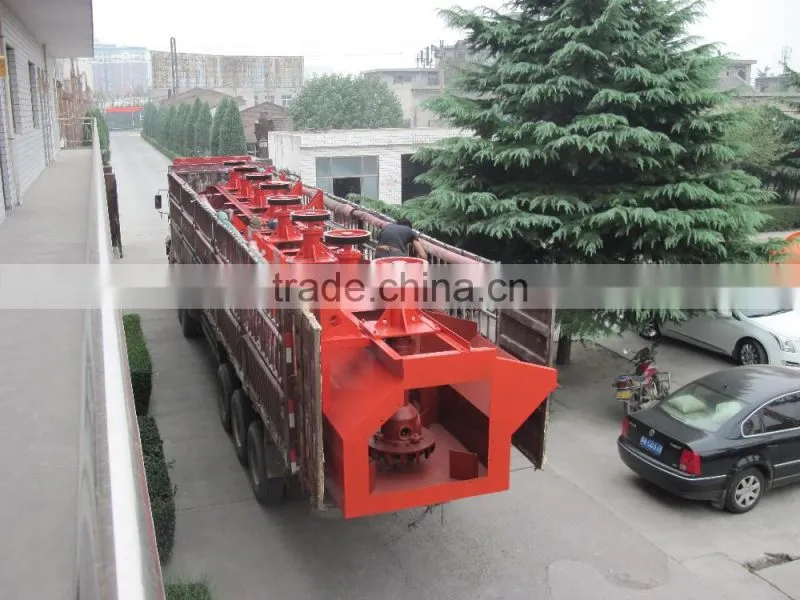

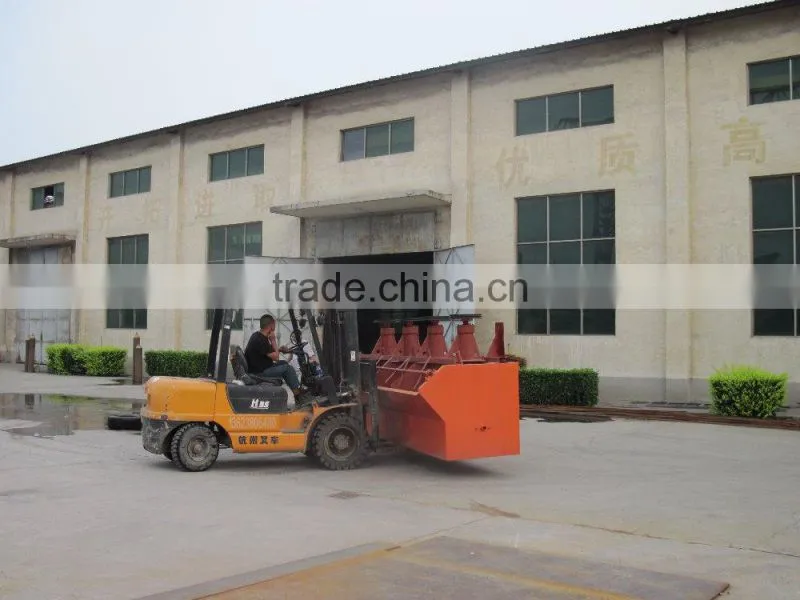

Flotation tank shipping:

Application of flotation tank:
Flotation tank is widely used for roughing, concentrating and counter-flotation of nonferrous metal that includes copper, lead, zinc, nickel and molybdenum, ferrous metal and nonmetallic mineral.
