Continuous carbonization burner of carbonization equipment for clothing scraps
- 10 Set / Sets per Month
- Qingdao shanghai tianjin
- T/T Credit Card
- Simple and convenient operation carbonization furnace for charcoal
- Factory Price Continuous Type Smokeless Rotary Carbonization Furnace / Coconut Shell Biochar Charcoal Making Machine
- High profit hoisting carbonization furnace wood carbonization furnace biochar machine
- High quality carbonization furnace coconut shell charcoal making machine
- High output rotary type carbonization furnace making machine charcoal compressed
- Hoist Type BBQ Wood Biochar Charcoal Continuous Carbonization Furnace Chamber
Product Details
Condition: | New | Type: | Air Flow | Application: | Rice Husk |
Place of Origin: | Henan, China | Brand Name: | Derui | Model Number: | CBN426-5 |
Effective Volume: | 7*1.1*3.5m | Dimension(L*W*H): | 15*10*6m | Weight: | according to model |
Voltage: | 380V | Power(W): | 3kw | Certification: | ISO |
Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Continuous carbonization burner of carbonization equipment for clothing scraps

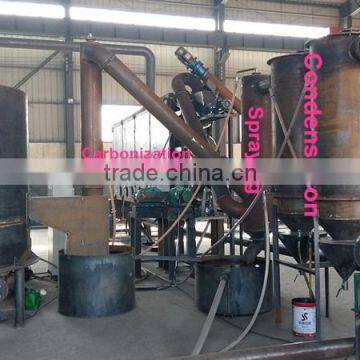

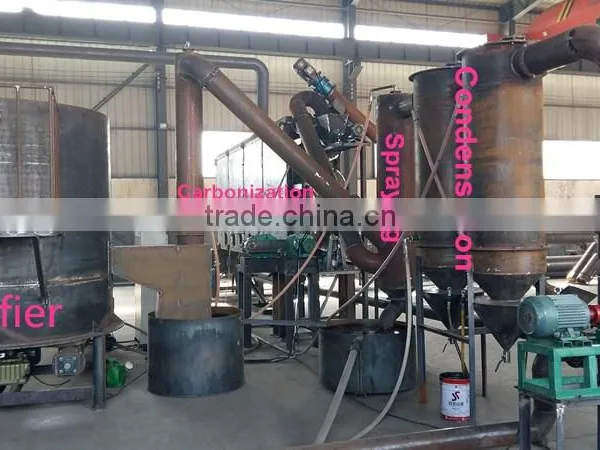

Carbonization equipment introduction:
Carbonization equipment consists of feeding system, carbonization systems (hosts and coal discharging equipment),
purification systems, condensate systems, heating systems (gasifier),etc.
Raw materials for making carbon:
Wood materials: sawdust, wood chips, rice husks, peanut shells, Stick, plant stalks, bark, scrap, firewood, bamboo wood shavings
and other carbon-containing material (diameter 15mm or less granular)
Nutshell: almond shells, coconut, peach shell, palm shell
Carbonization equipment working process:
1.Agricultural and forestry waste enter into gasfier, produced flammable gas send by high pressure fan into spray filter,After
cooling by condenser, then gonging to burner at the bottom of carbonization equipment.
2.When Pipe temperature reach the demand for carbonization, materials conveyed by feeding conveyor to top feeder , top feeder
carried materials into top high temperature tube for drying, by rotation tube and screw device inside tube, materials walking from
one end to the other end, then middle feeder, middle high temperature pipe, bottom feeder, bottom high temperature pipe.
3.By using flammable gas produced during carbonization, heat source recycling(close gasfier ).
4.Carbon powder cooled by carbon-discharging machine, discharged from bottom, then send to warehouse.During carbonization, by using condenser for recycling
wood vinegar fluid and wood tar oil.
Carbonization equipment technical parameter:
Production capacity: 3-5t / d
Host Power: 3kw
Host feed power: 1.5kw × 2
The conveying power: 3kw
Coal discharing machine power: 3kw
Gasifier slag off power: 3kw
Carbon machine of gasifier power: 3kw
Floor space: 15m × 10m × 6m (L × W × H)
Wearing parts: 20 × 20 pure graphite parts , carbon discharging parts, feeding screw blades, burners.
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
