Nut shell carbonization machine for walnut shell and peanut shell
Carbonization machine mainly used for making sawdust and rice husk carbon.
Raw materials for making carbon:
Wood materials: sawdust, wood chips, rice husks, peanut shells, Stick, plant stalks, bark, scrap, firewood, bamboo wood shavings
and other carbon-containing material (diameter 15mm or less granular)
Nutshell: almond shells, coconut, peach shell, palm shell

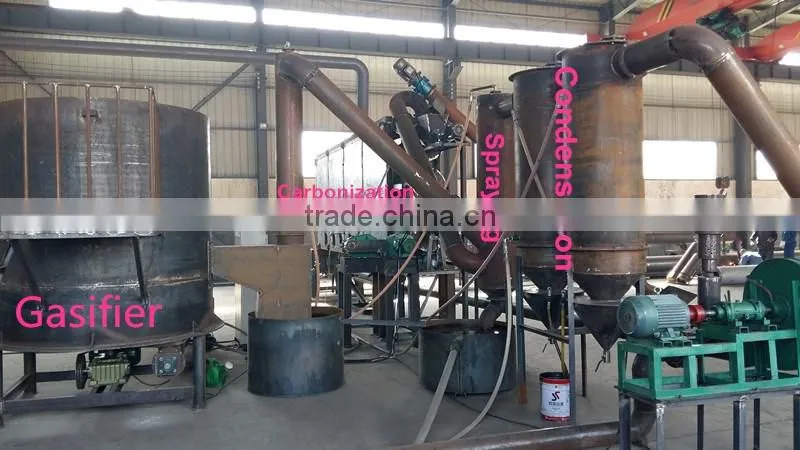

Carbonization machine consists of feeding system, carbonization systems (hosts and coal discharging equipment),
purification systems, condensate systems, heating systems (gasifier),etc.
Carbonization machine technical parameter:
Production capacity: 3-5t / d
Host Power: 3kw
Host feed power: 1.5kw × 2
The conveying power: 3kw
Coal discharing machine power: 3kw
Gasifier slag off power: 3kw
Carbon machine of gasifier power: 3kw
Floor space: 15m × 10m × 6m (L × W × H)
Wearing parts: 20 × 20 pure graphite parts , carbon discharging parts, feeding screw blades, burners.
How to start carbonization furnace?
1.Circulating pump open
2.Host open
3.Top feeder open
4.Middle feeder open
5.Carbon discharging open
6.Open gasfier butterfly valve and outdoor exhaust valve(host pipe butterfly valve, adjustable-temperature burner butterfly valve, host burner butterfly valve are closed)
7.Open fan, start gasfier
8.1-2 minutes later, open temperature-controlling burner valve, burner begin to work,close exhaust valve.when burner work normally, open host burner valves, ignite the burner groups, close temperature-controlling burner valve.
9.According to different materials, when reached the required temperature for carbonization, carbonization furnace feeder begin to work, at same time, open carbonization furnace valve a little gap(recycling flammable gas in pipeline), open carbonization furnace valve step by step, close gasifier valve step by step, when gas can meet self demand, close gasifier valve.When temperature is too high, ignite temperature controlling burner, close fan to decrease temperature.
How to close carbonization furnace?
1.Close feeder( make sure no materials left)
2.Close fan
3.Close top feeder
4.Close middle feeder
5.Close carbon-discharging equipment
6.When temperature fall to 300℃,close host
7.Close pump
8.Stop power supply
9.Sealing top of gasifier and discharging gate of gasfier
10.Carbon powder storage( make sure safe, avoid fire)

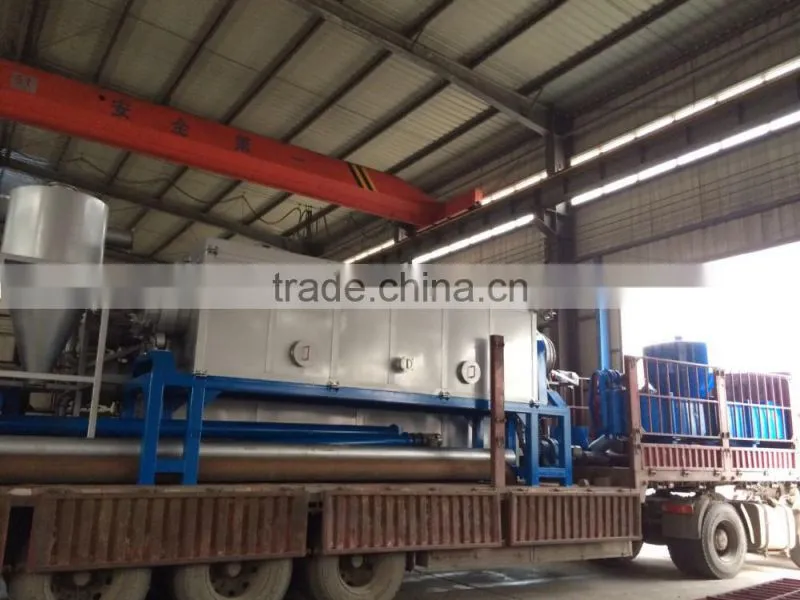

Carbonization machine shipping:
Application of Carbonization equipment finial product:
Industrial areas:
metallurgy, suitable for the production of high quality steel.
Chemical
Medicine;
Cosmetics;
environmental protection.
The agricultural sector:
Increasing soil temperature, promote seed germination.
Keep the soil moisture.
As release agent for pesticide or fertilizer
The carbon can also change soil pH
Areas of daily life:
As fuel for heating, barbecue, hot pot
Charcoal can eliminate room odors and harmful substances.
Charcoal can also help preserve food, also as refrigerator deodorant
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
