Carbonization machine for pine nut shell and walnut shell

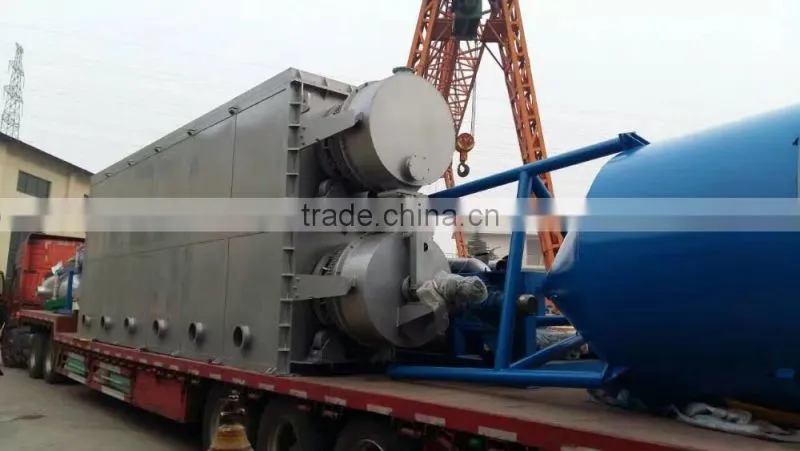

Three layers carbonization machine introduction:
carbonization machine consists of feeding system, carbonization systems (hosts and coal discharging equipment),
purification systems, condensate systems, heating systems (gasifier),etc.
Raw materials for making carbon:
Wood materials: sawdust, wood chips, rice husks, peanut shells, Stick, plant stalks, bark, scrap, firewood, bamboo wood shavings
and other carbon-containing material (diameter 15mm or less granular)
Nutshell: almond shells, coconut, peach shell, palm shell
carbonization machine working process:
1.Agricultural and forestry waste enter into gasfier, produced flammable gas send by high pressure fan into spray filter,After cooling
by condenser, then gonging to burner at the bottom of carbonization equipment.
2.When Pipe temperature reach the demand for carbonization, materials conveyed by feeding conveyor to top feeder , top feeder
carried materials into top high temperature tube for drying, by rotation tube and screw device inside tube, materials walking from
one end to the other end, then middle feeder, middle high temperature pipe, bottom feeder, bottom high temperature pipe.
3.By using flammable gas produced during carbonization, heat source recycling(close gasfier ).
4.Carbon powder cooled by carbon-discharging machine, discharged from bottom, then send to warehouse.During carbonization, by using condenser for recycling
wood vinegar fluid and wood tar oil.
carbonization machine technical parameter:
Production capacity: 3-5t / d
Host Power: 3kw
Host feed power: 1.5kw × 2
The conveying power: 3kw
Coal discharing machine power: 3kw
Gasifier slag off power: 3kw
Carbon machine of gasifier power: 3kw
Floor space: 15m × 10m × 6m (L × W × H)
Wearing parts: 20 × 20 pure graphite parts , carbon discharging parts, feeding screw blades, burners.
Hoist type charcoal carbonization machine :
Raw materials for charcoal carbonization machine :
branches, sawdust, rice husk, peanut shell, coconut shell, hardwood, corn cobs, leaves, wood chip, stringy bark, reed, mushroom
residue, cornstalks waste wood and so on.
The moisture content of the raw materials must be between 5% -12%, the particle size of the raw materials does not exceed 10mm
Charcoal carbonization machine technical parameter:
| Capacity | 1.5T-2T |
| Carbonization furnace temperature | 560°C |
| Carbonization volume | 3-5M3 |
| Power | 0.75KW |

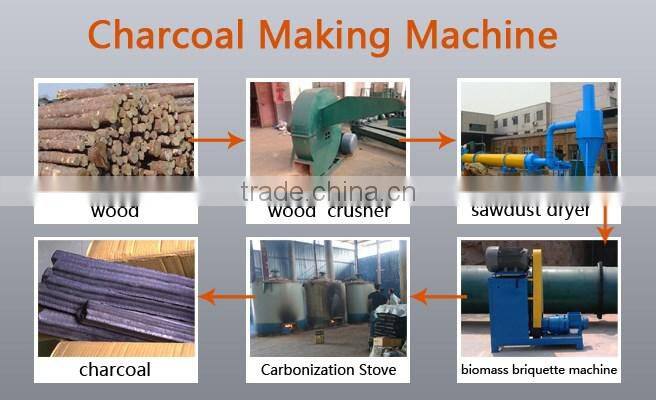

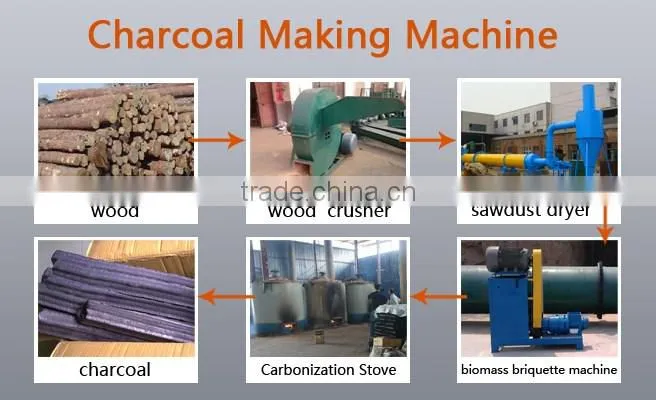

Working process for charcoal carbonization machine :
1. Crushing . Raw materials such as wood, peanut shell, branches, leftover material and so on, need to be crushed into particles
of less than 8mm.
2. Drying . Small particles of biomass raw materials moisture content need drying to between 5% and 12% ( for making good rods ).
3. Molding . After drying the raw material, it commonly is made into sticks( 6 prismatic , diameter of around 50 mm , hollow around
10mm ).
4. Carbonization . Rods are placed in carbonization furnace to carbonize( 2.5t rods can make hollow charcoal 1t ).
If you want to visit our factory, please note our city name, Zhengzhou City, Henan Province, China(mainland)
Our air port name is : Zhengzhou Xinzheng International air port.
Train station name is: Zhengzhou (Zhengzhou north) train station
