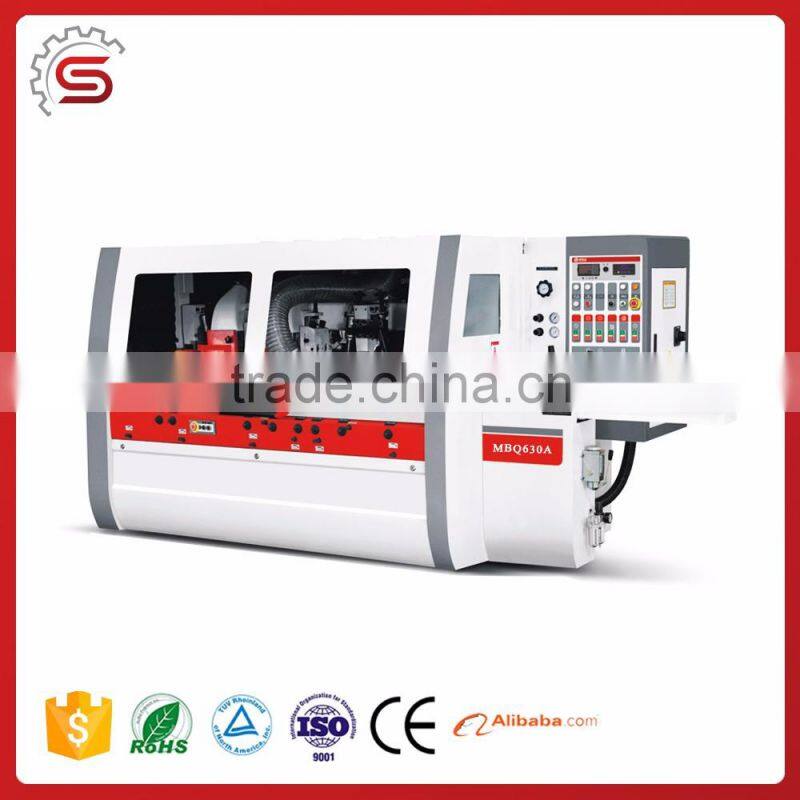

300mm Width 6 Shaft Heavy Duty Four Side Wood Planer MBQ630A for Hard Wood

300mm Width 6 Shaft Heavy Duty Four Side Wood Planer MBQ630A for Hard Wood photo-1
US$ 30,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Four Side Moulder
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Four Side Moulder
Place of Origin Shandong, China
Brand Name STEELER
Model Number MBQ630A Four Side Wood Planer
Voltage 380V/50HZ/3 Phase or as your request
Power(W) 90.25kw
Dimension(L*W*H) 4560*1725*1735mm
Weight 5100kg
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

300mm Width 6 Shaft Heavy Duty Four Side Wood Planer MBQ630A for Hard Wood

Product Description





ModelMBQ630A
Max. working width300mm
Min. working width25mm
Max. working thickness200mm
Min. working thickness8mm
Spindle amounts6 pcs
Spindle speed6000rpn
Feed speed7-28m/min
Spindle diameterφ40mm
Cutter diameter First bottom cutterφ125
Right vertical cutterφ125-φ200
Left vertical cutterφ125-φ200
First top cutterφ125-φ200
Second top cutterφ125-φ200
Second bottom spindleφ125-φ200
Motor power First bottom cutter15kw/20hp
Right vertical cutter11kw/15hp
Left vertical cutter11kw/15hp
Fist top cutter15kw/20hp
Second top cutter15kw/20hp
Second bottom cutter15kw/20hp
Feed motor7.5kw/10hp
Beam elevation0.75kw/1hp
Total power90.25kw/121hp
Feeding wheel Dia.140*35*50mm
Suction hood Dia.φ140mm
Overall dimensions4560*1725*1735mm
Packing dimensions4760*1929*1835mm
Weight5100kg
Features
1.MBQ630A Four Side Moulder adopts frequency conversion material feeding, material feeding speed ranges from 7-28m/min.
2.Each main shaft is driven by independent electric motor, cutting force is powerful.
3.Main shaft is adjustable to focus on the front, operation is convenient.
4.Hard chrome plating worktable is durable.
5.Equips with auxiliary unit alarming lack of material, it effectively improves smooth feed-in while lack of material.
6.Multi-group drive rollers improve feeding efficiency.
7.Adopts central charging system, features convenience and promptness.
8.International brands electrical parts are applied for good stability.
9.On the horizontal axis with the front support means to improve the rigidity of the spindle.
10.Spare parts are thick and solid to maintain high precision, high stability and high reliability.
11.Pneumatic compressed feeding roller is applied; the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.
12.Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
Product Gallery

 300mm Width 6 Shaft Heavy Duty Four Side Wood Planer MBQ630A for Hard Wood

Packaging & Shipping

1.Packing details: Stretch film with wooden case or as your request.

2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.

3.Timely delivery and transportation.

Our Services

1.Good after-sale Services is our Superiority

1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.


4) Oversea engineer after-sale service is available.





2.Main market

Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.





3.Sample Service

If you want to test the performance of machine ,we can sent sample to you with cost offer.



4.Customized Service

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.





5.We have years of manufacturing woodworking machine, OEM and ODM service are available.



Company Information

  Qingdao Steeler Woodworking Machinery Co., Ltd is a professional Manufacturer of various kinds of Sanding Machine, Polishing Machine and other mechanical equipment. The company’s sanding machine series is integrated with Germany, Italy and Taiwan's good mechanical properties, structure and the advanced polishing machine is not only draw lessons from the foreign advanced technology but also and highlights the Steeler people’s innovation, enterprising spirit, continuous research and development, making our polishing machine series the industry's leading edge products.


  We have already approved the ISO9000 certification and we are awarded the "National AAA Grade Credit Enterprise" Brand in China. A capable R&D team, strong processing ability, reliable quality assurance, strict testing ensure the company win trust of users.


  Rich experience, sophisticated design, advanced manufacturing technology, the company continuously adapt to the market and provide products with better design, performance, efficiency and improved after-sale service, which is the Goal of Steeler people!



Contact STEELER

300mm Width 6 Shaft Heavy Duty Four Side Wood Planer MBQ630A for Hard Wood

FAQ

1) Q: What's the MOQ?

      A: MOQ is one set.

2) Q: Provide custom machine Yes or No?

     A: Yes. We can provide custom machine for clients.

3)  Q: What's the payment terms?

     A: T/T 30% in advance and balance before shipment or by negotiation.

4)  Q: Are you factory or trade company?

     A: We are factory and trade company. STEELER is our brand.

5) Q: How long is the warranty period?

     A: One year warranty period except the quick-wear parts.

6) Q: Do you have professional engineers?

     A: Yes. We have professional engineers and designers. We can provide OEM products.
