Heavy Duty Wood Planing Machine MB633C Four Side Moulder for Wood House

Heavy Duty Wood Planing Machine MB633C Four Side Moulder for Wood House photo-1

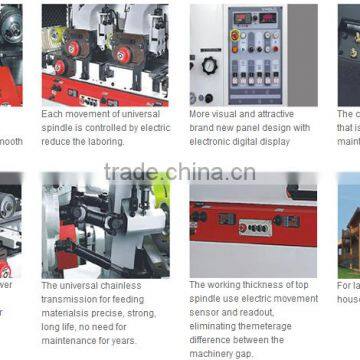

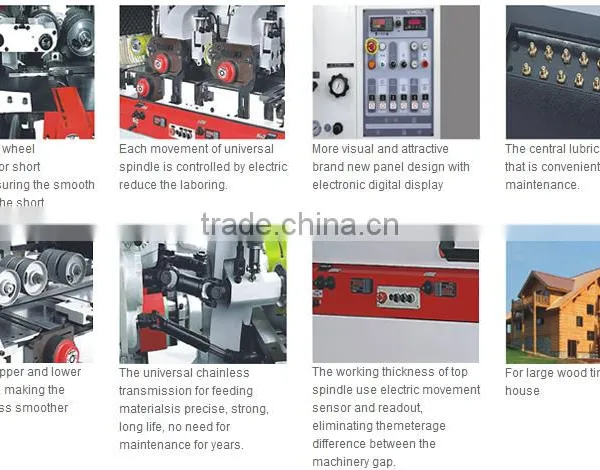

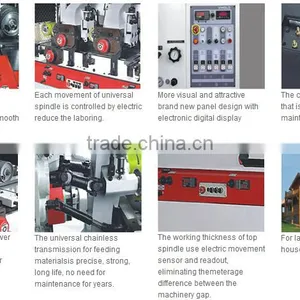

Heavy Duty Wood Planing Machine MB633C Four Side Moulder for Wood House photo-2
US$ 30,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Four Side Moulder
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Four Side Moulder
Place of Origin Shandong, China
Brand Name STEELER
Model Number MBQ633C Four Side Moulder
Voltage 380V/50HZ/3 Phase or as your request
Power(W) 90.25kw
Dimension(L*W*H) 4560*1725*1735mm
Weight 5200kg
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Heavy Duty Wood Planing Machine MB633C Four Side Moulder for Wood House



Product Description



ModelMBQ633C
Max. working width330mm
Min. working width25mm
Max. working thickness230mm
Min. working thinness8mm
Spindle amounts6 pcs
Spindle speed6000rpn
Feed speed7-28m/min
Spindle diameterφ40mm
Cutter diameter First bottom cutterφ125
Right vertical cutterφ125-φ180
Left vertical cutterφ125-φ180
First top cutterφ125-φ180
Second top cutterφ125-φ180
Second bottom spindleφ125-φ180
Motor power First bottom cutter15kw/20hp
Right vertical cutter11kw/15hp
Left vertical cutter11kw/15hp
Fist top cutter15kw/20hp
Top spindle lifting motor0.37kw/0.5hp
Second top cutter15kw/20hp
Second bottom cutter15kw/20hp
Feed motor7.5kw/10hp
Beam elevation0.75kw/1hp
Total power90.25kw/121hp
Feeding wheel Dia.140*35*50mm
Suction hood Dia.φ140mm
Overall dimensions4560*1725*1735mm
Packing dimensions4760*1929*1835mm
Weight5200kg



Features



1.Step-less feeding system, speed ranges from 7-28m/min
2.Independent motor drive each main spindle and makes stronger cutting force
3.One concentrate adjustment control panel in front of machine to make operation easy
4.Hard chromed working table with perfect performance of wear resistance
5.Bottom driving roller on the working table makes feeding easy
6.Centralized lubrication system, make for easy operating
7.Fit on qualified brand electrical element with stability performance
8.Top spindle equipped with support device to promote hardness performance of main top spindles
9.With full protection safety hood to avoid saw dust flying and noise, and offer safety protection of operator.
10.Air cylinder controlled hold-down feed rollers, to be adjusted subsections and make for unblocked feeding when processing wood pieces with different thickness.
11.With short feeding device to promote performance of unblocked feeding of short pieces.
Product Gallery

 Heavy Duty Wood Planing Machine MB633C Four Side Moulder for Wood House

Packaging & Shipping

1.Packing details: Stretch film with wooden case or as your request.

2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.

3.Timely delivery and transportation.

Our Services

1.Good after-sale Services is our Superiority

1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.


4) Oversea engineer after-sale service is available.





2.Main market

Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.





3.Sample Service

If you want to test the performance of machine ,we can sent sample to you with cost offer.



4.Customized Service

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.





5.We have years of manufacturing woodworking machine, OEM and ODM service are available.



Company Information

  Qingdao Steeler Woodworking Machinery Co., Ltd is a professional Manufacturer of various kinds of Sanding Machine, Polishing Machine and other mechanical equipment. The company’s sanding machine series is integrated with Germany, Italy and Taiwan's good mechanical properties, structure and the advanced polishing machine is not only draw lessons from the foreign advanced technology but also and highlights the Steeler people’s innovation, enterprising spirit, continuous research and development, making our polishing machine series the industry's leading edge products.


  We have already approved the ISO9000 certification and we are awarded the "National AAA Grade Credit Enterprise" Brand in China. A capable R&D team, strong processing ability, reliable quality assurance, strict testing ensure the company win trust of users.


  Rich experience, sophisticated design, advanced manufacturing technology, the company continuously adapt to the market and provide products with better design, performance, efficiency and improved after-sale service, which is the Goal of Steeler people!



Contact STEELER

Heavy Duty Wood Planing Machine MB633C Four Side Moulder for Wood House

FAQ

1) Q: What's the MOQ?

      A: MOQ is one set.

2) Q: Provide custom machine Yes or No?

     A: Yes. We can provide custom machine for clients.

3)  Q: What's the payment terms?

     A: T/T 30% in advance and balance before shipment or by negotiation.

4)  Q: Are you factory or trade company?

     A: We are factory and trade company. STEELER is our brand.

5) Q: How long is the warranty period?

     A: One year warranty period except the quick-wear parts.

6) Q: Do you have professional engineers?

     A: Yes. We have professional engineers and designers. We can provide OEM products.
