Universal Spindle MBQ723UA Four Side Planer for Door Frame

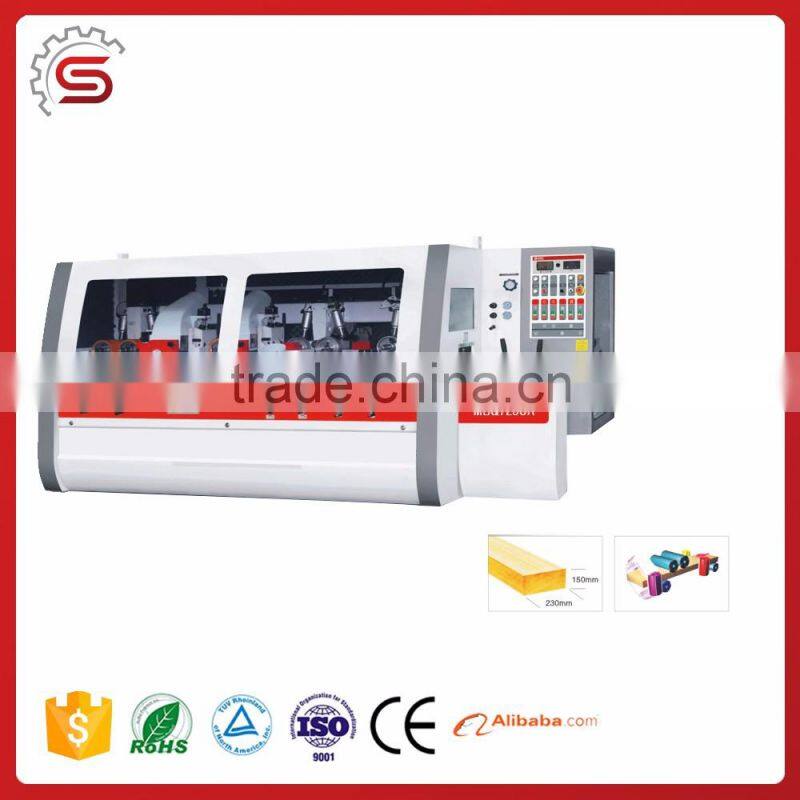

Universal Spindle MBQ723UA Four Side Planer for Door Frame photo-1
Universal Spindle MBQ723UA Four Side Planer for Door Frame photo-2
US$ 30,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Four Side Moulder
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Four Side Moulder
Place of Origin Shandong, China
Brand Name STEELER
Model Number MBQ723UA Four Side Planer
Voltage 380V/50HZ/3 Phase or as your request
Power(W) 58.75kw
Dimension(L*W*H) 4560*1725*1735mm
Weight 4630kg
Certification CE ISO9001
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Universal Spindle MBQ723UA Four Side Planer for Door Frame



Product Description



ModelMBQ723UA
Max. working width230mm
Min. working width25mm
Max. working thickness150mm
Min. working thinness8mm
Spindle amounts7pcs
Spindle speed6000rpn
Feed speed7-28m/min
Spindle diameterφ40mm
Cutter diameter First bottom cutterφ125
Right vertical cutterφ125-φ200
Left vertical cutterφ125-φ200
First top cutterφ125-φ200
Second top cutterφ125-φ200
Second bottom spindleφ125-φ200
Universal spindleΦ160
Motor power First bottom cutter7.5kw/10hp
Right vertical cutter7.5kw/10hp
Left vertical cutter7.5kw/10hp
Fist top cutter11kw/15hp
Universal spindle4.5kw/5.5hp
Second top cutter7.5kw/10hp
Second bottom cutter7.5kw/10hp
Feed motor5.5kw/7.5hp
Beam elevation0.75kw/1hp
Total power58.75kw/78.5hp
Feeding wheel Dia.140*35*50mm
Suction hood Dia.φ140mm
Overall dimensions4560*1725*1735mm
Packing dimensions4760*1929*1835mm
Weight4630kg
Features



1.Step-less feeding system, speed ranges from 7-28m/min
2.Independent motor drive each main spindle and makes stronger cutting force
3.One concentrate adjustment control panel in front of machine to make operation easy
4.Hard chromed working table with perfect performance of wear resistance
5.Bottom driving roller on the working table makes feeding easy
6.Centralized lubrication system, make for easy operating
7.Fit on qualified brand electrical element with stability performance
8.Top spindle equipped with support device to promote hardness performance of main top spindles
9.With full protection safety hood to avoid saw dust flying and noise, and offer safety protection of operator.
10.Air cylinder controlled hold-down feed rollers, to be adjusted subsections and make for unblocked feeding when processing wood pieces with different thickness.
11.With short feeding device to promote performance of unblocked feeding of short pieces.
Product Gallery

 Universal Spindle MBQ723UA Four Side Planer for Door Frame

Packaging & Shipping

1.Packing details: Stretch film with wooden case or as your request.

2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.

3.Timely delivery and transportation.

Our Services

1.Good after-sale Services is our Superiority

1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.


4) Oversea engineer after-sale service is available.





2.Main market

Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.





3.Sample Service

If you want to test the performance of machine ,we can sent sample to you with cost offer.



4.Customized Service

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.





5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
