1000 diaphragm hydraulic Chamber Herbal juice Filter press

1000 diaphragm hydraulic Chamber sewage treatment Filter press

*Advantages:

Simple in structure, good effect,easy to use, wide application.

Products details:

Filter press is Solid-Liquid seperation machine, Widely used in coal washing, tailing disposal, ceramics, pharmaceutical, metallurgy, mining, chemical industrial, alcohol, petroleum, fuel, edible, medicine, sewage treatment, dewax, oil filtration, wastewater treatment, environmental protection, textile, printing,dyeing, paper making,sewage treatment, cyanide leaching process and other fields.

Our company produces various models of Chamber filter press, plate-frame filter press, mechanical filter press, hydraulic filter press,membrane filter press, full-automatic filter press and all kinds of filter press spare parts; Model include 320, 450, 630, 800, 1000, 1250, 2000; Filter area from 1 up to 1000m²

*The following is the details of 1000 diaphragm hydraulic Chamber sewage treatment Filter press:

1 Model:1000

2 Filtration area:80~120m²

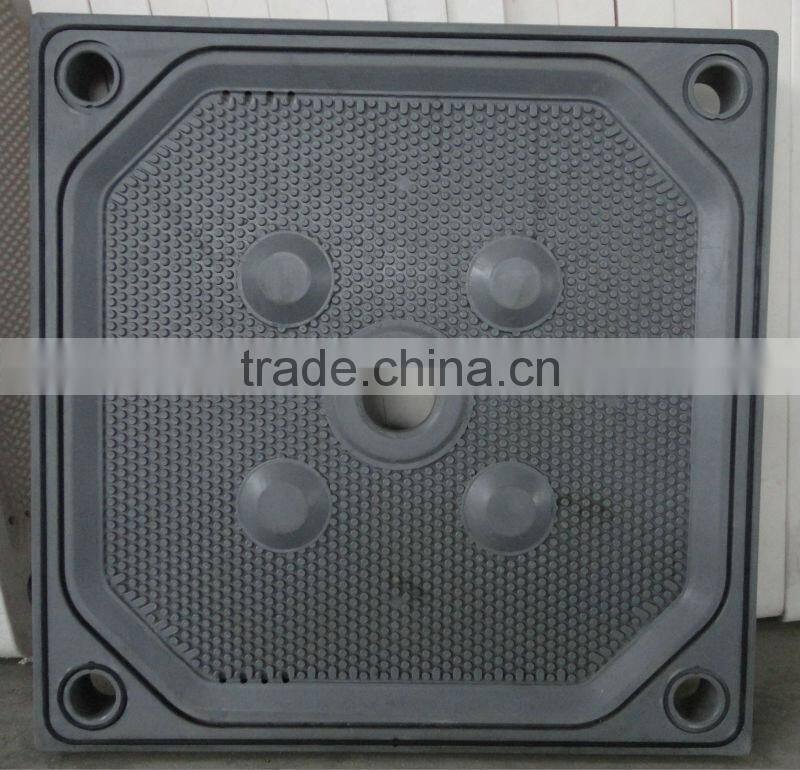

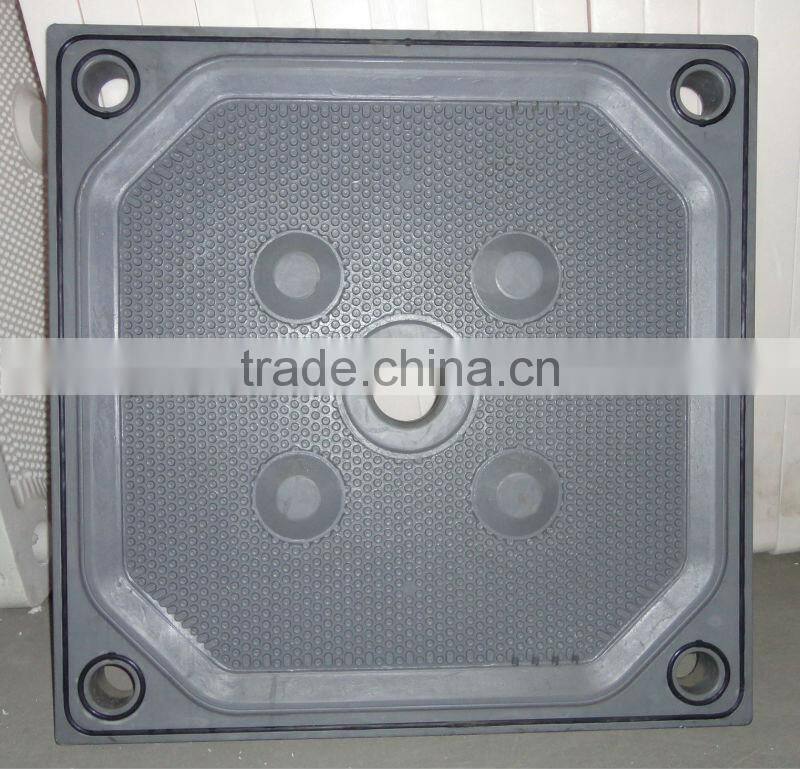

3 Filter plate material:polypropylene,etc

4 Flow in the form: Free flow and undercurrent

5 Clamping modes: Hydraulic clamping

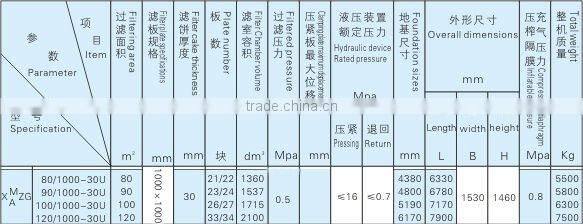

*Technical parameters

*Installation flow chat

*Workshop

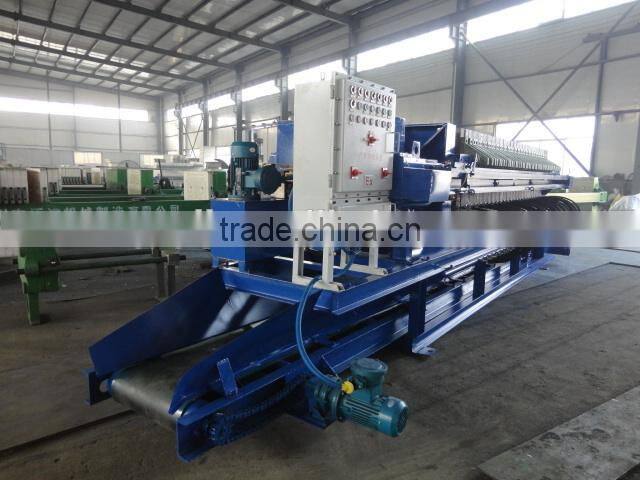

*Machine showing
