High Quality Cake Sunflower Seed Oil Press Machine

High quality cake sunflower seed oil press machine

Company Information

Xinxiang Jinxin chemical engineering equipment co,. Ltd is mainly focused on all kinds of pressure vessel and edible oil processing machine manufacturing. Established in 1978, With rich experience in this field which make us to be the golden supplier on alibaba and the sales volume is always in the top within the industry. Now we have more than 300 workers, fixed assets have reached 90000 thousands. We rewarded ISO9001, which is the manufacture license of special equipment certification, and design license of special equipment certification. Our best seller is grain oil machinery. We produce the complete oil production line, ranging from small scale screw oil press machine to the Turn-key project. Our products and project have been exported to many countries, such as Asia, America, Middle east, Africa, Europe etc.

 1.Sunflower pretreatment flow chart:

Cleaning→Shelling→Flaking→Cooking→Pre-press

 Main process description:

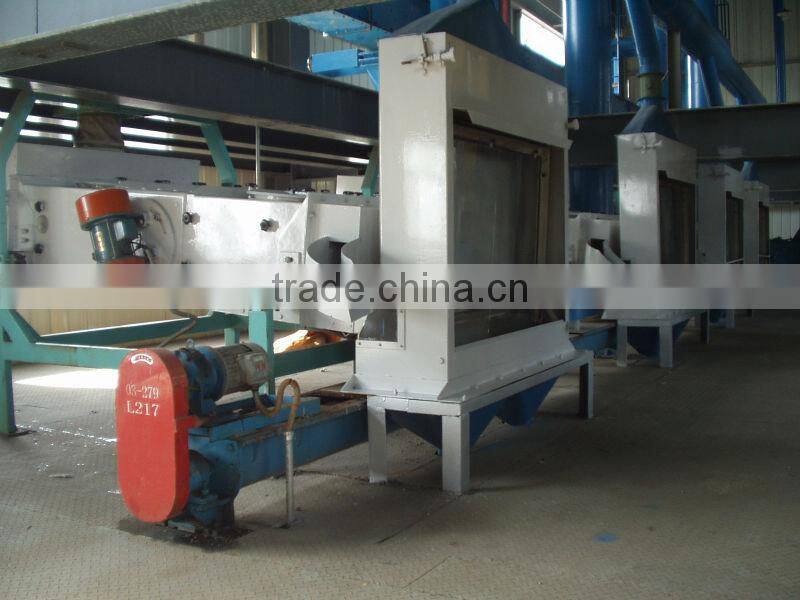

                                                        Vibration cleaning sieve

                                               Flaking Mill

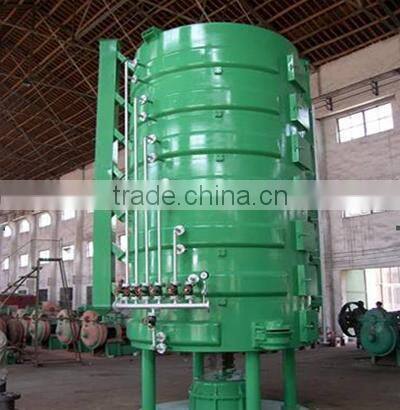

                                      Cooking machine

Process feature:

Pretreatment process feature:

1) Different combinations of process can process various oil plants in one workshop.

2) Use special intensified pretreatment technology for aroma peanut oil to make it more aroma.

3) Adopt advanced and reliable shelling technology to meet higher requirements for protein content in meal.

4) Extrusion treatment is used for raw materials with hard extraction, large-sized powder, and large capacity, which can reduce residual oil and solvent consumption, and increase the capacity by 50-80%.

5) The new technology of shelling and low-temperature treatment can ensure high protein and least denaturation.

 Economic and technical parameters

Steam consumption:Soybean≤90kg/t Materials(Soybean moisture12%,Temperature:20°C)

Power consumption:365.95KW(Installed power)

 Soybean extrusion cake quality:

                         Moisture        ≤10%

Temperature     55°C~60°C

                         Oil content      19-24%

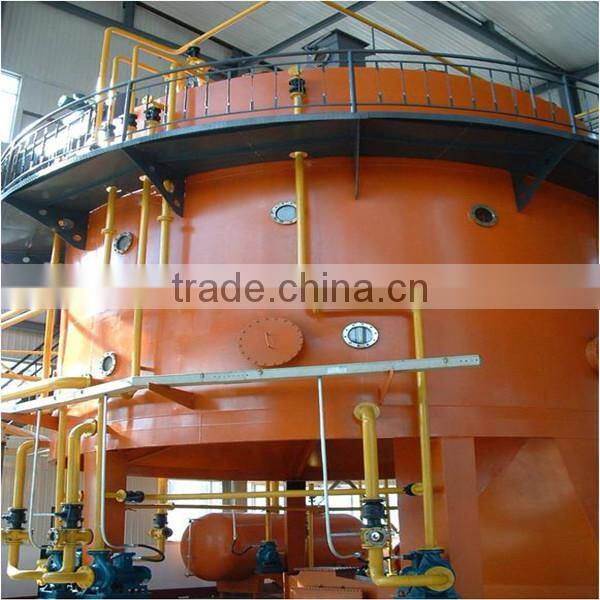

2.Extraction flow chart

  Material embryos→Extraction→Wet meal→Evaporation→Cooling→Product meal packing

    ↓

Mixed oil→Filter→Negative pressure evaporation →  Crude oil

                                                                                          ↓

                                                                               Solvent recovery

 Negative pressure evaporation advantages:

• Vacuum evaporation features high efficiency, thorough de-solvation and low solvent consumption in crude oil.

• Use the second steam of desolventizer toaster and remaining steam from steam jet pump as the heat source of the first steam, which can save energy, reduce the condenser configuration area and save investment.

• Due to the low temperature of the steam, the crude oil features light color, good quality and low residual solvent.

Main economic and technical parameters:

  3.  Crude oil Refining

 Continuous Oil Refining Process Introduction

                                                                         Alkali hot water

Crude oil→filter→mix→reactor→mix→reactor→centrifugal separation→oil residue

                              ↑                                                                ↓

                   Phosphoric acid       hot water→mix                      ↓

                                                                       ↓                       ↓

             degumming oil←cooler←dry←centrifuge separation←mix←alkali liquor

                                ↓                    ↓

                                ↓               vacuum steam jet pump←   steam  citric acid

                                ↓                     ↓                                                      ↓

                                ↓                     ↓                                                      ↓

      bleaching earth→mix→decoloring→filter→decoloring oil→ mix→  heat

                                                                                                                ↓

                                                           refined oil←filter←cool←deodorizing←vacuum

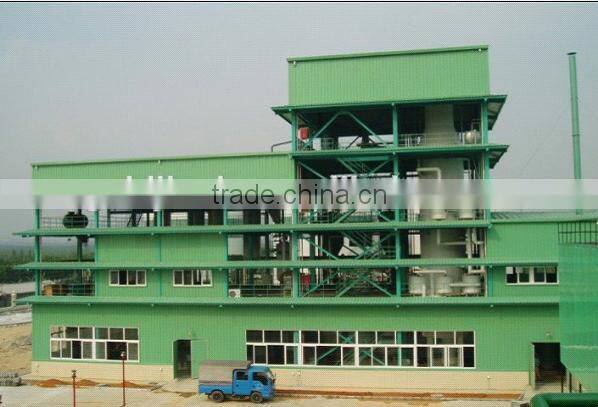

                                                        Oil Refining Workshop Exterior

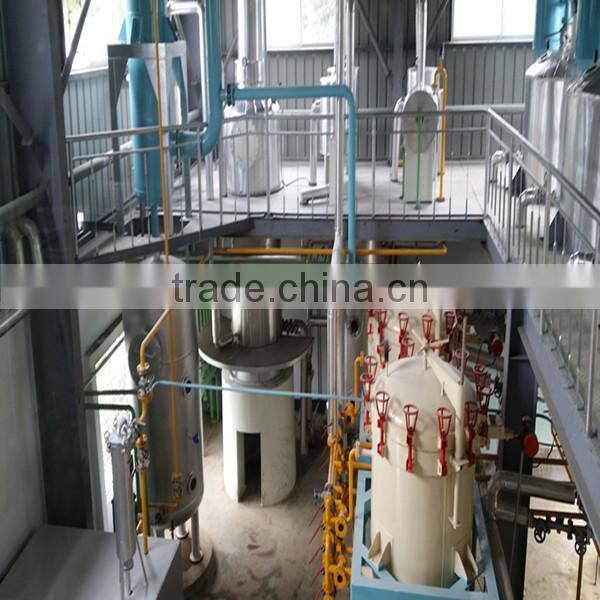

                                                       Oil Refining Workshop inside

3T/D oil refinig process description:

The whole process of intermittent refining:

Oil inlet→heating up→deacidification→dealkalizing→washing 2-3 times→dry dehydration. The total time is about 24 hours.

I.  Low temperature with thick alkali:

Adjust the oil temperature to 20~30℃, then put in 20~30Be alkali liquor in 5~10 minutes, and stir it about 20~60 minutes on condition of 60r/m. Increasing the temperature slowly when notice the separate of neatsoap after reacted, 1℃ per minute, when it reach 60℃, stop stiring, keep still and make soap feet settlement, it will takes nearly 6~8 hours, then let out the soapstock.

Ⅱ. High temperature light alkali operation:

Firstly,determine the alkali thickness in accordance with the alkali value of crude oil(according to the table below), account the alkali and water added in, when the alkali value is under 5, for each unit acid value, the total water added into per ton oil is 23 kg. When the alkali value is over 5, no more than 12% of the oil heavy, the exceeded alkali is only 0.005~0.002%.

Ⅲ. Washing:

After releasing the nigre, grease heated up to boom 90℃, then add in the hot water for washing, stirring. Water temperature should be about 5 ~ 10 ℃ higher than the oil temperature, for low water temperature tends to emulsification. After adding the water, continue to stir for 5 minutes, then rest 4 hours for precipitation, and release the soap water, wash 2 ~ 3 times depending on the oil quality and decide. Washed oil slowly heated up to 105℃, stirred dehydration for 1 hour, washed oil can also direct inhaled decoloring pot and vacuum drying 30 minutes.
