20-200 Ton China Factory Price Automatic Castor Oil Manufacturing Machine With CE ISO BV Approved

20-200 Ton China Factory price automatic castor oil manufacturing machine with CE ISO BV Approved

Hig

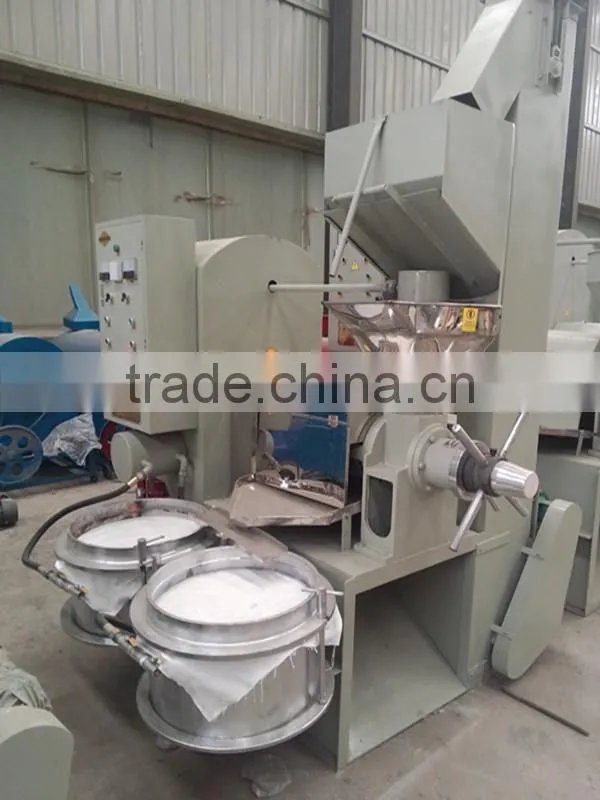

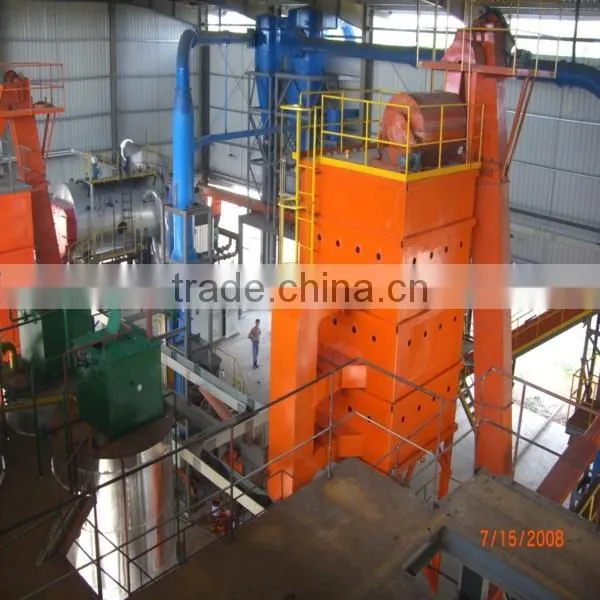

1. Pretreatment of castor oil manufacturing machine

A,The pretreatment refers to the process from oil seed with all kinds of impurities to oil extraction, it includes cleaning,shelling,cracking,conditioning,flaking and cooking.

B.The pretreatment is a very important section,it will directly affect the oil making effect.

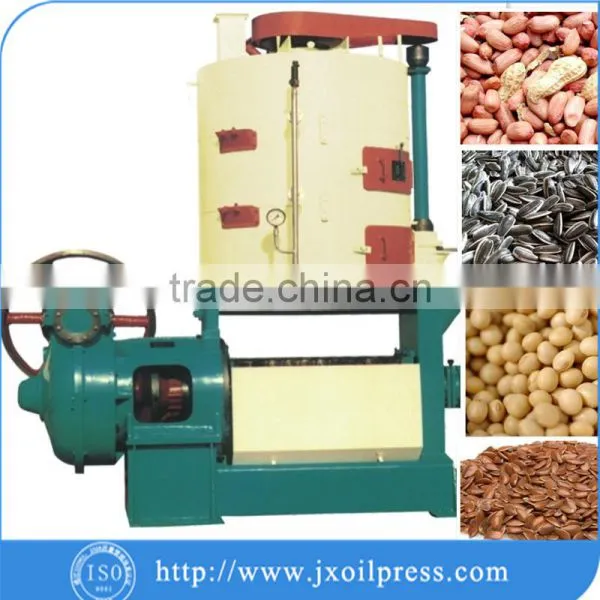

C,The pretreatment machines as follows.

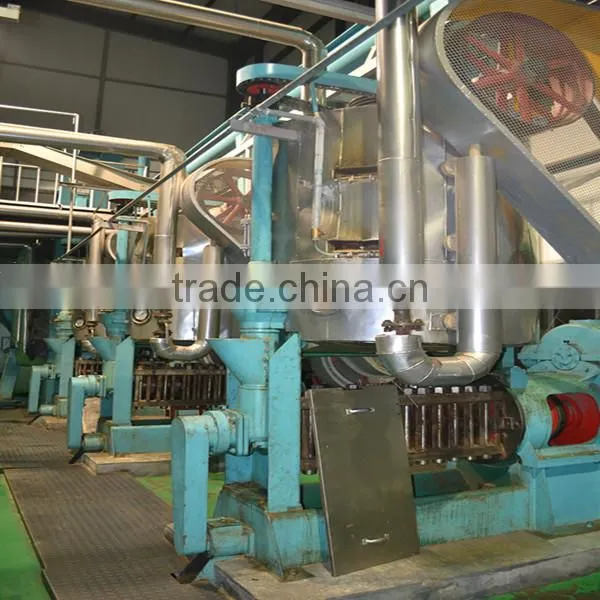

2. Castor Oil Extraction Machine of castor oil manufacturing machine
   A, The leaching process refers to use a kind of solvent that can dissolve the oil ,through humidify the oil and molecular diffusion,then extract the oil from the castor seed flake.

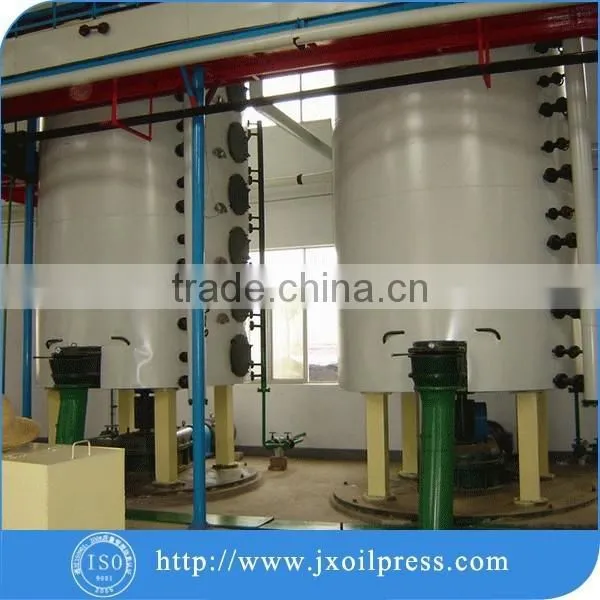

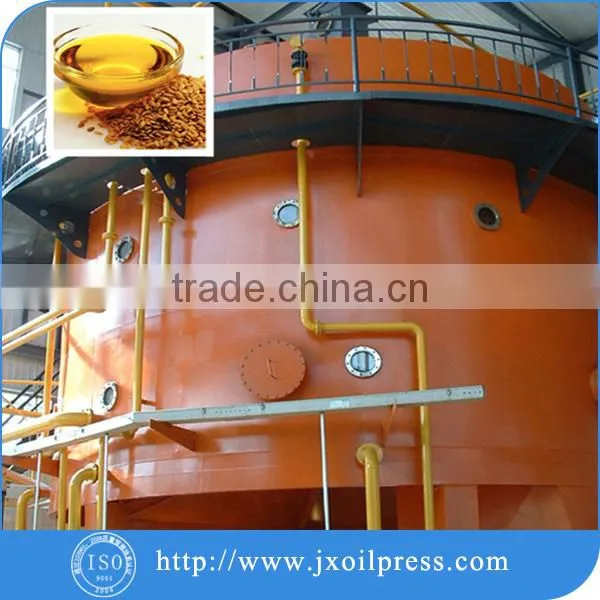

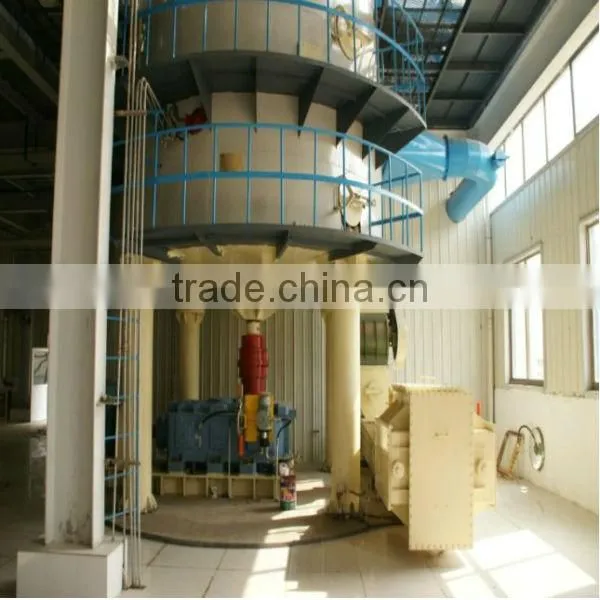

   B, The castor oil leaching process flow chart and the castor oil leaching machines as follows.

3.Refining Processing of castor oil manufacturing machine
lA, the first step is degum,add the phosphoric acid to the crude oil,the weight is 1‰of the oil’s,the concentration is 85%.stir for 5 minutes then add hot water 80°C, weight is 4%of the oil.after stilling 120 minutes, let off the residue.

lB, the second step is deacidify,as the castor oleic value is generally less than 6, so have to use a high concentration of lye.adding the lye into the oil(about 80°C)quickly,then stir,the still about 4 to 5 hours.at last let off the soapstock.

lC, the third step is washing,heat the oil about 85°C,then add the same hot water that weigh 20% of oil ,then stir, still about 40 minutes is ok, generally washing 2 times.

lD, the forth step is dry decoloring,The drying temperature is 105 ° C to 110 ° C, vacuum 0.08Mpa to 0.094Mpa is a dry qualification.use the dry acid clay, activated carbon, and bleaching temperature is100 -110 ° C, vacuum reach 0.08Mpa ~ 0.094Mpa.at last filtrate after cooled to 70-80°C,then will get the refined castor oil.

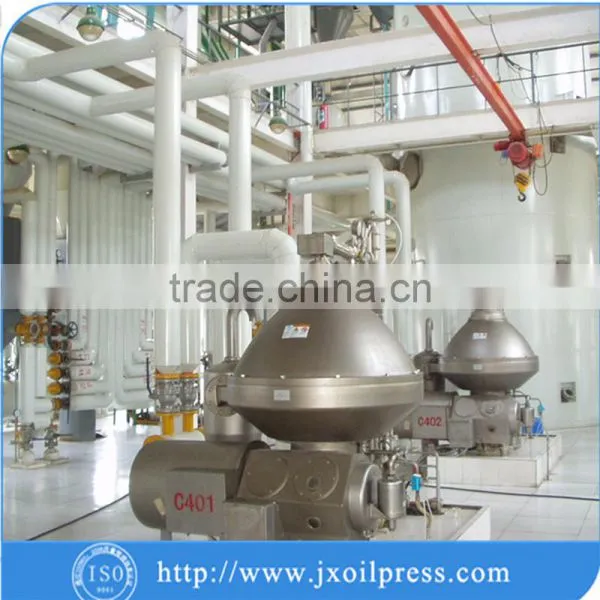

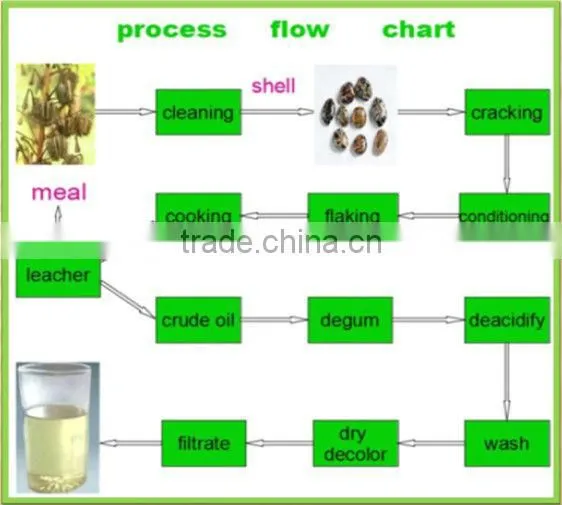

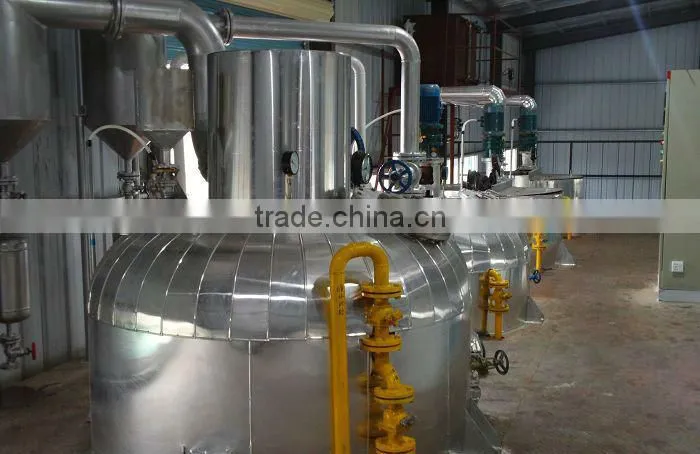

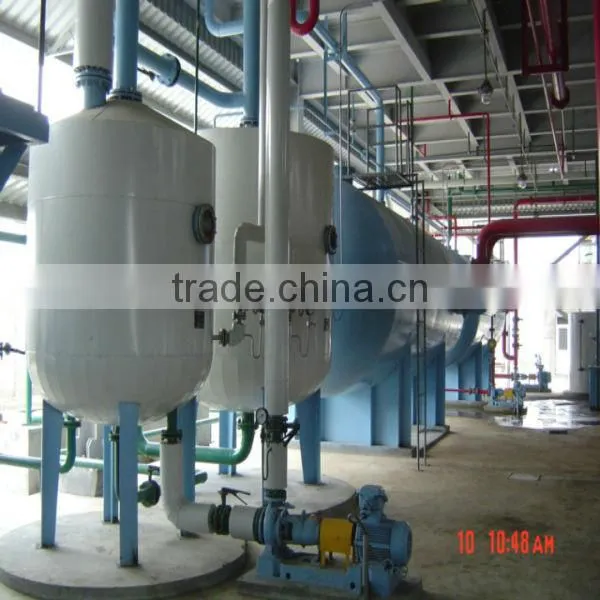

lE, the castor oil refining process flow chart and refining machines as follows.

The degumming machine

The deacidify machine

Our Workshop of Plant

Shipment

 Packaging site

customer visiting

Our lab

any question please contact me
