Specifications
Edge-milling machine, gold milling machine:1.High grinding efficiency;
2.Capacity 0.9-1.2t/h, 4kw, 6.0t;
3.Grinding evenly.
24H Sale On-line Gold Concentrator
100% NEW Hot Products for 2015

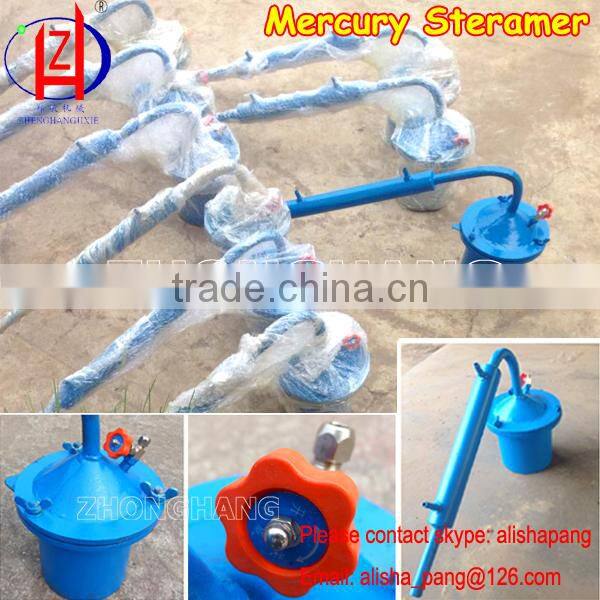

1 Mercury Steamer Free
Mercury Steamer 1 Set for 3 Sets of 1200A Wet Pan Mills
Hot Selling in Sudan, Peru, Russia
Gold Milling Machine
Real Manufacturer and Factory Products
Specification of wet pan mill, gold milling machine:
1. High yield, convenient to move;
2. Easy to operation;
3. Less energy consumption with moderate price;
4. A perfect beneficiation machine for gold, iron ore, zinc, lead etc.
1200A Wet pan mills (3 sets) shipped to Sudan on Oct. 3rd, 2014 afternoon.
Application of wet pan mill, gold milling machine:
1.This gold refinding machine is widely used to separate gold, molybdenum, silver, copper, lead, iron, zinc, etc.
2.The machine is an ideal equipment for middle or small gold sand refinery.

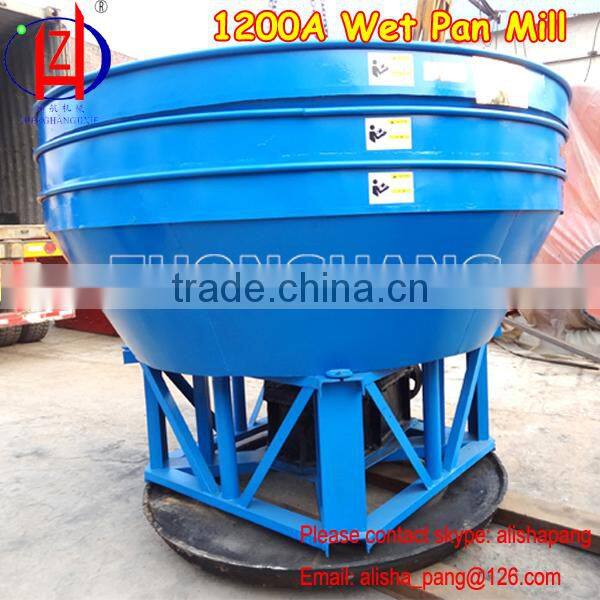

Full set of 1200A
Features of wet pan mill, gold milling machine:
1.The size of gold sand material has to be blow 30 mm.
2.It's easy to use and energy saving.
3.This way can directly get pure gold
4.It is best suitable for small scale gold mine.

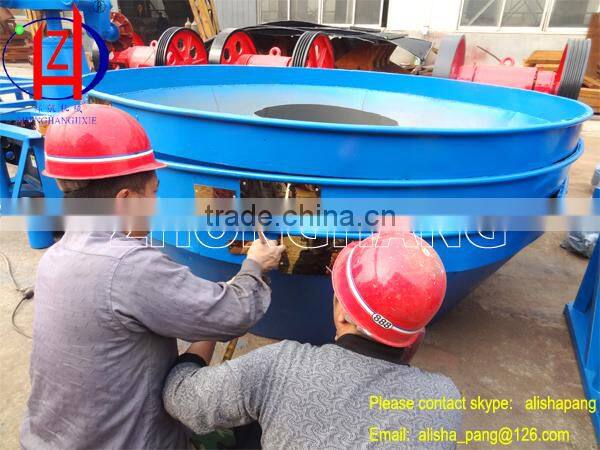

Master workers nailed the metal plate in wet pan mill (ZHONGHANG)
Working principles of wet pan mill, gold milling machine:
1.When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.
2.Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.
3.At last, use a high-density red cloth to wrap mercury up.
4.Then squeeze it, the mercury will be pressed out and pure gold stayed.
5.As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.
1200A grinding rollers loaded into 20GP container first.
Technical parameters of wet pan mill, gold milling machine:
Model |
Specification |
Input size(mm) |
Process ability (t/h) |
Speed (r/min) |
Motor (kw) |
Weight (t) |
1600 |
1600×400×±20 |
Less than 30mm |
4 |
20-22 |
6-30 |
17 |
1500A |
1500×400×±20 |
3 |
20-22 |
6-22 |
15 |
|
1500B |
1500×350×±20 |
2.5-3 |
20-22 |
6-22 |
14 |
|
1500C |
1500×300×±20 |
2-2.5 |
20-22 |
6-22 |
12.5 |
|
1400 |
1400×250×±20 |
1.5-2 |
16-18 |
6-18.5 |
9.5 |
|
1300 |
1300×250×±20 |
1.5 |
21-23 |
6-15 |
7.8 |
|
1200A |
1200×220×±20 |
0.9-1.2 |
16-18 |
4-7.5 |
6.0 |
|
1200B |
1200×200×±20 |
0.8-0.1 |
21-23 |
4-7.5 |
5.8 |
|
1100 |
1100×200×±10 |
0.6-0.8 |
16-18 |
4-5.5 |
5.5 |
|
1000 |
1000×200×±10 |
0.5 |
21-23 |
4-5.5 |
4.5 |
|
900 |
900×150×±10 |
0.3 |
17-19 |
3 |
3.2 |
Why do clients choose us ?
Over 20 years experience in this field.
Exported to more than 30 countries in Africa, Asia, America.
Processional Research and Development team; Strict quality control.
Provide complete service equipment installation, testing ,maintenance and staff training.
Welcome your inquiry !
If you are interested in our equipments , please do not hesitate to contact us.
We will reply you the details ASAP.
Please don't hesitate to let us clear know all your questions about machines.

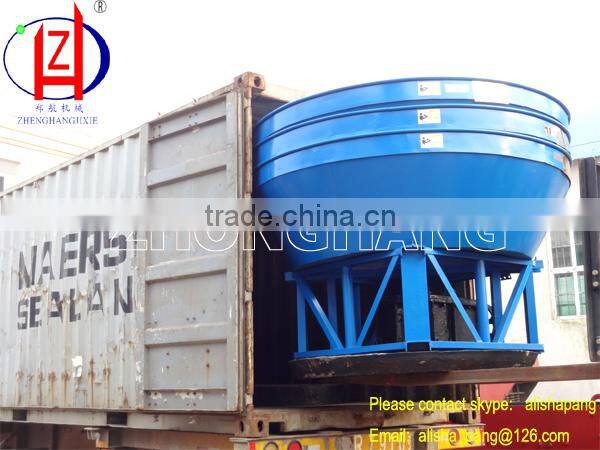

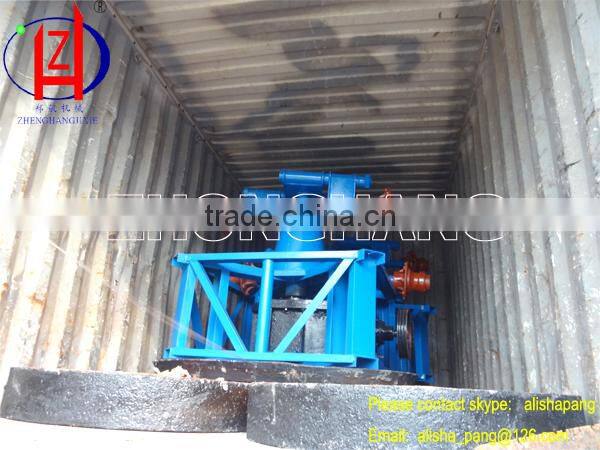

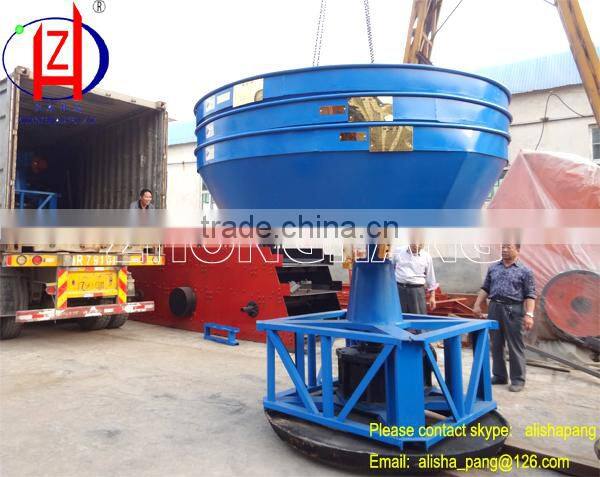

Each host machine (3 sets) will loaded on one grinding ring into container.

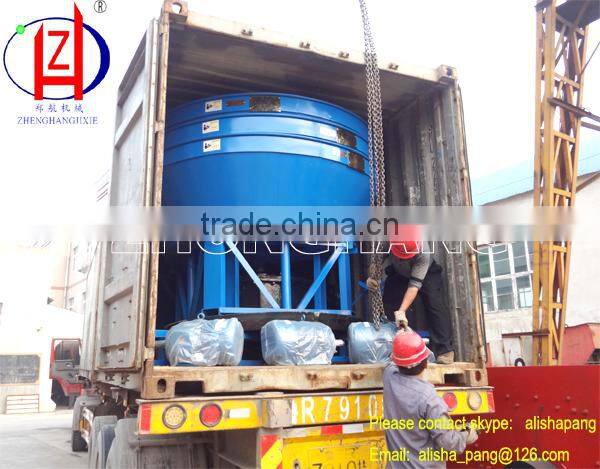

3 Full sets of 1200A wet pan mill all into 20GP for shipping to Sudan.
Three motors of 1200A as 220V, 50Hz.
Operation manual and delivery list in the file bag and it would go with machines.
20GP container first drove to port Qingdao from our factory in Zhengzhou city of
HENAN province in China.
One set mercury steamer to you free.
Best thanks for all your hard efferts !!
Questions from our engineers:
1) What is your grinding raw materials ?
2) What is the input size of your raw materials ?
3) What is the dealing capacity per hour that you need ?
4) What is the output size of final products ?
Alisha will do all the best work for your machines in China.
