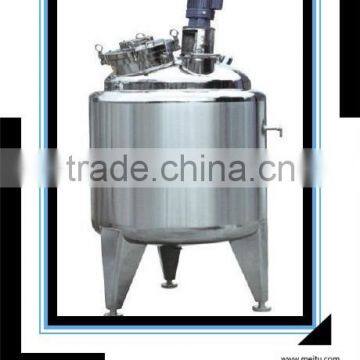

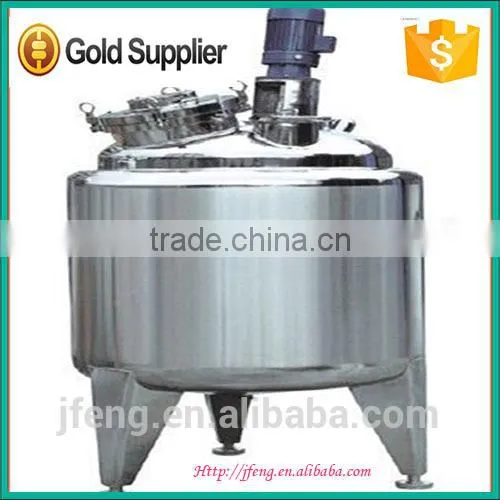

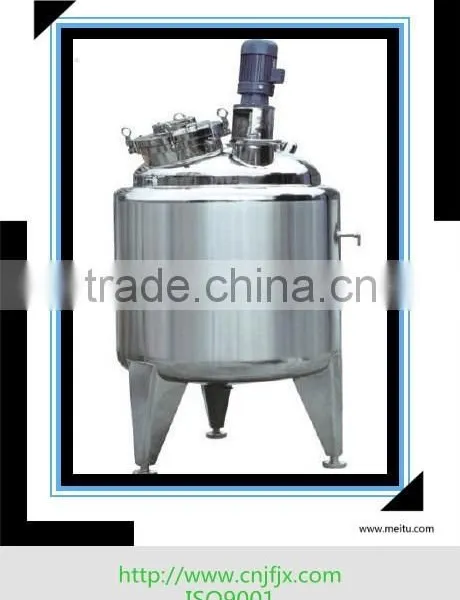

stainless steel shampoo mixing tank with agitator

   It is mainly used for the large transfusion, small injection as well as solution, sterilization and preparation etc.

Performance:

1. The series of equipment have the functions of heating, cooling, heat preservation and mixing preparation. The vessel carries out design and processing according to “Technical condition for steel made pressure vessel”.
2. The specifications for selection are 0.05m3~5.0m3 different volumes. It can also carry out the design and processing according to the actual technology requirements of customers.
3. Adopt interlayer structure, with the advantages such as large heating area and small welding etc.
4. The shaft seal adopts sanitary level hard alloy and silicon carbide 204 balancing mechanical seal, which is anti-abrasion and anti-press. The rotation speed is 60~82 r/m, and the speed can also be regulated by frequency converter.
5. The interface adopts internationally general-use standard ISO standard rapid installation chuck type, and the material is imported 316L or 304. The mirror polishing of internal surface Ra≤0.28μm,and the external surface adopts semi-luster polishing treatment.
6. The liquid meters for selection are glass tube liquid meter, static pressure sensor type liquid meter and supersonic wave liquid meter.

7. The structure forms are divided into upward and downward round sealing head or downward reverse convex bottom upward round sealing head structure, which can guarantee no residual of liquid medicine.
8. The jacket structure forms for selection are divided into standard jacket external coiled tube jacket, and honeycombed jacket. The structure is the combination of upward and downward round sealing head and standard layer jacket. It has large jacket space and large heating area, which can reduce the welding seam. The internal bladder is neat, which can guarantee that the material will not be hung on the wall. It has advantages such as beautiful appearance, simple structure and durability. The disadvantage is that it is too high. Additionally, if changing the reducer as horizontal worm gear reducer, the height can be reduced for about 250~330mm.

 Jiangsu Jufeng Machinery Co., Ltd , formerly known as Wenzhou Longwan Xinghuo Food Machinery Factory, moved to the provincial level economic development zone of Xuyi County in Jiangsu Province with beautiful environment and convenient transportation according to the demands of expanding production scale with the developing business of the company. We are a manufacturer specialized in fluid equipment for such fields as fruit juice, beverage, dairy turn-key projects, biological engineering,pharmaceutical engineering ,sanitary fluid fittings and etc.

Jufeng enterprise is a professional diversfied machinery manufacturer integrating design,  development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.

About Delivery time

Q-----What’s the delivery term for making business with us?

A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;

About Lead Time

Q------What’s the lead time after placing order?

A------Usually it takes about 25~30 days after we received your deposit.

     However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.

About Payment Term

Q------What’s the Payment Term?

A------ By T/T in Advance, or Irrevocable L/C at Sight.

Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
