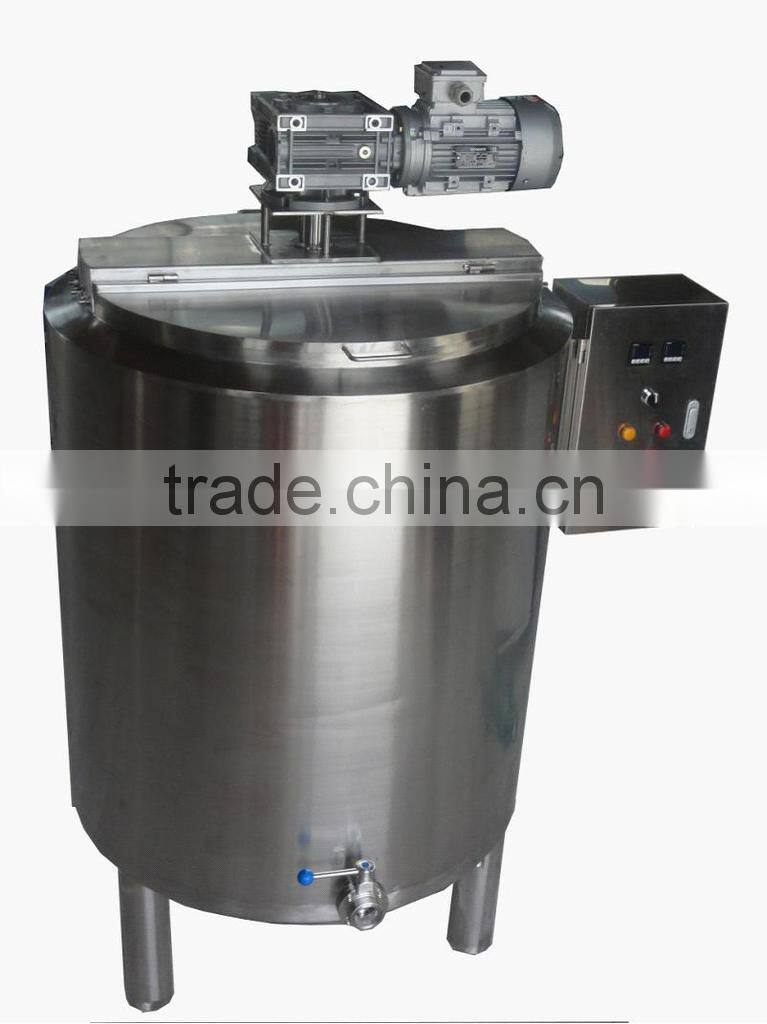

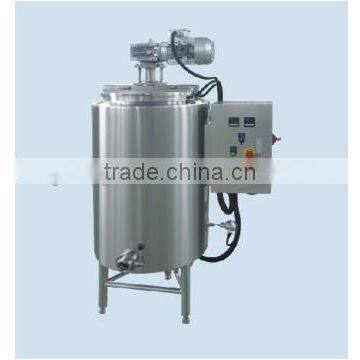

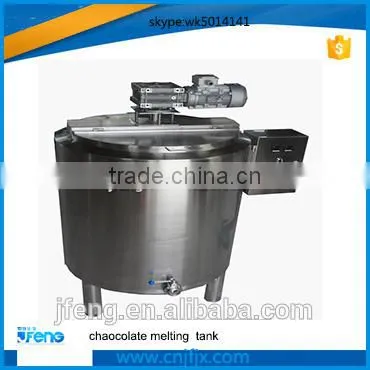

JFCM-300 stainless steel chocolate melting tank
Specifications
Chocolate tempering machine
1, temperature adjustment
2, melting and storage function
3, with scraper, mixer and stir device
Chocolate melting, tempering and mixer machine
Features of Chocolate tempering machine :
1, temperature adjustment
2, melting and storage function
3, with scraper, mixer and stir device
4, stainless steel
5, digital temperature control system
6, with water interlayer heating equipment, can be used for external heating and heat preservation
Introduction of Chocolate tempering machine :
Our chocolate melting and tempering mixer machine tank from 75kg to 6000kg, and we also can specially made according to your special needs. It can be used for melting, storage and heat maintaining for chocolate, axunge and similar coating materials.

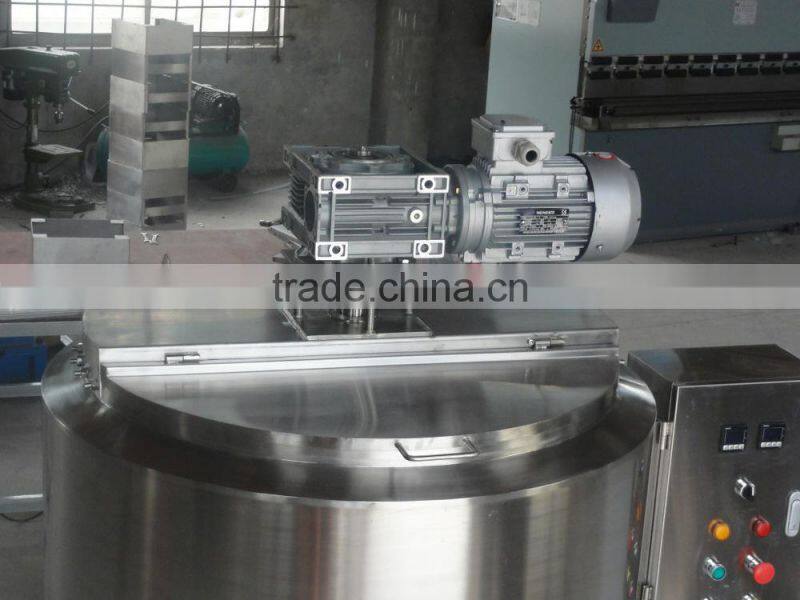

The stainless steel tank has a sandwich with constant temperature control, and a strong mixing and scraper device inside.
Other components including a water interlayer heating equipment, can be used for external heating, heat preservation and insulation.
Parameter of Chocolate tempering machine :
Name |
Model |
Main Use |
Volume |
Voltage |
Overall Dimensions |
Mini melting tank |
JFCM04 |
Melt, storage, heat preservation |
4kg |
single-phase, 220v-240v |
240*295*230mm |
Mini melting tank |
JFCM08 |
Melt, storage, heat preservation |
8kg |
single-phase, 220v-240v |
410*295*230mm |
Mini melting tank |
JFCM18 |
Melt, storage, heat preservation |
18kg |
single-phase, 220v-240v |
605*350*230m/m |
Tempering tank |
JFCM75 |
Tempering & mixer |
75kg |
3-phase, 415v |
900*1400mm |
Tempering tank |
JFCM150 |
Tempering & mixer |
150kg |
3-phase, 415v |
900*1500mm |
Heat preservation tank |
JFCM250 |
Heat preservation & mixer |
250kg |
3-phase, 415v |
1100*800*1600mm |

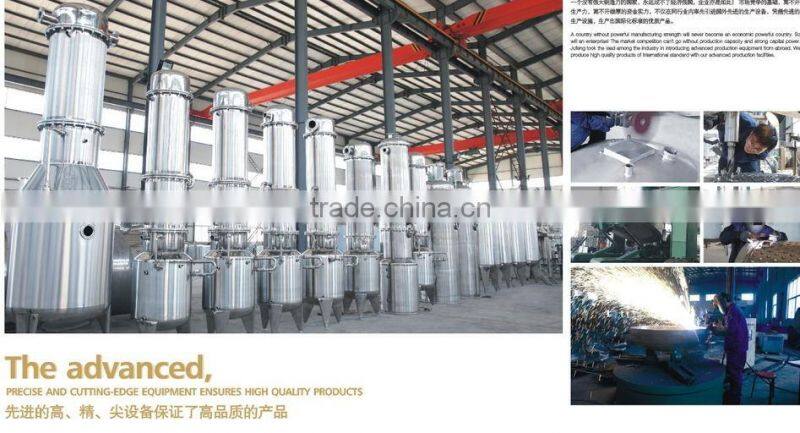

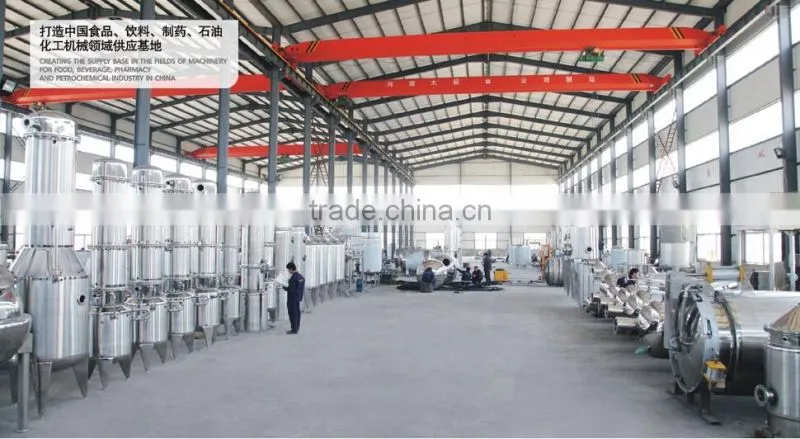

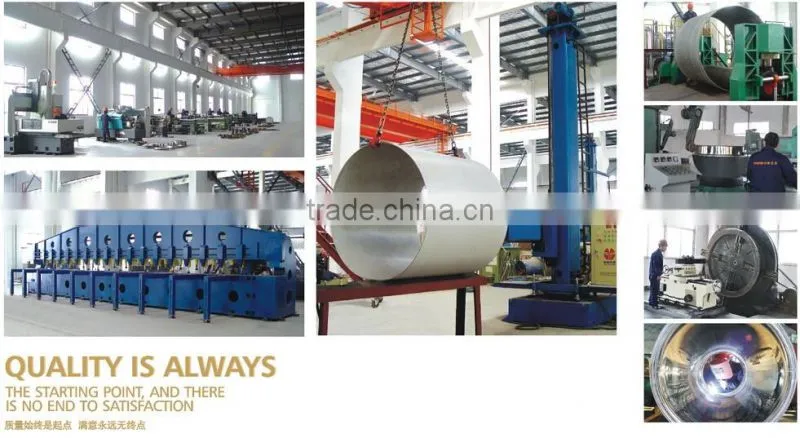

Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
Our main product lines cover the following series:
(1) Machinery: extraction tanks, thin film evaporator,extractors and concentrators, alcohol recovery towers, alcohol recovery concentrators, single/double effect concentrators, vacuum pressure-relief concentration tankers, ball concentrators, injection liquid prescription assembling lines, mixing tanks, alcohol deposition tanks, ferment tanks, crystal cans, vacuum emulsification complete equipment, fully automatic CIP systems, filtering equipment, intermediate layer pans, plate heat exchangers, etc.
(2) Sanitary grade valves: sanitary butterfly valves, sanitary pneumatic cutoff / reversal valves, sanitary adjustable valves, sanitary check valves, sanitary diaphragm valves, safety valves, sanitary ball valves, pneumatic / electric valves, sanitary pumps, sanitary common / asepsis sample valves, etc.
(3) Sanitary grade pipelines: sanitary grade pipes, IDF / ISO standard welded pipeline accessories, IDF / ISO standard clamp pipeline unions, IDF / ISO standard screw thread pipeline assemblies, IDF / ISO standard pipeline accessories, DIN standard welded pipeline unions, DIN standard welding & threaded pipeline unions, DIN standard screw thread pipeline unions, DIN standard flanges, SMS standard screw pipeline unions, SMS standard screw joints, small caliber clamp pipeline accessories, pipeline handle-less cups, allotting plates, quick connection heads, stainless steel thread clip pipes, supporting inserting pipes, etc.
(4) Pipeline fittings: sanitary container accessories, sanitation grade stainless steel milk buckets, sanitary container accessories, etc.
About Delivery time
Q-----What’s the delivery term for making business with us?
A----- FOB, CFR & CIF optional; It’s mainly depend on client’s requirement;
About Lead Time
Q------What’s the lead time after placing order?
A------Usually it takes about 25~30 days after we received your deposit.
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
About Payment Term
Q------What’s the Payment Term?
A------ By T/T in Advance, or Irrevocable L/C at Sight.
Our equipments can be customized, leave an inquiry to know more details about price, packing, shipping and price.
