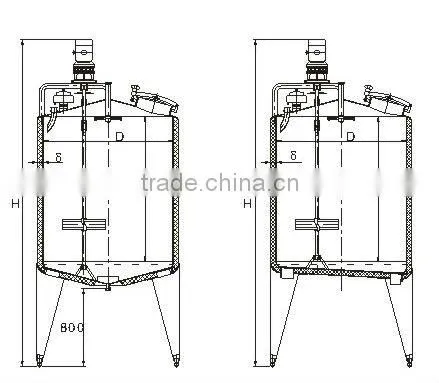

Stainless steel single-layer paddle liquid composing tank
Applicable range
1,Used as liquid storge tank, liquid composing tank, temporary storge tank and water storge tank etc.
2,Ideal in fields such as foods, dairy products, fruit juice beverages,pharmacy, chemical industry and biological engineering etc.
Structure characteristics
1,Made of single-layer stainless steel structure.
2,Materials are all sanitary stainless steel.
3,Humanized structure design and easy to operate.
4,Transition area of interior wallon tank adopt s arc
for transition to ensure no dead corner of saniration.
Configuration of tank
1,Quick open manhole.
2,Various models of CIP cleaning machines.
3,Fly and insect resistant sanitary breathing cover.
4,Adjustable triangular bracket.
5,Dismountable materials input pipe assembly.
6,Thermormeter(According to customer requirements)
7,Ladder(According to customer requirements)
8, paddle blender.
9,Liquid level meter and level controller(According to customer requirements).
10,Eddy-proof board
Technical Parameter
| Effective Volume | Dimension of tank(DXh) | Total (H)height | Diameter of inlet & outlet | Motor power | ||
| (L) | (mmxmm) | (mm) | (mm) | (KW) | ||
1000 | 1060X1220 | 3150 | 51 | 0.75 | ||
| 1500 | 1160X1500 | 3350 | 51 | 0.75 | ||
| 2000 | 1340X1500 | 3410 | 51 | 1.1 | ||
| 3000 | 1410X2000 | 4000 | 51 | 1.5 | ||
| 4000 | 1620X2000 | 4250 | 51 | 1.5 | ||
| 5000 | 1810X2000 | 4300 | 51 | 2.2 | ||
| 6000 | 1980X2000 | 4550 | 51 | 2.2 | ||
| 7000 | 1930X2440 | 5000 | 51 | 2.2 | ||
| 8000 | 2060X2440 | 5000 | 51 | 3 | ||
| 9000 | 2180X2440 | 5050 | 51 | 3 | ||
| 10000 | 2300X2440 | 5050 | 51 | 3 | ||
| 12000 | 2270X3000 | 5600 | 51 | 4 | ||
| 15000 | 2530X3000 | 5700 | 51 | 4 | ||
| 20000 | 2640X3660 | 6400 | 51 | 5.5 |
Note: It can be made according to special requirements of customers ,Total height(H) is in accordance with outlet height of 800mm, If outlet height is changed, then total height (H) shall be adjusted.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
Jufeng enterprise is a professional diversfied machinery manufacturer integrating design, development,manufacturing,engineering installation,after-sales service,etc. The company took the lead among the industry in obtaining the National D-class "special equipment manufacturing license" and ISO9001:2000 international quality system certification.
