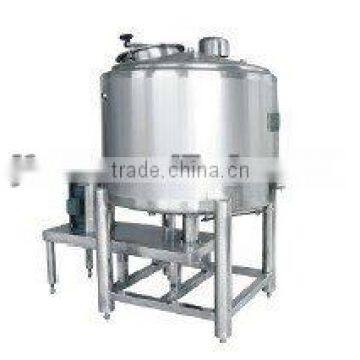

Bottom high-shear emulsification tank

Name: Bottom high-shear emulsification tank
Brand: JFeng
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port Shanghai / Ningbo /Qingdao/Dalian
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

JFeng

Model Number:

JFET

Processing Types:

Milk

Product Description

Specifications

1 material: SS304/SS316
2 capacity : 100L-300000L

Square bottom high-shear emulsifying tank is manufactured, examined and approved by JB/T4735-1997 "teel welding normal pressure container". It adopts high speed flow section to disperse and emulsify; the rotor guides flow out, which provides the liquid a vertical high speed shear to avoid the quality difference between the upper and lower layer; the imported high quality emulsifying head’s working rotary speed can reach to 1500 rpm,which brings good dissolving and emulsifying effect on the sugar, milk powder and condiments production, is the highest efficient machine among the equivalents.
Technical Parameter

Volume	Dimension(mm)	Max work pressure	Max work temperature(°C)	Agitating speed(r/min)	Motor power(kw)
400L	720×1050×1500	Normal pressure	100°C	1500	5.5
600L	850×1135×1700	Normal pressure	100°C	1500	7.5
800L	1280×1420×1900	Normal pressure	100°C	1500	11
1000L	1400×1540×2000	Normal pressure	100°C	1500	15
2000L	1460×2150×2200	Normal pressure	100°C	1500	22

Pot article list

symbol	Normal size	Connection size and sign	Connecting surface pattern	usage
N-1	Φ51×2	ISO/SMS STRNDARD	clamp	Material inlet
N-2	Φ76×2	ISO STRNDARD	clamp	Breathe-free hole
N-3	Φ38×2	ISO/SMS STRNDARD	clamp	CIP joint
N-4	Φ400×80×2	ISO/SMS STRNDARD	weld	Manhole
N-5	Φ51×2	ISO/SMS STRNDARD	clamp	Material outlet
N-6	M27×2	GB/T7307-2001	Female screw thread	Thermometer joint
