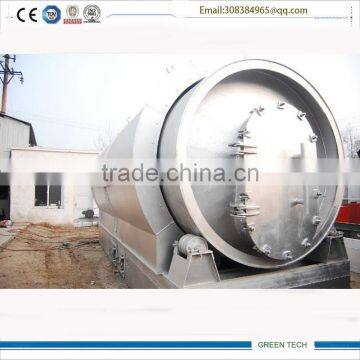

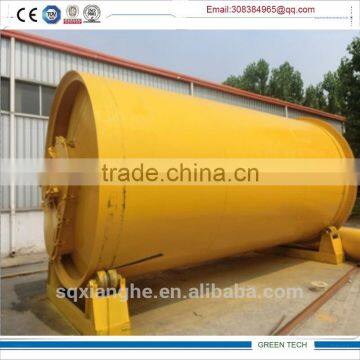

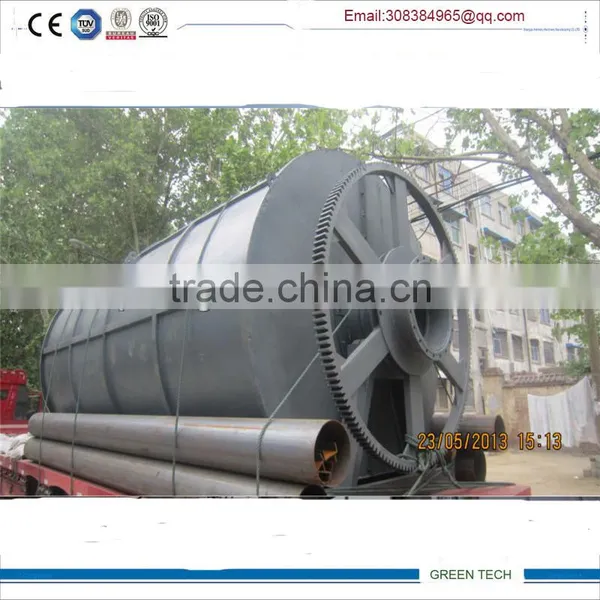

Tire Waste recycling to oil pyrolysis equipment 5TPD
Application for:
waste tyre, scrap tyre, rubber ,
plastic, PE,PP,PS ABS except pvc ,PET
cables
household waste, municipal garbage
paper making leftoffers
farming films
Oil sludge, oil stone, oily waste etc
Waste oil
Kitchen waste

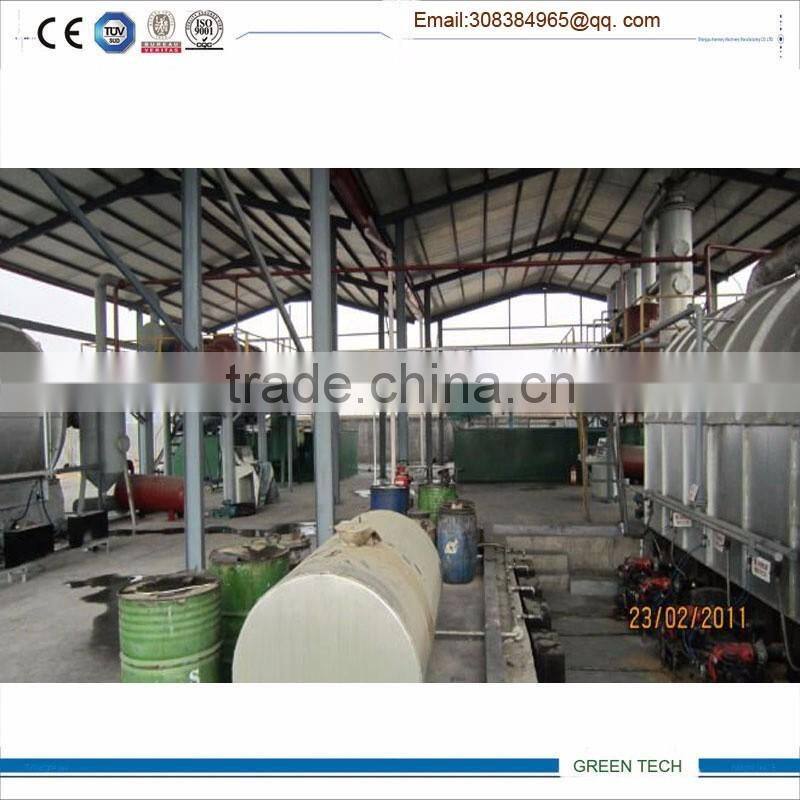

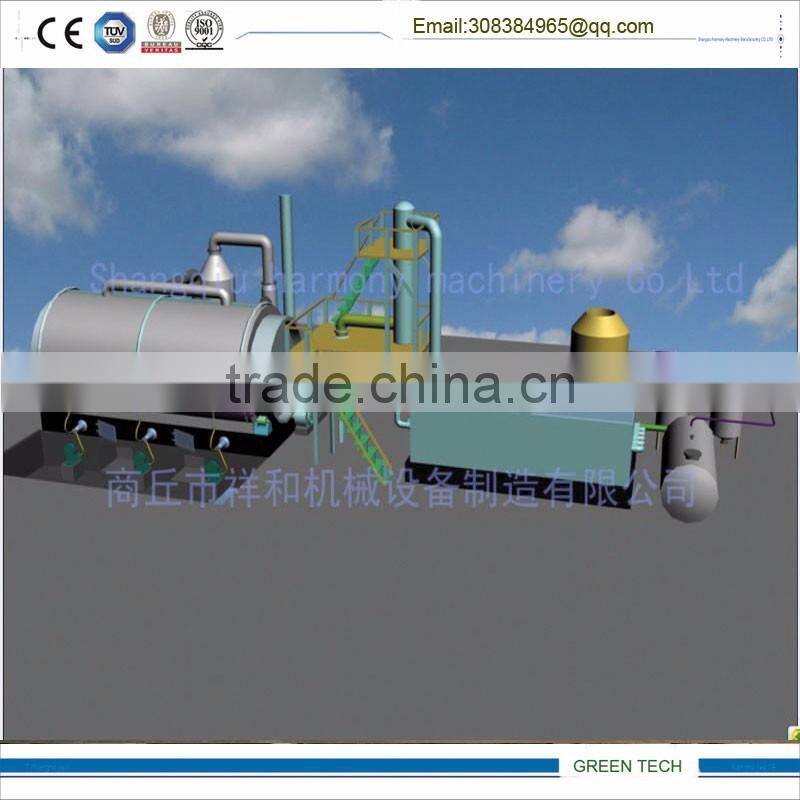

Major parts and work flow
1.Feed raw materials:
The raw material can be waste tire/waste plastic/waste rubber. Always feed by the auto feeder.

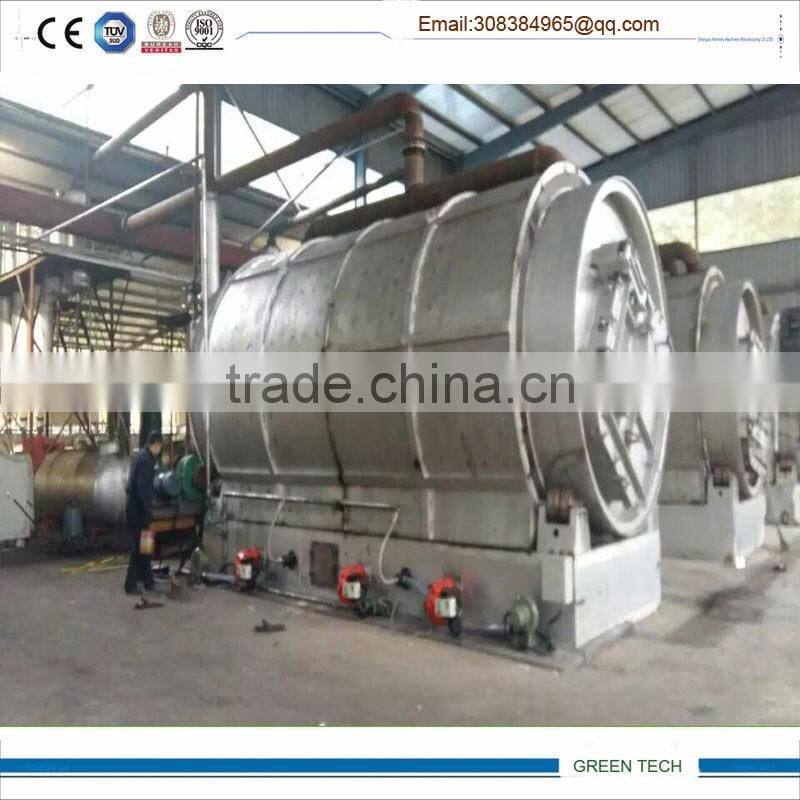

2.Pyrolysis:

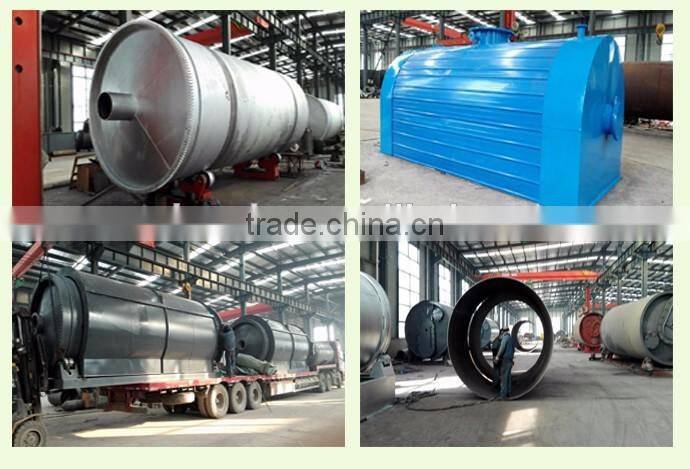

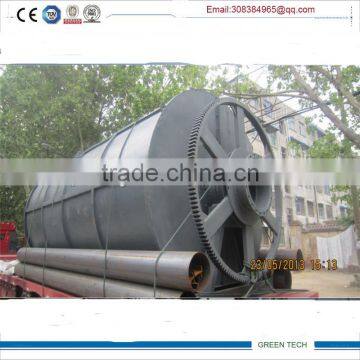

Include a reactor and catalyst room. Heat the reactor by coal/wood/oil/natural gas.
This part will produce high temperature oil gas, the oil gas then flow into the next system.
3. Condensing:
Oil gas come out from the reactor and catalyst chamber then cooling down in this part.
Condensing system include condenser pipe, oil water separator, horizontal condenser
and waste gas condenser. This will make the oil yield to the maximum.
4.Waste gas recovery:
This part mainly deal with the gas that cannot be condensed. The whole process is very
steady and high efficiency.
5. Discharge:

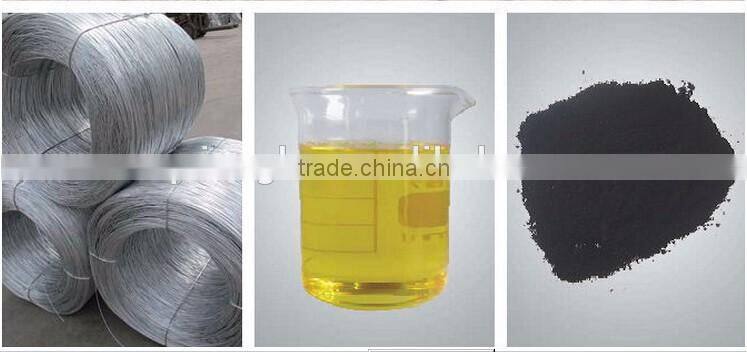

After finished oil produce, the temperature of reactor can be cooled down, When the
temperature falls down to 40 degree then carbon black can be discharged automatically
by the way of anticlockwise rotate the reactor. The carbon black will drop into slag pool
and then use screw conveyor to clean the slag pool. After discharging the carbon black,
we can discharge the steel wire. There is steel wire hook in the auto-feeder, we only need
put the steel wire hook into the reactor, and start the motor, the steel wire can be pulled out
easily, there is no need for workers to contact the reactor, it is very convenient.
