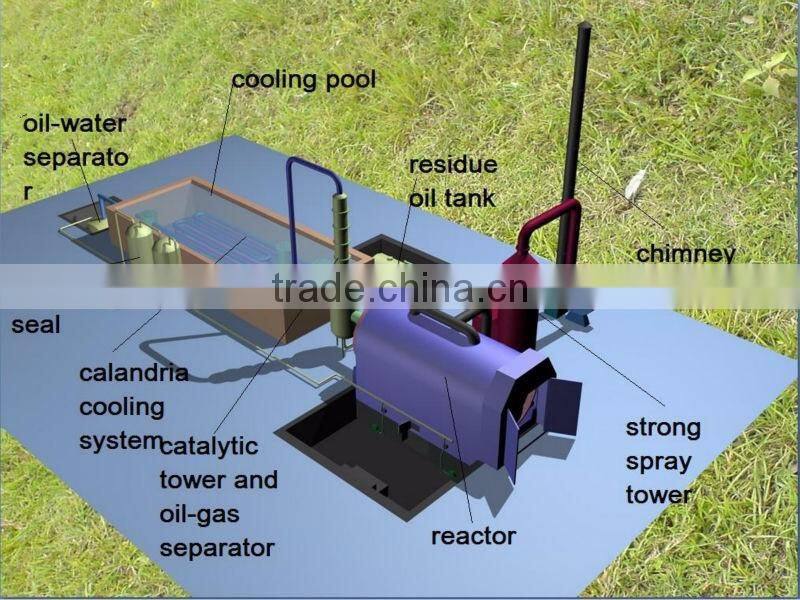

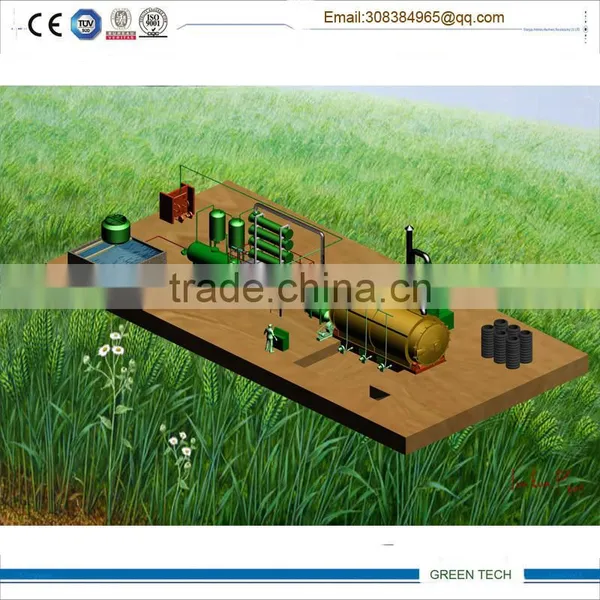

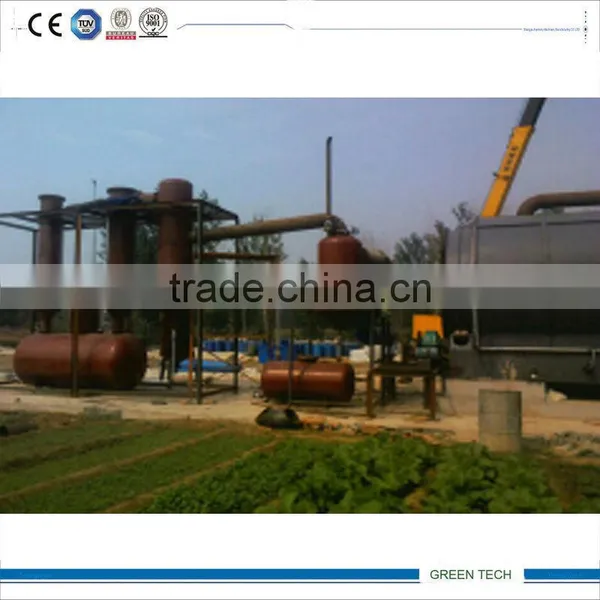

Working process of Equipment for rubber pyrolysis

1.Feed raw materials:
The raw material can be waste tire/waste plastic/waste rubber. Always feed by the auto feeder.

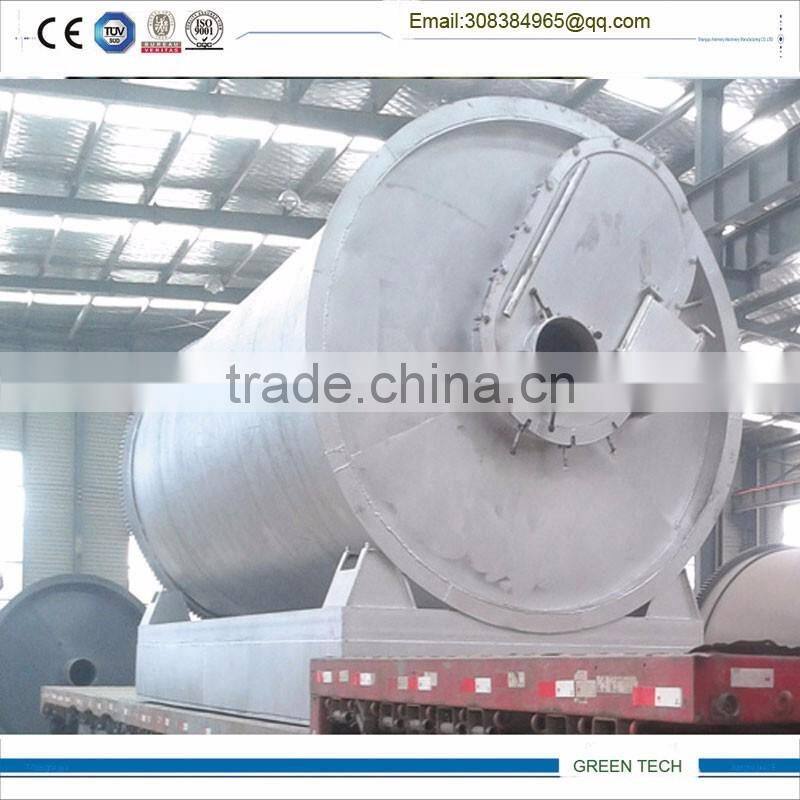

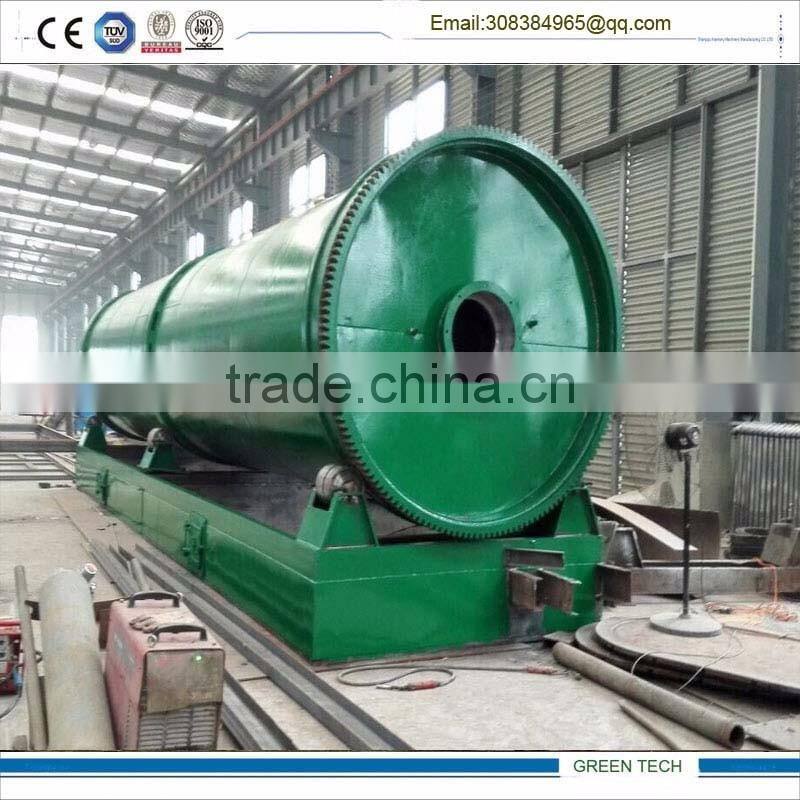

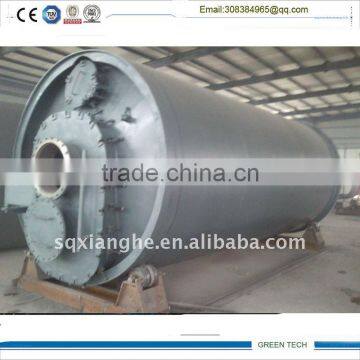

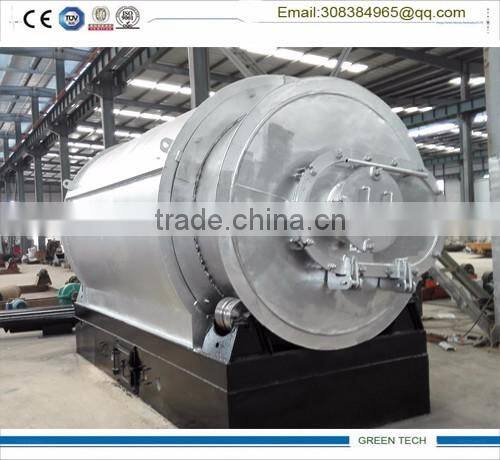

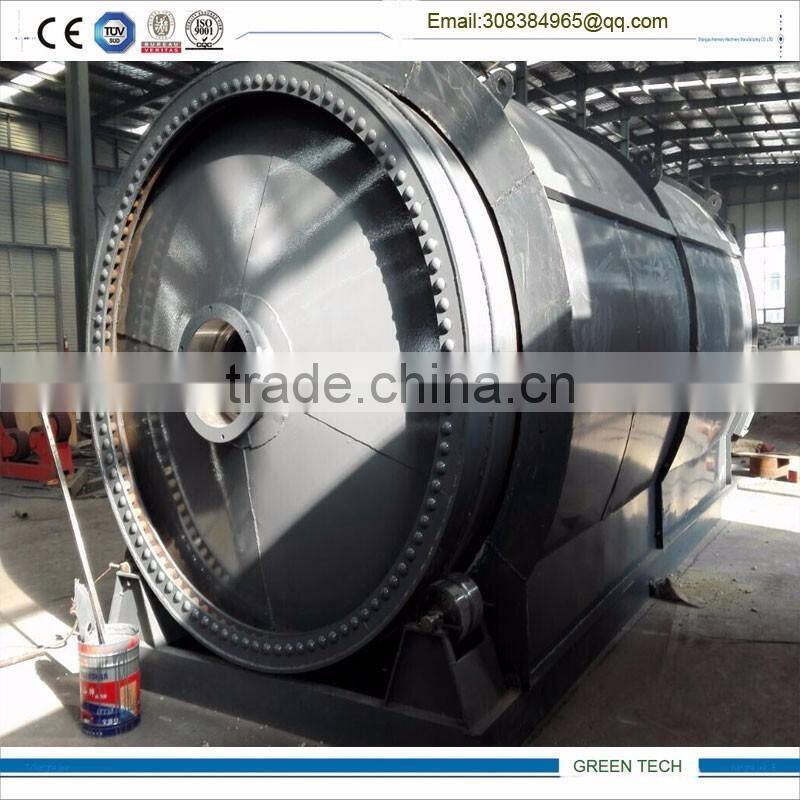

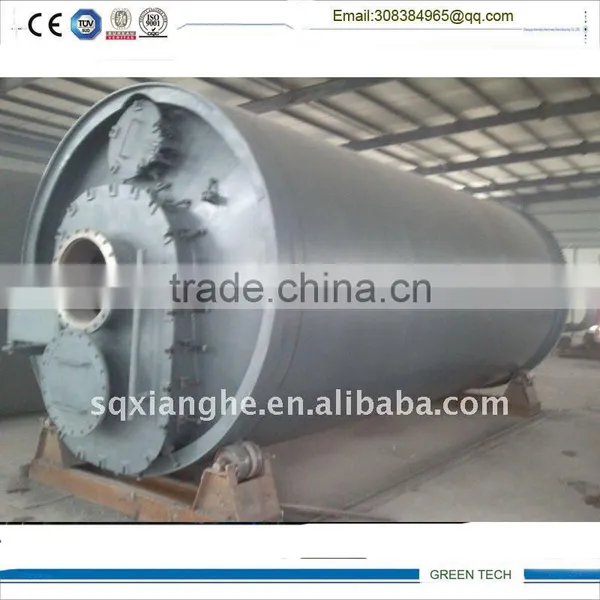

2. Pyrolysis:

Include a reactor and catalyst room. Heat the reactor by coal/wood/oil/natural gas.

This part will produce high temperature oil gas, the oil gas then flow into the next system.

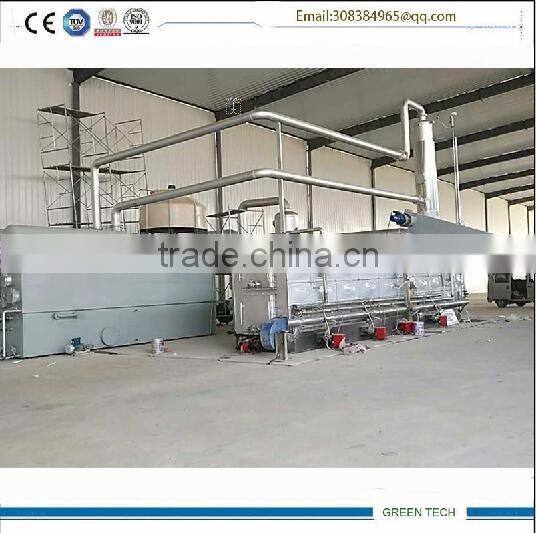

3. Condensing:

Oil gas come out from the reactor and catalyst chamber then cooling down in this part.

Condensing system include condenser pipe, oil water separator, horizontal condenser

and waste gas condenser. This will make the oil yield to the maximum.

4.Waste gas recovery:

This part mainly deal with the gas that cannot be condensed. The whole process is very

steady and high efficiency.

5. Discharge:

After finished oil produce, the temperature of reactor can be cooled down, When the

temperature falls down to 40 degree then carbon black can be discharged automatically

by the way of anticlockwise rotate the reactor. The carbon black will drop into slag pool

and then use screw conveyor to clean the slag pool. After discharging the carbon black,

we can discharge the steel wire. There is steel wire hook in the auto-feeder, we only need

put the steel wire hook into the reactor, and start the motor, the steel wire can be pulled out

easily, there is no need for workers to contact the reactor, it is very convenient.

Final products

1) . FUEL OIL

It is the main product from the oil produce of pyrolysis process, widely used for industrial

and commercial purposes. Fuel oil composes of 45% to 53% of the total output.

2.) . CARBON BLACK

Carbon Black is the main product recycled by pyrolysis technology. The amount of recycled

carbon black is 30-35% (depend on the type of tyre) of the total amount of scrap tyres recycled

in the system. Carbon black can be used as raw material in many industries. We can further

process it and increase the mesh by grinding machine, or make it into carbon pellet by carbon

pellet machine.
