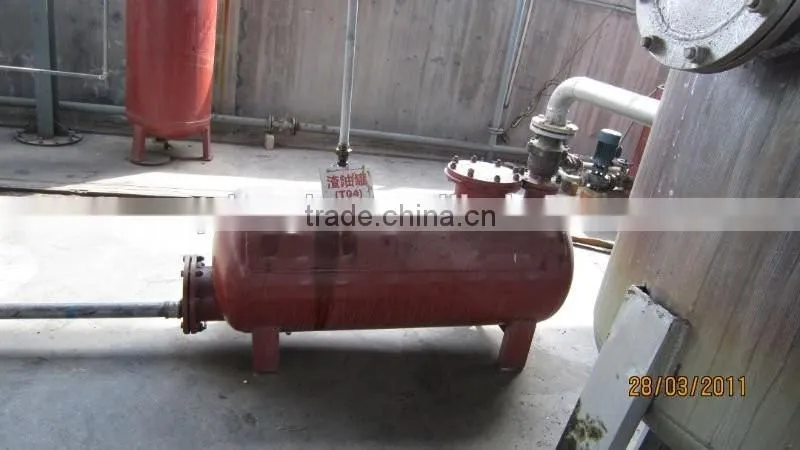

Help CenterUsed Tire Recycling Machine to Diesel Oil Pyrolysis and Distillation Combined Plant
Related Products
-
Completely Continuous Plastic Pyrolysis Oil Equipment 30ton per DayUS$ 250,000 - 360,000MOQ: 1 Set -
Tire to Fuel Oil Making Pyrolysis Machine 24hours-non Stop Large CapacityUS$ 250,000 - 360,000MOQ: 1 Set
-
100% Continuous Pyrolysis Plant of Tire Recycling Equipment to OilUS$ 250,000 - 360,000MOQ: 1 Set
-
Waste Tyre Disposal Equipment With CE Extract Tire Oil and Diesel OilUS$ 35,800 - 58,000MOQ: 1 Set
-
2016 New Style 10ton Plastic to Diesel Refinery Plant Saving FuelUS$ 30,000 - 50,000MOQ: 1 Set
1.Woking procss:

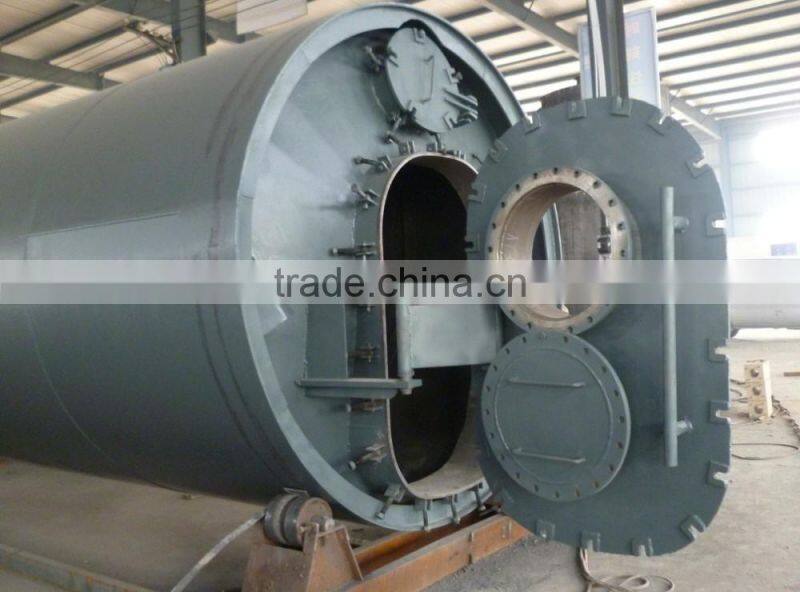

A,.loading tire in the reactor
B.close reactor door , heating the reactor
C.aftter heating solid tires change to ois gas
D. oil gas to to gas seperator, here, heavy oil deposit and come down to heavy oil tank

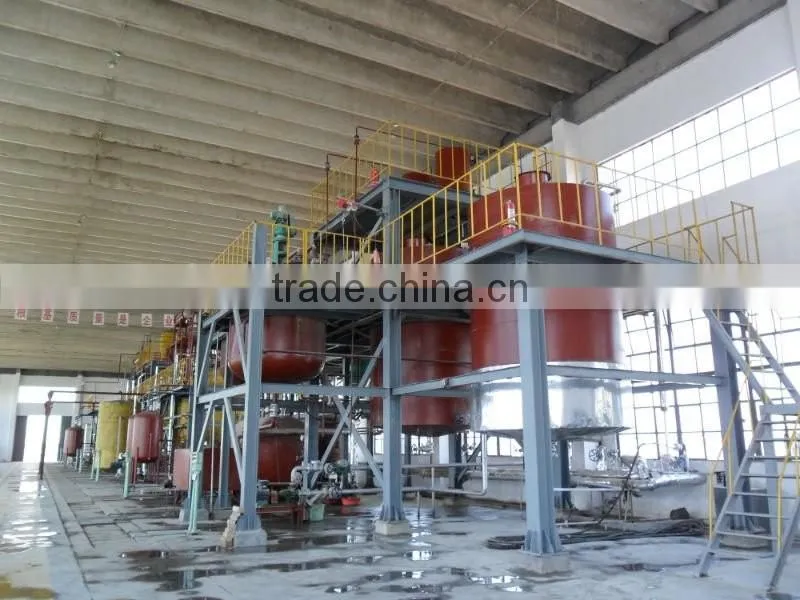

light oil to go oil distillation tower and catalyst tower there, oil gas do chemical reaction, and change to diesel oil gas
E. diesel oil gas go to cooling system,then the aeriform diesel change to liquid diesel and go in to light oil tank
F, after cooling, the non-;iquid waste oi gas go water sealing , after water sealing , these wate gas go back to buring chamber burned by gas gun to heating reactor
2.Technical parametres:
NO. |
Name |
Parameter |
1 |
The raw materials: |
waste tyres,/plastic, oil sludge |
2 |
Daily capacity: |
10 ton/day |
3 |

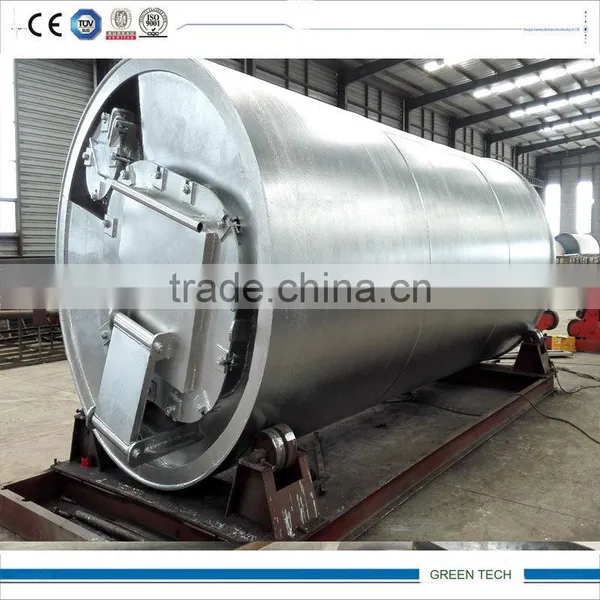

The size of reactor |
2800*6000mm 16mm thickness |
4 |
Reactor material |
Q345R |
5 |
Average oil productivity: |
30%-80%, |
6 |
Average carbon productivity: |
20%-35% |
7 |
Plastic oil rate |
30%-80% |
8 |
pyrolysis time |
6-8 hours |
9 |
Discharge time |
1.5 hour |
10 |
Feeding time |
3 hourS |
11 |
Cooling time |
3 hours |
12. |
Working pressure |
Normal /slightly negative |
13 |
Power |
18 kw |
14 |
Fuel |
Coal. Wood, gas etc |
15 |
Working area |
500 square meters |
16 |
Total weight |
35 000kgs |
17 |
Reactor rotate speed |
0.25-0.4/min |
18 |
Noise |
No less than 85DB |
19. |
Certificate |
Ce,.iso, |
20. |

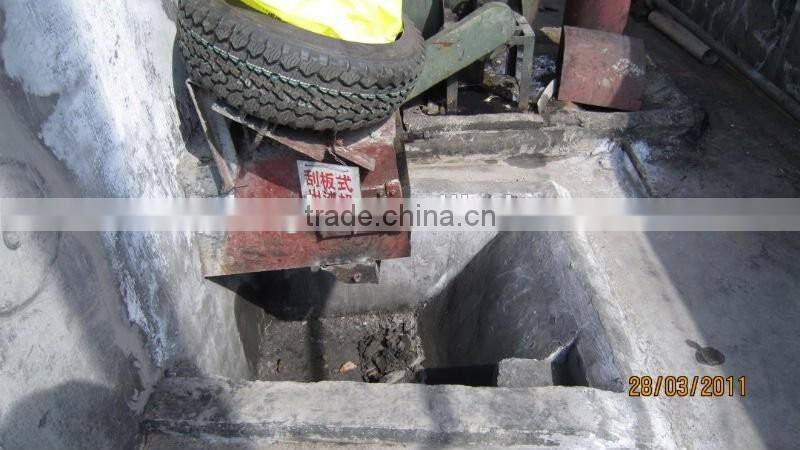

Carbon slag out |
Automatic |
3.Plant advantages:
A. )Carbon slag using new tech, slag in sealing way, keep sure no carbon powder flay in air, completely pollution free. Carbon slag automatic and slag more fast than normal design
B. ) Improved an simplified design of plant, more easy to use, and cut down plant cost All parts including small parts we use high standard material to keep our quality for long term usage.
C.)Dedust system use latest design,3-level dedust system, no black smoke emit to air by chimney

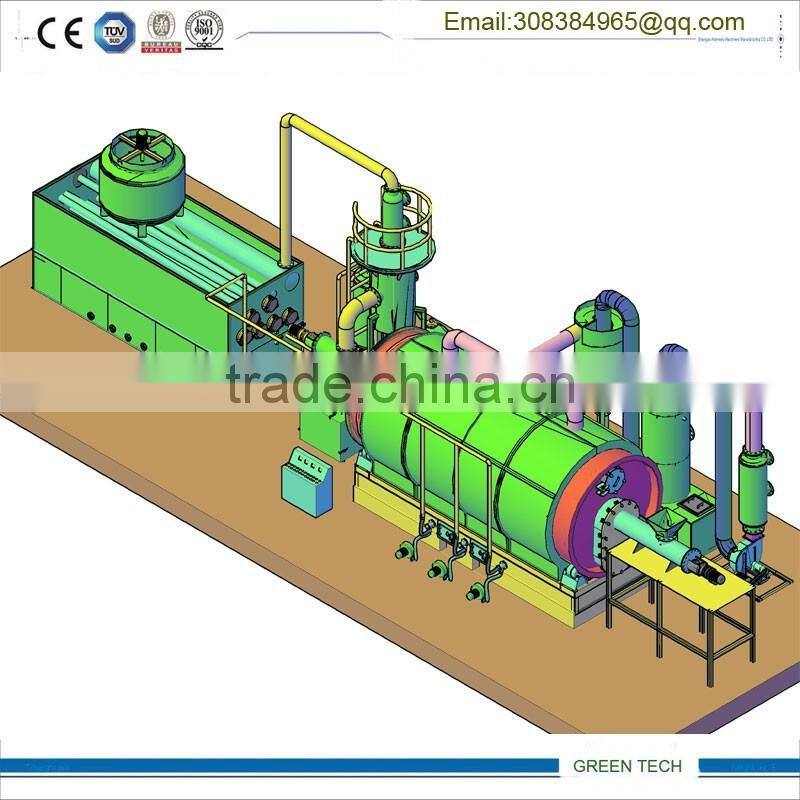

D) pyrolysis and distillation combined machine, saving working land, saving fuel ,saving working time time
E) good after sale service
5.Oil parameter
Number |
Project |
Units |
Technology parameter |
1 |
Flash point |
°C |
35 |
2 |
Condensation point |
°C |
-10 |
3 |
Water yield of distillation |
%(V/V) |
trace |
4 |
Degree of corrosion of copper sheet(500c,3h) |
level |
1b |
5 |
Mechanical admixture |
|
Not have |
6 |
Sulphur content |
%(V/V) |
0.4 |
7 |
Density |
|
0.88-0.9 |
8 |
Fuel value |
Ki |
10500 |
Number |
Project |
Units |
Technology parameter |
1 |
Flash point |
°C |
45 |
2 |
Condensation point |
°C |
-10 |
3 |
Water yield of distillation |
%(V/V) |
trace |
4 |
Degree of corrosion of copper sheet(500c,3h) |
level |
1b |
5 |
Mechanical admixture |
|
Not have |
6 |
Sulphur content |
%(V/V) |
0.1 |
7 |
Density |
|
0.85-0.86 |
8 |
Fuel value |
Ki |
10000 |
