Home > Products > tyre to diesel > 40ton Tyre to diesel recycling machine fully continuous pyrolysis equipment
40ton Tyre to diesel recycling machine fully continuous pyrolysis equipment
- 20 Set / Sets per Month
- lianyungang qingdao shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tire Machine | Tire Machine Type: | Tire Recycling Machine |
Place of Origin: | Henan, China | Brand Name: | XHZT | Model Number: | XHLX-40-60 |
Voltage: | 220/380V | Power(W): | 230kw | Dimension(L*W*H): | 12000*2500*2000MM |
Weight: | 45000KGS | Certification: | ISO,CO | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1. Plant Features:
1) widely usage
Can be used for tyre 5-10cm,plastic,rubber ,oil sludge, cooking waste ,live waste, oil sand ,oily soild
2) static pyrolysis ,getting higher quality oil, less dust in oil
3) large capacity
24hours produce 40-30 Ton material
4) continuous pyrolysis, no need cooling reactor, saving fuel, saving working time
5) The plant can working 25dyas*24hours without stop, fully continuous
6) Continuous feeding without stop
7) Continuous slag out without stop
8) Non-liquid gas can be reused to support heating for heating reactor , saving fuel energy
9) good pressure tightness, safe
10) Get diesel directly
2. Technical parameter
Reactor size | (L*W*H)12*2*2.5m |
volumn | 60M3 |
material | Q345R/Stainless steel |
Work pressure | Normal pressure/slightly negative pressure |
Process capacity /24hours | 60 Ton tyre |
40 Ton plastic | |
Oil sludge 40-60Ton | |
Oil sand 40-60TON | |
output | Base oil |
Working principle | Oxygen free pyrolysis |
workers | 1 |
power | 20/40kw |
voltage | 220v/380v |
Power consumption/24hours | 230 kw |
Water consumption | 4-6Ton |
Feeding time | Continuous feeding |
Carbon discharge time | Continuous slage out |
working life time | 4-5yeat |
Slag temperature | 150℃ |
Fuel | Gas, oil |
Pyrolysis way | Static pyrolysis, non-rotate |
Slag way | Continuous slag out |
Dust smoke temperature | 350℃ |
Pyrolysis temperature | 280-350℃ |
Max-temperature | 600℃ |
oil come temperature | 350℃ |
Raw material delivery speed | 0.4-2m/min |
3.Work-flow:
4.Pyrolysis Plant Type Difference
Type | Feeding way | Heating way | Heating fuel | Reactor type | Pyrolsysis way | environmental effect | Featurs |
Batch | By human | Direct /indirect heating | Coal, wood, oil, gas | Round type/cylinder | Rotation pyrolsysis | environmental | After one batch need to cool down |
Semi-continuous | Auto-feeder | Direct /indirect heating | Coal, wood, oil, gas | Round type/cylinder | Rotation pyrolsyis | environmental | Need to cool down to slag |
Fully continuous | Auto-feeder | Indirect | Oil,gas | Cuboid/rectangular | Static pyrolsysis output oil with less dust, oil with better quality | Less dust, more environmental | No need to cool Saving fuel and working time |
Working details:
batch type:
one day one batch, day time heating pyrolysis, night time cooling .
semi-continuous type:
First time feeding 10Ton and heating, after 8 or 6 hours feeding second time 6 Ton and heating and pyrolsyis for another 6 hours
then feeding third time 4 Ton . And continue heating, after 5hours, this 5 Ton raw material complete pyrolsyised ,then cooling down reactor , and slag out. Semi-continuous pyrolysis means feeding 3 times (intermittent) and slag one time.
Compare to batch type, this semi-continuous plant just add auto feeder. this is not real meaning continuous.
fully continuous pyrolsysis,
continuous feeding without stop and the plant running 24hours*26dayst untill plant overhual.
continuous feeding , and continuous slag out.

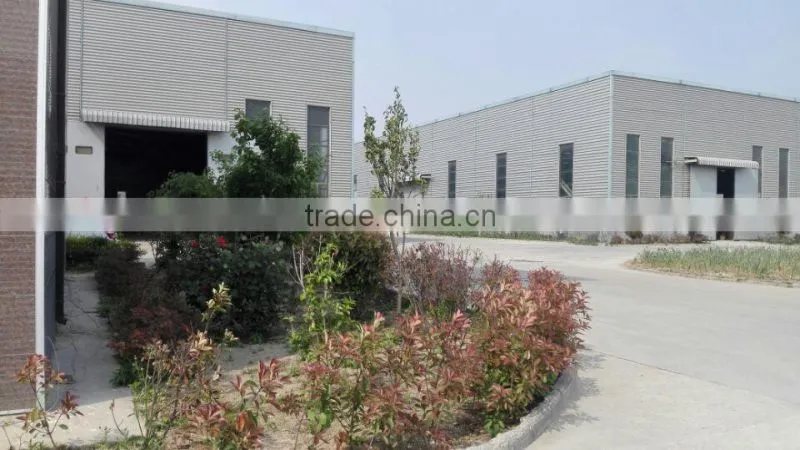

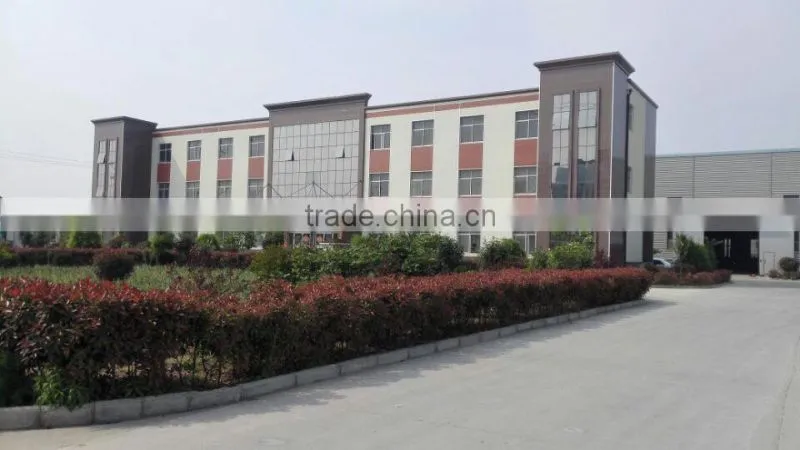

6.Avout us
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
7.Our products:
Pyrolysis plant (convert waste to fuel oil ) | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 5Ton 10ton 12ton 15ton |
Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton |
| Type | Daily capacity | Used for | Final Product and usage |
Distillation plant Refining fuel oil/waste oil diesel |
Fully continuous type |
5ton 10ton 15ton 20ton 30ton 40ton | Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
|
diesel for engine
|
8.Paymnt term and delivery
1.) Payment term : 30% TT advance payment, balance paid by Sight LC or TT
2. )Delivery: within 50 days after getting your deposit payment loading plant
3.)Installtaion: we will send engineer for guiding installation for free,
buyers offer round-tickets and accommodation
4.)Warranty period : whole sent plant is 24month (easy-ware parts not included ),
for reactor is 4 years.
