Desulfurztion and Decoloration Used Oil Recycling Plant ,Oil Distillation plant

Used Oil Recycling  Plant By Distillation Way  desulfurztion and decoloration

1.Technical parameter of the plant

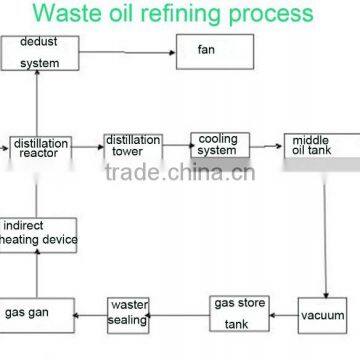

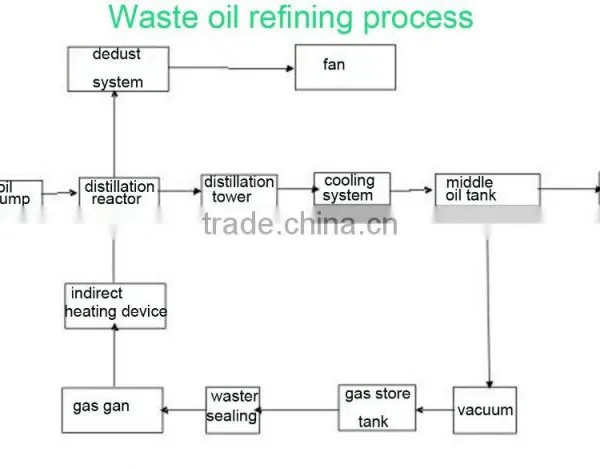

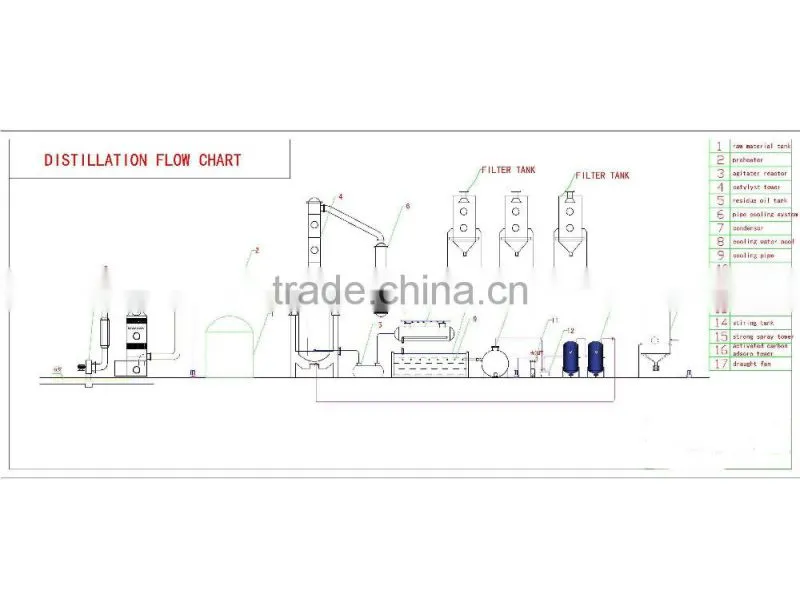

2.Plant draft

3.Plant  technical features:

1.By this technology we can remove sulfer in oil, by disitllaiton way and catalyst way to remove sulfur in oil.

2.remove bad smell in oil, this is very important for oil producer.

3.make oil good light color,imporve oil quality and make iul more clear and pure.

4. negative pressure disitllaiton , saving fuel.and make sure non-explosion.

5.New technology , 24hours non-stop distillation, this also saving fuel and saving heating time .

6.Good after serverivce, over-sea after sevice is avaliable .

7.New tech of dedust system, make sure pollution free .

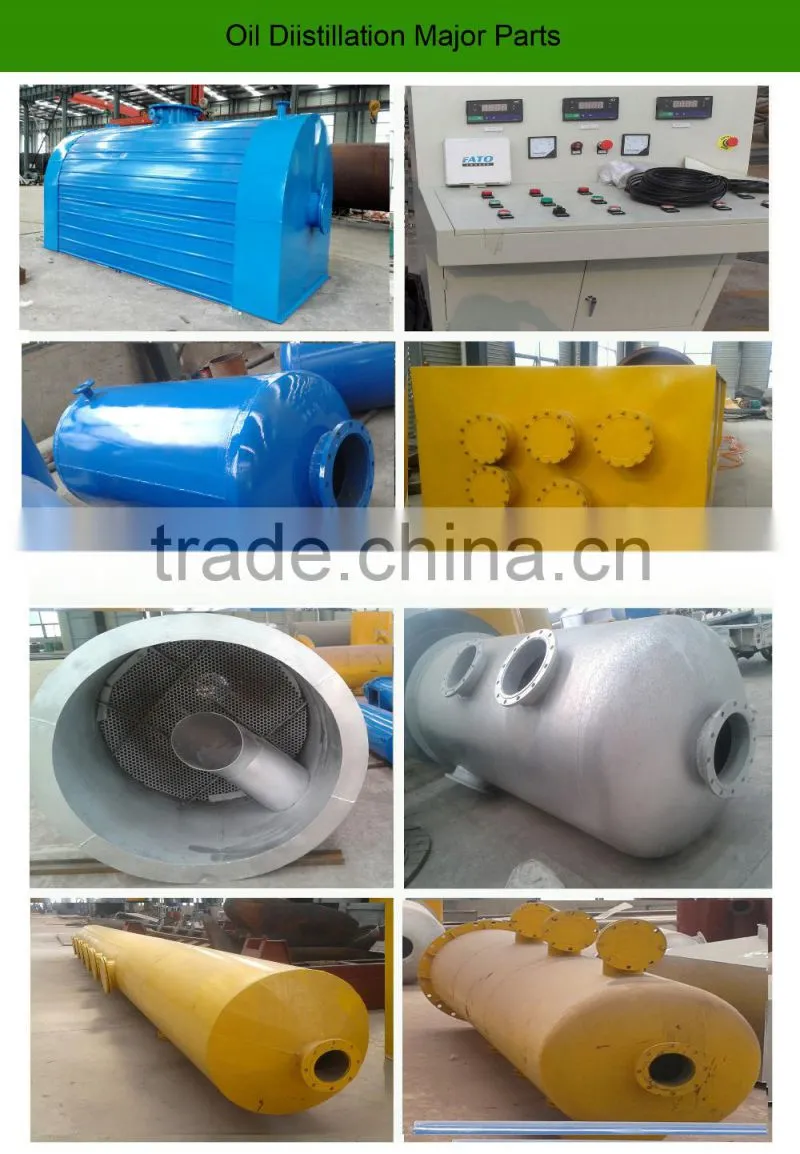

4.Major parst

A.preheater

Make remaining hot from the spiral flue outside the reactor to preheat the raw material oil ,it is physical reaction

B.reactor

After preheating ,the hot oil will be transported into the reactor by the oil pump !Before the hot oil into the reactor,there must be some oil at the bottom of the reactor and be heated already!due hot oil has already with some temperature so temperature will be rise more quikly than normal temperature oil in this way it can save energy ,improve effeciency! In this process liquid oil become oil gas little by little !it is physical reaction

C,Catalyst tower

It has three tower layer inside the catalyst tower

Every layer will be put catalyst for impurities removal ,decolor and smell removal according to raw material oil! To purify oil !it is Chemical reaction

Catalyst formular will be tailor make according to customer

E.Cooling system including pipe condenser ,condenser ,calandria cooling system and cooling tower

then the clean oil gas will go though the strong cooling system to low down the temperature quickly

F,oil water separator tank

The clean oil gas will be cooling down to become liquid oil into the oil water separator tank,it is physical reaction

G.stainless steel pipe filter

Pipe filter with filter bag which can prevent the invisible impurities size :300-500 mesh though ,it is physical reaction ,to purify oil

H.nagative pressure system

can make the running temperature low down,save energy ,improve efficiency ,ensure the safety of running !

I.water sealing

There will be few flammable gas which can not be cooling down in the normal condition after passing though the cooling system,though water sealing it will be go though gas burner ,recycle used by heating the reactor !

After the full process ,if the oil still can not reach your aim

Then the spare equipment begin work

A.stiring tank,

some addtivites will be add into the stiring tank to adjust oil index ,like flash point improver and so on!it is chemical reaction

B.filter tank

3pcs filter tank ,inside will be put filter sand ,it is also a kind of catalyst

After oil goes though filter tank ,the color will be very good!it is also chemical reaction

5.Other specicifaciton for your references:

6.Payment term and delivery

1. Payment term: 30% TT advance payment 70%TT payment before plant shifting .
2. Delivery time: for batch type plant, loading plant within 20days after getting your advance payment, for fully continuous plant, loading plant within 50days
3. About installation: we will send technician for guiding installation and test machine and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician.
4. Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 3 years. We will not be responsible for problems caused by personal wrong operation5.

5. Quotation period :30 days

 7.Certificates

 8.Our factory

 8.Usage of distillated  oil

1.Can be used for hevy engine vhicles mixed with standard diesel

2.put some lubriciant will change this oil to lube oil for machinery lubrications.

3.as fuel oil used for power station , cement factory and heating suppliing company
