Crude Oil Refining Equipment ,waste Oil Recycling Machine 5tpd
US$ 38,000 - 68,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Flow:
5 TON/DAY
Working Pressure:
Negative Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Lianyungang qingdao shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tyre Oil Purification MachineUS$ 50,000 - 80,000MOQ: 1 Set -
With CE_&ISO Used Lubricating Oil Recycling Vacuum Distillation MachineUS$ 46,800 - 68,000MOQ: 1 Set
-
New Condition Used Oil Decoloration Distilllation Equipment 10TPDUS$ 63,000 - 65,000MOQ: 1 Set
-
Black Oil and Sludge Oil Distillation EquipmentUS$ 56,000 - 72,000MOQ: 1 Set
-
Best -selling Tyre Oil Refinery Distillation Machine 24hours Non-stopUS$ 56,000 - 88,000MOQ: 1 Set
Condition
New
Flow
5 TON/DAY
Working Pressure
Negative Pressure
Place of Origin
Henan, China
Brand Name
XHZT
Model Number
XHZL-05
Usage
Other, waste recycling
Voltage
380V
Power(W)
18kw
Dimension(L*W*H)
1800*3000mm
Weight
25 TON
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

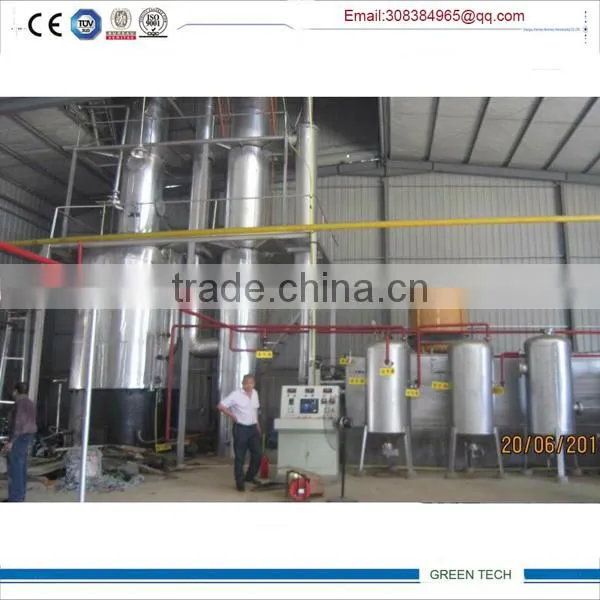

Crude oil refining equipment ,waste oil recycling machine 5tpd
1. Machine major parts and working process
.A. preheater
Make remaining hot from the spiral flue outside the reactor to preheat the raw material oil ,it is physical reaction
B.reactor
After preheating ,the hot oil will be transported into the reactor by the oil pump !Before the hot oil into the reactor,there must be some oil at the bottom of the reactor and be heated already!due hot oil has already with some temperature so temperature will be rise more quikly than normal temperature oil in this way it can save energy ,improve effeciency! In this process liquid oil become oil gas little by little !it is physical reaction
C,Catalyst tower
It has three tower layer inside the catalyst tower
Every layer will be put catalyst for impurities removal ,decolor and smell removal according to raw material oil! To purify oil !it is Chemical reaction
Catalyst formular will be tailor make according to customer
E.Cooling system including pipe condenser ,condenser ,calandria cooling system and cooling tower
then the clean oil gas will go though the strong cooling system to low down the temperature quickly
F,oil water separator tank
The clean oil gas will be cooling down to become liquid oil into the oil water separator tank,it is physical reaction
G.stainless steel pipe filter
Pipe filter with filter bag which can prevent the invisible impurities size :300-500 mesh though ,it is physical reaction ,to purify oil
H.nagative pressure system
can make the running temperature low down,save energy ,improve efficiency ,ensure the safety of running !
I.water sealing
There will be few flammable gas which can not be cooling down in the normal condition after passing though the cooling system,though water sealing it will be go though gas burner ,recycle used by heating the reactor !
.A. preheater
Make remaining hot from the spiral flue outside the reactor to preheat the raw material oil ,it is physical reaction
B.reactor
After preheating ,the hot oil will be transported into the reactor by the oil pump !Before the hot oil into the reactor,there must be some oil at the bottom of the reactor and be heated already!due hot oil has already with some temperature so temperature will be rise more quikly than normal temperature oil in this way it can save energy ,improve effeciency! In this process liquid oil become oil gas little by little !it is physical reaction
C,Catalyst tower
It has three tower layer inside the catalyst tower
Every layer will be put catalyst for impurities removal ,decolor and smell removal according to raw material oil! To purify oil !it is Chemical reaction
Catalyst formular will be tailor make according to customer
E.Cooling system including pipe condenser ,condenser ,calandria cooling system and cooling tower
then the clean oil gas will go though the strong cooling system to low down the temperature quickly
F,oil water separator tank
The clean oil gas will be cooling down to become liquid oil into the oil water separator tank,it is physical reaction

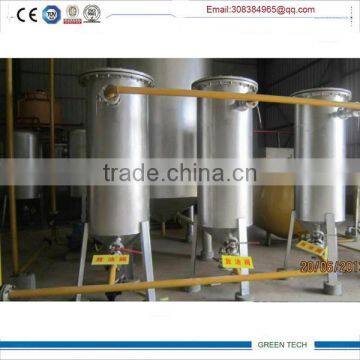

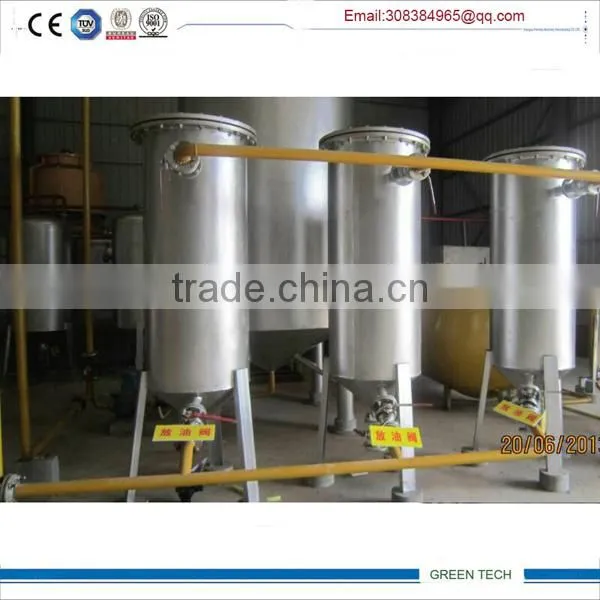

G.stainless steel pipe filter
Pipe filter with filter bag which can prevent the invisible impurities size :300-500 mesh though ,it is physical reaction ,to purify oil
H.nagative pressure system
can make the running temperature low down,save energy ,improve efficiency ,ensure the safety of running !
I.water sealing
There will be few flammable gas which can not be cooling down in the normal condition after passing though the cooling system,though water sealing it will be go though gas burner ,recycle used by heating the reactor !

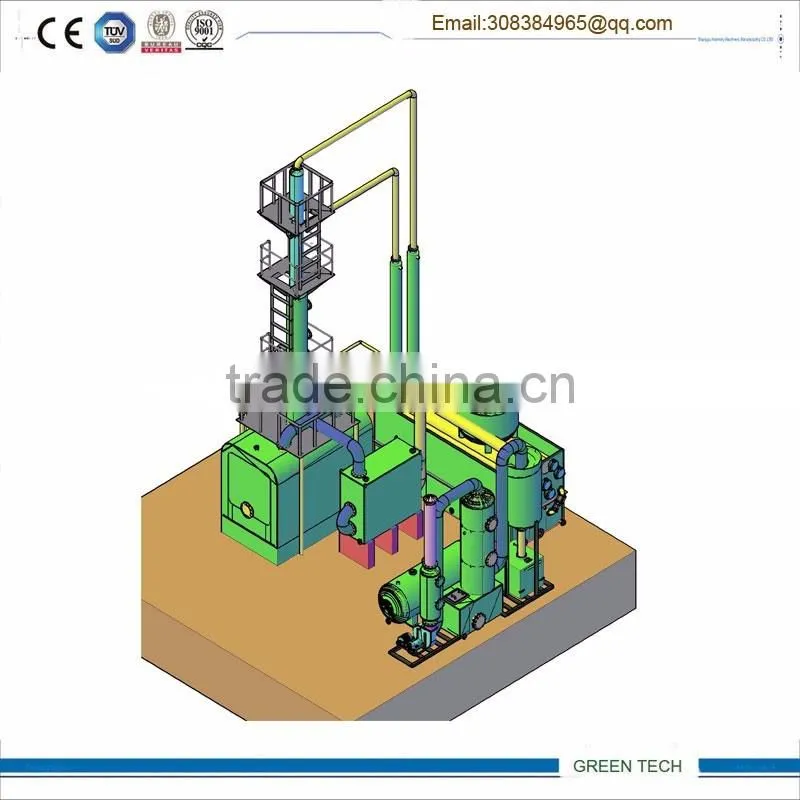

Major parts
Detailed images
Loading photos
Terms and conditions
1. Payment term: 30% TT advance payment 70%TT payment before plant shifting .
2. Delivery time: for batch type plant, loading plant within 20days after getting your advance payment, for fully continuous plant, loading plant within 50days
3. About installation: we will send technician for guiding installation and test machine and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician.
4. Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 2 years. We will not be responsible for problems caused by personal wrong operation
