HOT -SALE 10tpd New generation pyrolysis oil distillation refinery machine
1.Main equipment list
1. Each set of unit is comprised of the following eight parts:

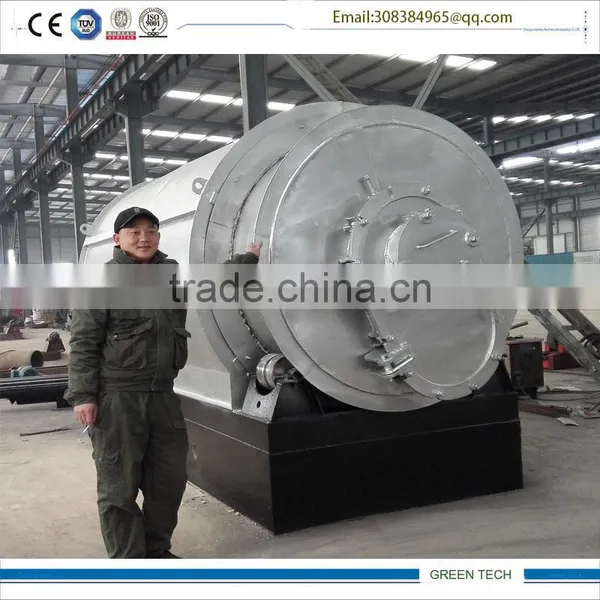

a. Reboiler
b. Fractionating tower
c. Pressure release device
d. Central electric control system
e. Condensation system
f. Fuel gas heating system (exhaust treatment system)
g. Air heater
h. Flue dust collecting system
2. Domestic origination:
a. The whole set installment's production entire process is moves in the smokeless tasteless environment, the environmental protection effect is good.
b. The pressure release device operates through water circulation, which greatly improves the security of the system.
c. The release of pressure during the production dramatically increases the output within certain time and meanwhile improves the quality of oil.
d. The heating system adopts hot air heating technology, which improves the safety performance of production and heating efficiency.
e. Highly effective fuel gas heating system. In refinery process, when is heated up after the gas amounts to 150 degrees Celsius, will produce the gas which the massive normal temperature able to meet the demands of domestic market except the domestically produced crude oil in accordance with the news publicized by China Petroleum & Chemical Corporation. Since 2008, the international price of crude oil increases time and again, and the price of each bucket of crude oil has exceeded 100 dollars (quotation from OPEC in February 2008).
Technical parameter:
Distillation reactor
type | Technical parameter | ||||
Steel thickness(mm) | daily disposal(T) | daily power(°C) | daily water(m3) | daily coal(kg) | |
8m3 /5T | 12 | 5 | 80 | 0.5 | 500-600 |
12m3 /8T | 12 | 8 | 120 | 0.8 | 700-900 |
15m3 /10T | 16 | 10 | 180 | 1.5 | 1200-1400 |
30m3 /20T | 16 | 20 | 280 | 2.5 | 1500-1600 |
Catalyst tower
type | Technical parameter | |||
thickness of tower(mm) | dia. of tower(φ) | high of tower(mm) | tray quantity of tower(layer) | |
8m3 /5T | 6 | 600 | 2800 | 3 |
12m3 /8T | 8 | 700 | 3600 | 3 |
15m3 /10T | 10 | 800 | 3800 | 4 |
30m3 /20T | 10 | 800 | 4600 | 4 |
Work-flow:

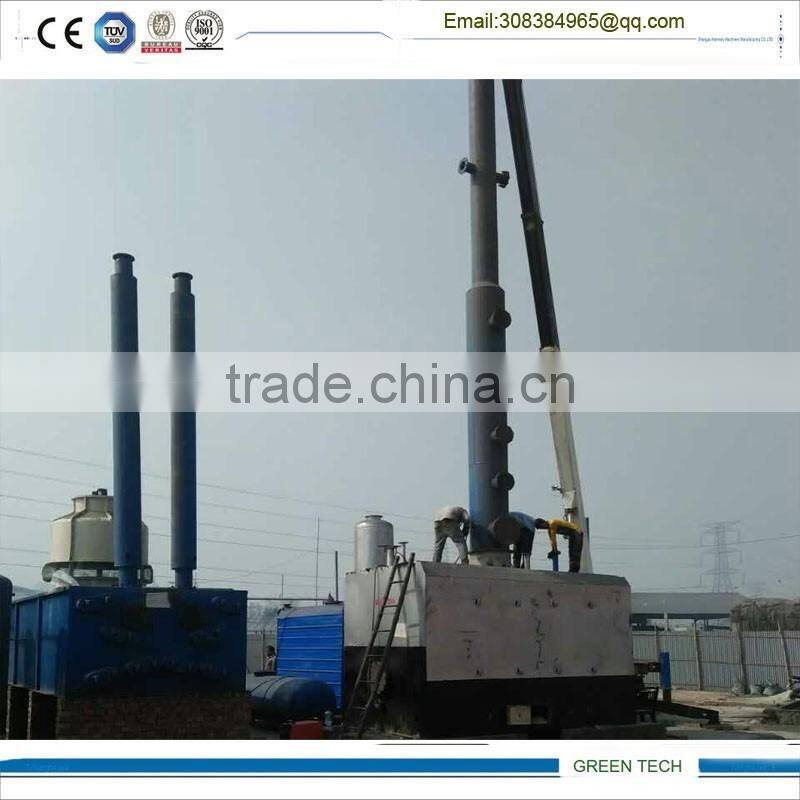

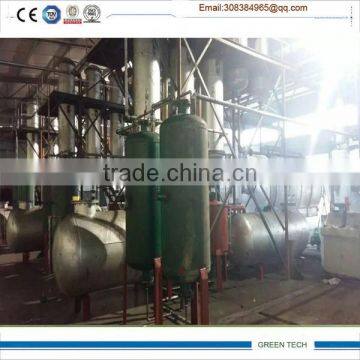

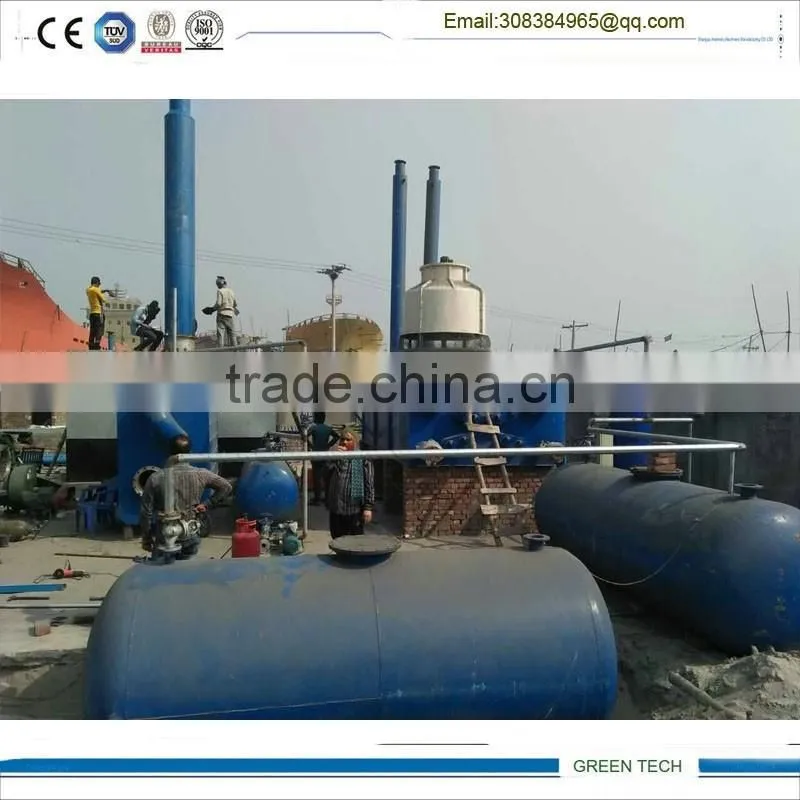

Installlation picture

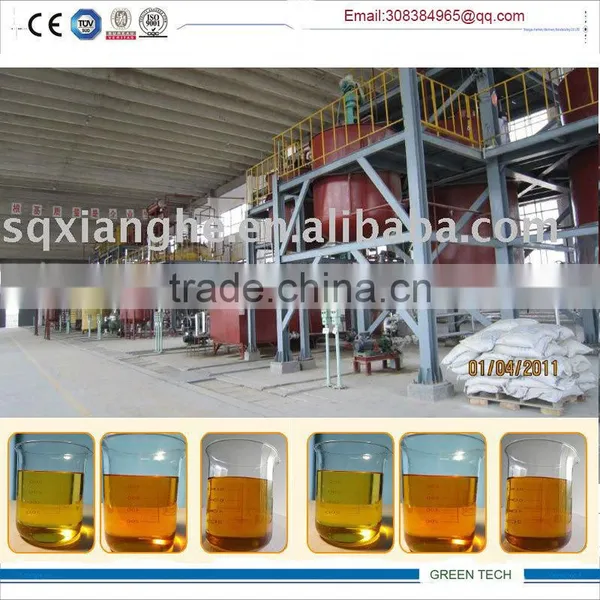

Oil before and after distillation
Project | diesel | standard |
Oxidation stability | 2.2 | ≤2.5 mg/100ml |
Sulfur content | 0.3 | M/m≤0.2 |
10% steamed residual carbon residue | 0.33 | M/m≤0.3 |
Ash content (10%) | 0.16 | %m/m≤0.01 |
Waste content (10%) | traces | / |
Mechanical impurities | / | / |
Density (g/ml) | 0.85 | 0.83-0.87 |
Solidifying point ( ℃) | -10 | 0 |
Flash point (closed ) ( ℃) | 45 | 55 |
Movement viscosity | 3.5 | (20 ℃) mm2/s 3.0-8.0 |
Combustion value(Kcal) | 9500 | 8500 |
colority | 1.2 | ≤3.5 |
cetane number | 40 | 45 |
Acidity | / | MGkoh/100ml≤7 |
Plant Advantages
1).This achievement essential equipment adopts the decompression; catalyzed split craft and the product chemistry extract technology.
2).Provides the environmental protection equipment is perfect. For instance waste gas burner and smoke dust removal room.
3).Adopts the simple chemistry method, has solved the product color and the unusual smell.
4).The oil extraction rate of the pure crude oil is not lower than 80%
5).This equipment design is reasonable, manufacture craft is advanced, high automatically, and the complete safety equipment .
Payment term and conditions:
1.) Payment term: 30% TT advance payment 70%TT payment before plant shifting . 2.) Delivery time: for batch type plant, loading plant within 20days after getting your advance payment, for fully continuous plant, loading plant within 50days
3.) About installation: we will send technician for guiding installation and test machine and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician.
4.) Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 3 years. We will not be responsible for problems caused by personal wrong operation
