2015 lower cost higher profitable no pollution continuous waste plastic pyrolysis plant
1. The Raw Material For Pyrolysis Machine
NO. | Raw material | Note |
1 | Waste tyre | Steel tyre ,Nylon tyre ,Bick tyre |
2 | Waste plastic | PE,PVC,Waste washed mixture plastic from waste Paper Factory |
3 | Waste rubber | Shoes Soles,Cable Skin |
4 | oil sludge,waste oil sludge |
|
We have our own lab to test the oil output rate of your raw material ,welcome you contact | ||
2. Pyrolysis plant models and specification
Product Model | Specifications | Per batch capacity | Per day output | Containers | Gross weight | Power |
XH-2200*6000 | 2200mm*6000mm | 6ton | 3ton | 2*40HQ | 25ton | 11kw |
XH-2200*6600 | 2200mm*6600mm | 7ton | 4ton | 2*40HQ | 27ton | 11kw |
XH-2600*6000 | 2600mm*6000mm | 8ton | 5ton | 1*40HQ&1*FR | 30ton | 16kw |
XH-2600*6600 | 2600mm*6600mm | 10ton | 6ton | 1*40HQ&1*FR | 33ton | 17kw |
XH-2800*6000 | 2800mm*6000mm | 10ton | 6ton | 1*40HQ&1*FR | 36ton | 17kw |
XH-2800*6600 | 2800mm*6600mm | 12ton | 7ton | 1*40HQ&1*FR | 39ton | 17kw |
3.The available fuel for pyrolysis processing
NO. | Fuel |
1 | Oil(fuel oil, tyre oil, heavy oil etc..) |
2 | Natural gas |
3 | Coal |
4 | Firewood |
5 | Carbon black pellet |
4. End product percentage and useage( Example : raw material is tyre)
NO. | Name | Percentage | Usage |
1 | Tyre oil | 45% | * can be sold directly. * make diesel and gasoline by use oil distillation machine. * can be as fuel. |
2 | Carbon black | 30% | * can be sold directly. * make fine carbon by use carbon black refining machine. * make pellet by use carbon make pellet machine. |
3 | Steel wire | 15% | * can be sold directly. * make steel bloom by use hydraulic press-packing |
4 | Oil gas | 10% | * can be as fuel burn by use gas burn system (pyrolysis machine included) *extra gas also be storage as fuel for other heating. |

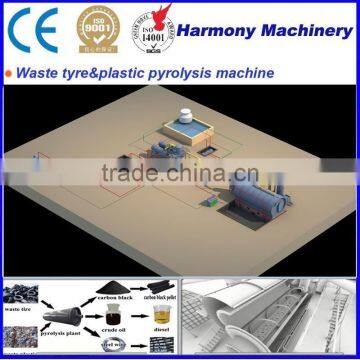

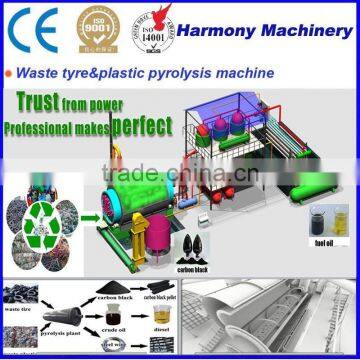

5.Machine 3D drawing flow chart and working processing
Working Process:
1. Make reactor rotate clockwise 0.4r/min, put raw material into reactor, close feeding door.
2. Burned the fuel material (coal,or wood,or natural gas ,oil ) in the furnace. Reactor will be slowly heated, when the temperature reach around 180 oC, oil gas will come out. Then go to cooling system and liquid to oil.
Some incondensable gas which can't cool down will be lead to furnace through a gas pipe It will be used to heat reactor.This can save your energy. Only the first 2 hours use energy for heating. After the first 2 hours mainly use gas, little energy is ok. After pyrolysis, all the oil gas come out from reactor, the temperature will fall down. Then make it rotate anticlockwise, carbon black discharging begin.
3. When the temperature deduce to 50 oC, worker can opened the door of reactor take steel wire out.
Main parts
6. Pyrolysis machine workmanship
7. The pyrolysis machine land required and workers
One set of pyrolysis machine itself needs about 300-400 square meters land add all lands for raw material , carbon black , big oil tank, and workers rest room and simple office. Totally need about 600-800square meters
8.Pyrolysis plant delivery
9. The pyrolysis machine installation and catalyst formula
We will give the foundation drawings to buyer after make the order .we will send engineer when buyer get the machine. The engineer mainly install the machine and training your workers.it is free, you just pay the ticket, accommodation and food is ok.
we will supply the catalyst formula after you order the machine,you can buy it at your local.
10.Factory show
11.Customer
12.Certificate
Running machine for your reference
