Waste Tire Pyrolysis Equipment

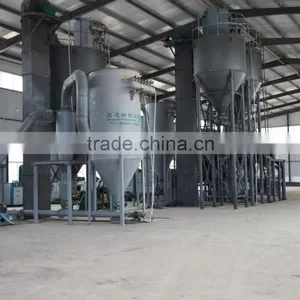

Waste Tire Pyrolysis Equipment thumbnail-1
Waste Tire Pyrolysis Equipment thumbnail-2
Waste Tire Pyrolysis Equipment photo-1
Waste Tire Pyrolysis Equipment photo-2
US$ 50,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Tire Machine
Tire Machine Type:
Tire Recycling Machine
Contact Supplier Request Quote Chat Now
Shangqiu Harmony Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Lian Yungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Tire Machine
Tire Machine Type Tire Recycling Machine
Place of Origin Henan, China
Dimension(L*W*H) 15X5X10
Weight 5 TON
Certification CE
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.pyrolysis waste tyre to furnace oil 2.made by Q245R special pressure vessel 3.good after sale service 4.with ISO&CE

overview of Large Capacity Equipment Pyrolysis Waste Tyre to Furnace Oil

tyre oil machine  can also be called fuel oil

1) Large Capacity Equipment Pyrolysis Waste Tyre to Furnace Oil to oil device turns "waste" into wealth.

Tire pyrolysis/recycling plant after  several processes like heating, cooling and so on,  turns the waste tires and plastic into crude/fuel oil, carbon black and steel wires.





2)The usage of final productions



Fuel oil--power plant factory

                glass factory

                cement factory

                ceramic factory

                aluminum factory

                boiler factory

                central heating factory

                painting factory



Carbon black--electric cable jacketing

                            conveyor ban

                            hose and  doormat

                            black nylon bag

                            rubber additive

                            automatic spare parts

                            heat isolation

                            black colorant in rubber materials

                            plastic pipes

                            industies rubber

                            products

                            fire fighting



Steel wires--be re-sale to steel factory







3)The formula of economic benefit analysis

The cost of 8 ton tire

A

Oil output

B=8ton*45%=3.6ton

Fule(coal):

C=0.8ton*price/ton

Electricity :

D=15kw*20hour

Wokers’salary

E=4(persons) *Price/Person

Crude oil

F=8ton*45%*Price/ton

Carbon black

G=8ton*35%*Price/ton

Tires wire

H=8ton*10%*Price/ton

If take waste truck tires as raw material,and DY-1-8   type as equipment;Economic benefit analysis of DY-1-8 type equipment

1.Daily cost:

a.Raw material:8 ton*1700.00RMB/ton=13600.00RMB

b.Fuel:0.4ton*800RMB/ton=320.00RMB

c.Water and electricity:15kw*20hour*0.71RMB/kw=213.00RMB

d.Workers’salary:4(persons) *50.00RMB/Person=200.00RMB

e.Tax(remark):free from tax for environmental protection equipment

f.Total:14333.00RMB



2.Daily turnover:

a.Carbon black:8ton*35%=2.8ton*1500RMB=4200.00RMB

b.Crude oil :8ton*45%=3.6ton*4500RMB/ton=16200.00RMB

c.Tires wire :8ton*10%=0.8ton*2500RMB/ton=2000.00RMB

Total :22400.00RMB



3.Daily gross profit :

Gross profit=daily turnover-daily cost=22400.00RMB-14333RMB=8067.00RMB







4) Large Capacity Equipment Pyrolysis Waste Tyre to Furnace Oil working process





1. Firstly, the raw material was put into furnace with auto feeder,thenseal the feed inlet system.
2. Secondly, burned the fuel material (coal, or wood, or natural gas, oil ) in the combustion system .
The reactor will slowly heat, when the temperature reach around 150 degree Celsius, it will produce oil gas .
3. Oil gas will be processed by our technology ,then gone to cooling system to cold liquid oil. The gas which can not be liquid under normal pressure ,which will be designed to back to combustion system to instead the fuel material to burn the reactor .which can save energy very much.
4. After finished oil produce ,the temperature of reactor will be down ,in same time ,carbon black will be discharged automatically.
5. Lastly, when the temperature fall to 100 degree Celsius, worker could opened the door of reactor to discharge of steel wire .
6. Then can start to another batch working.


5) Main features of Large Capacity Equipment Pyrolysis Waste Tyre to Furnace Oil:


Safety:

1. Professional sealing technology for cover, oil outlet

2. Heavy oil is separated which can avoid the problems of jam in later condensing

3. Vacuum system will prevent exhaust gas from going back to reactor and causing accident

4. Alarm, safety valves, thermometer, pressure gauge and safety valve

5. It is dangerous to burning exhaust gas (C1 to C4). In our process, it is transferred first through the safety device and a safety burning air muzzle



Environment friendly:

1. Well water dedusting system with high pressure nozzle and environmental damper inside can avoid black smoke

2. The exhaust gas will be directly recycled for heating reactor, no gas pollution

3. Every junction of the reactor is in good sealing situation with professional sealing material



Long service life:

1. Material: Q245R special steel plate, thickness 14mm

2. The service life of the reactor will be 8 years



Energy saving:

1. Well sealing for heatingsystem, no gas leak and saving fuel

2. The exhaust gas will be recycled for reactor heating



 6) Technical parameter



Technical parameter of DOING Large Capacity Equipment Pyrolysis Waste Tyre to Furnace Oil



Items

Contents

1

Equipment type

XH-1-6

XH-1-8

XH-1-10

2

Raw material

tires/Plastic

tires/Plastic

tires/Plastic

3

Structural form

Horizontal rotation

Horizontal rotation

Horizontal rotation

4

24-hour Capacity

6 ton

8 ton

10 ton

5

Oil yield

2.7ton

3.6 ton

4.5 ton

6

Operating pressure

Normal

Normal

Normal

7

Material of

Reactor

Q245R

Q245R

Q245R

8

Thickness of

Reactor

14mm

14mm

16mm

9

Rotate speed of

Reactor

0.4turn/minute

0.4turn/minute

0.4turn/minute

10

Total power

19.5KW

19.5KW

19.5KW

11

Mode of cooling

Water cooling

Water cooling

Water cooling

12

Cooling area of

condenser

40sqm

40sqm

65sqm

13

Kind of transmission

Internal gear drive

Internal gear drive

Internal gear drive

14

Noise dB(A)

≤85

≤85

≤85

15

Size of Reactor(D×L)

2200×6000

2200×6600

2600×6600

16

Working form

Intermittent operation

Intermittent operation

Intermittent operation

17

Delivery time

20days

20days

20days

18

Weight

25T

30T

35T
