Crude oil refinery plant to diesel oil 12 Ton Pyrolisis plant
1.the meaning of oil refining machinery
A.There are large quantity sludge oil during crude oil exploitation ,and many oil sand and oily waste ,by our machine we can change these oily waste to good diesel oil .
B.our machine take newst technology, can reuse the non-liquied oil gas as fuel ,
we use 3-level dedust device ,so the whole process there is no pollution.
C.the plant can be widely used for multiple material
2.see following material
3.High quality oil we get
4. Slag after pyrolysis and distillation
5.Plant parameter:
1 | The raw materials: | waste tyres, |
2 | Daily capacity: | 12 ton/day |

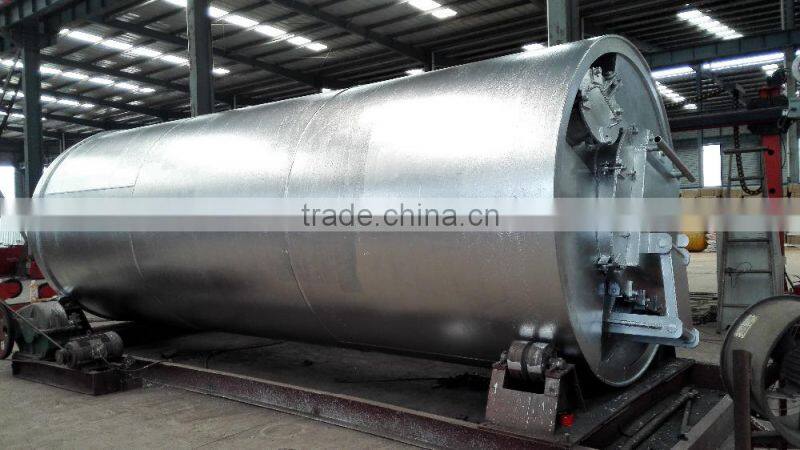

3 | The size of reactor | 2800*6600mm 16mm thickness |
4 | Reactor material | Q345R |
5 | Average oil productivity: | 30%-80%, |
6 | pyrolysis time | 6-8 hours |
7 | Discharge time | 1.5 hour |
8 | Feeding time | 3 hourS |
9 | Cooling time | 3 hours |
10 | Working pressure | Normal /slightly negative |
11 | Power | 18 kw |
12 | Fuel | Coal. Wood, gas etc |
13 | Working area | 1000 square meters |
14 | Total weight | 35 000kgs |
15 | Reactor rotate speed | 0.25-0.4/min |
16 | Noise | No less than 85DB |
17. | Plant working area | 700-1000 square meters |

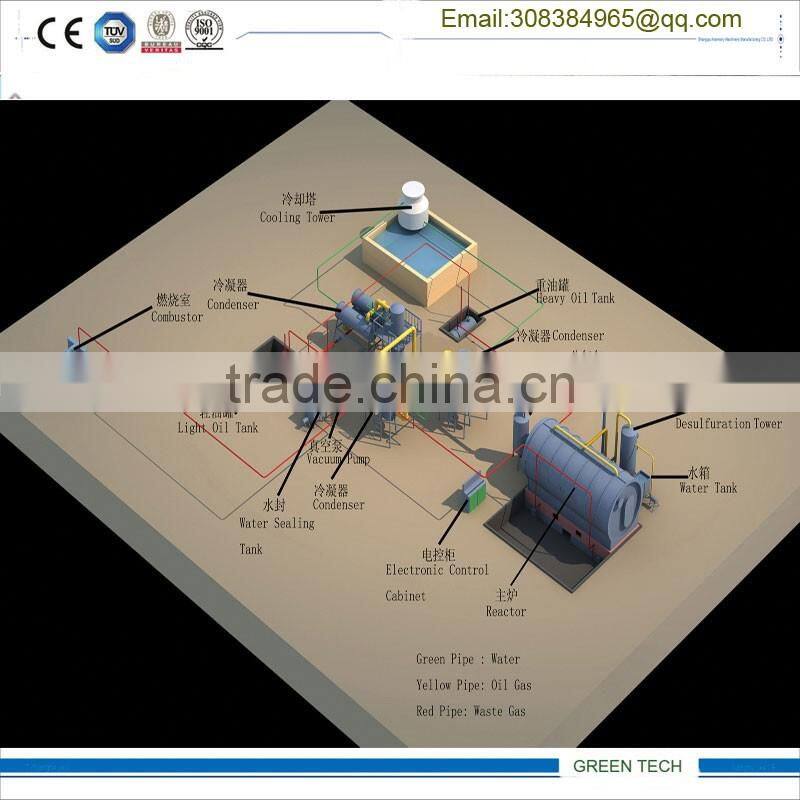

ing flow
7.About us :
This is Mrs.Sunnywang from Shangqui Harmony Machinery Manufacturing co.,ltd.which is one of TOP 10 Pyrolysis plant and Oil recycling distillation plant manufactures in China with more than 8 years experiences and newest technology.
Our pyrolysis plant -convert waste tyre, plastic or other raw material to fuel oil without pollution,specification from 2ton to 40ton (per day capacity ),from batch type to semi-continuous type and to fully continuous type. Customized plants also are welcome.
Pyrolysis plant (convert waste to fuel oil ) | Type | Daily capacity | Used for | Final Product and usage |
Batch type | 5Ton 10ton 12ton 15ton |
Waste tyre Plastic Rubber Oil sludge Oily waste Others |
Fuel oil Used for heating boiler as furnace oil Or refined for distillation oil | |
Semi-continuous type | 15Ton, 20Ton | |||
Fully continuous type | 20ton 30ton 60ton | |||
Special type | 20Ton 15ton |
Also we make oil distillation plant, refining fuel oil /waste oil/black oil to diesel oil. 24hours Capacity from 3ton to 15ton.
| Type | Daily capacity | Used for | Final Product and usage |
Distillation plant Refining fuel oil/waste oil diesel |
Fully continuous type |
5ton 10ton 15ton 20ton 30ton 40ton | Used motor oil Used lube Washing parts oil Pyrolysis oil Crude oil Others
|
diesel for engine
|
For any confusion or details requirement please kindly contact me without any hesitation any time
Thanks and regards
