40-60 Ton Fully Continuous Pyrolysis Plant
1. Plant Features:
1) widely usage
Can be used for tyre 5-10cm,plastic,rubber ,oil sludge, cooking waste ,live waste, oil sand ,oily soild
2) static pyrolysis ,getting higher quality oil, less dust in oil
3) large capacity
24hours produce 20-30 Ton material
4) continuous pyrolysis, no need cooling reactor, saving fuel, saving working time
5) The plant can working 25dyas*24hours without stop, fully continuous
6) Continuous feeding without stop
7) Continuous slag out without stop
8) Non-liquid gas can be reused to support heating for heating reactor , saving fuel energy
9) good pressure tightness, safe
2. Technical parameter
Reactor size | (L*W*H)12*2*2.5m |
volumn | 60M3 |
material | Q345R/Stainless steel |
Work pressure | Normal pressure/slightly negative pressure |
Process capacity /24hours | 60 Ton tyre |
40 Ton plastic | |
Oil sludge 40-60Ton | |
Oil sand 40-60TON | |
output | Base oil |
Working principle | Oxygen free pyrolysis |
workers | 1 |
power | 20/40kw |
voltage | 220v/380v |
Power consumption/24hours | 230 kw |
Water consumption | 4-6Ton |
Feeding time | Continuous feeding |
Carbon discharge time | Continuous slage out |
working life time | 4-5yeat |
Slag temperature | 150℃ |
Fuel | Gas, oil |
Pyrolysis way | Static pyrolysis, non-rotate |
Slag way | Continuous slag out |
Dust smoke temperature | 350℃ |
Pyrolysis temperature | 280-350℃ |
Max-temperature | 600℃ |
oil come temperature | 350℃ |
Raw material delivery speed | 0.4-2m/min |

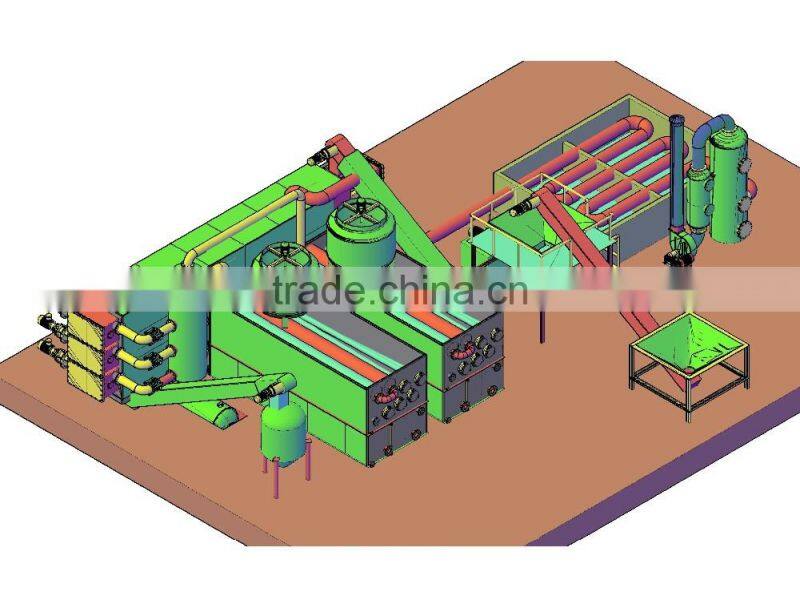

3.Work-flow:
4.Pyrolysis Plant Type Difference
Type | Feeding way | Heating way | Heating fuel | Reactor type | Pyrolsysis way | environmental effect | Featurs |
Batch | By human | Direct /indirect heating | Coal, wood, oil, gas | Round type/cylinder | Rotation pyrolsysis | environmental | After one batch need to cool down |
Semi-continuous | Auto-feeder | Direct /indirect heating | Coal, wood, oil, gas | Round type/cylinder | Rotation pyrolsyis | environmental | Need to cool down to slag |
Fully continuous | Auto-feeder | Indirect | Oil,gas | Cuboid/rectangular | Static pyrolsysis output oil with less dust, oil with better quality | Less dust, more environmental | No need to cool Saving fuel and working time |
Working details:
batch type:
one day one batch, day time heating pyrolysis, night time cooling .
semi-continuous type:
First time feeding 10Ton and heating, after 8 or 6 hours feeding second time 6 Ton and heating and pyrolsyis for another 6 hours
then feeding third time 4 Ton . And continue heating, after 5hours, this 5 Ton raw material complete pyrolsyised ,then cooling down reactor , and slag out. Semi-continuous pyrolysis means feeding 3 times (intermittent) and slag one time.
Compare to batch type, this semi-continuous plant just add auto feeder. this is not real meaning continuous.
fully continuous pyrolsysis,
continuous feeding without stop and the plant running 24hours*26dayst untill plant overhual.
continuous feeding , and continuous slag out.
6.Avout us
Shangqiu Harmony Machinery Manufacturting Co.,LTd. is a professional manufacturer engaged in the research, development, production, sale and service of Environmental machines, waste tire/rubber/plastic pyrolysis equipment, waste oil distillation machines, etc.
We have rich experience(8 years experience) in making and installation shangqiu harmony is the top 10 enterprise in disposing waste rubber and plastic.
Now our new tech is crude oil refining and city life trash recycling.
Which convert waste to energy without pollution .
7.payment term and delivery:
Payment term | 30% TT deposit ,balance paid before plant loading ,or sight LC |
Delivery | With 60 days after getting advance payment |
Warranty period | 2 years warranty period, life time maintenance
|
Installation | We send technician for guiding installation and training your workers for free. |
