2016 Generation Continuous Pyrolysis Machine for Waste Recycling to Oil

Product Application

LARGE CAPACITY FULLYC ONTINUOUS PYROLYSIS PLANT

Main Features

1) widely usage

Can be used for tyre 5-10cm,plastic,rubber ,oil sludge, cooking waste ,live waste, oil sand ,oily soild

2) static pyrolysis ,getting higher quality oil, less dust in oil

3) large capacity

24hours produce 40-60 Ton material

4) continuous pyrolysis, no need cooling reactor, saving fuel, saving working time

5) The plant can working 25dyas*24hours without stop, fully continuous

6) Continuous feeding without stop

7) Continuous slag out without stop

8) Non-liquid gas can be reused to support heating for heating reactor , saving fuel energy

9) good pressure tightness, safe

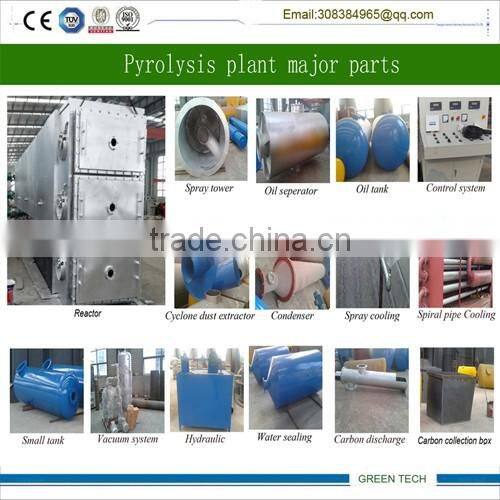

Machine Parts

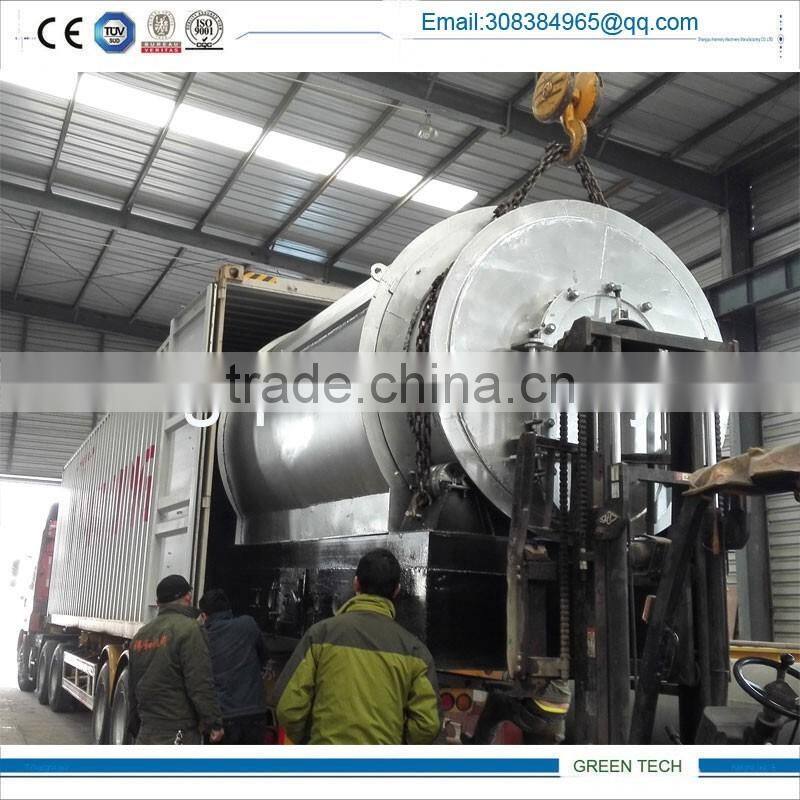

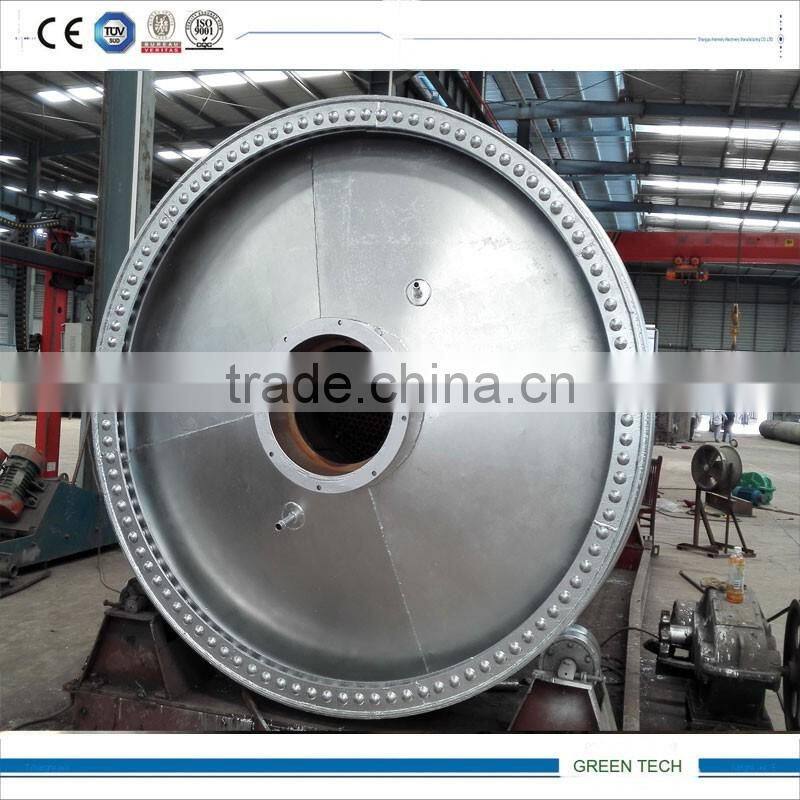

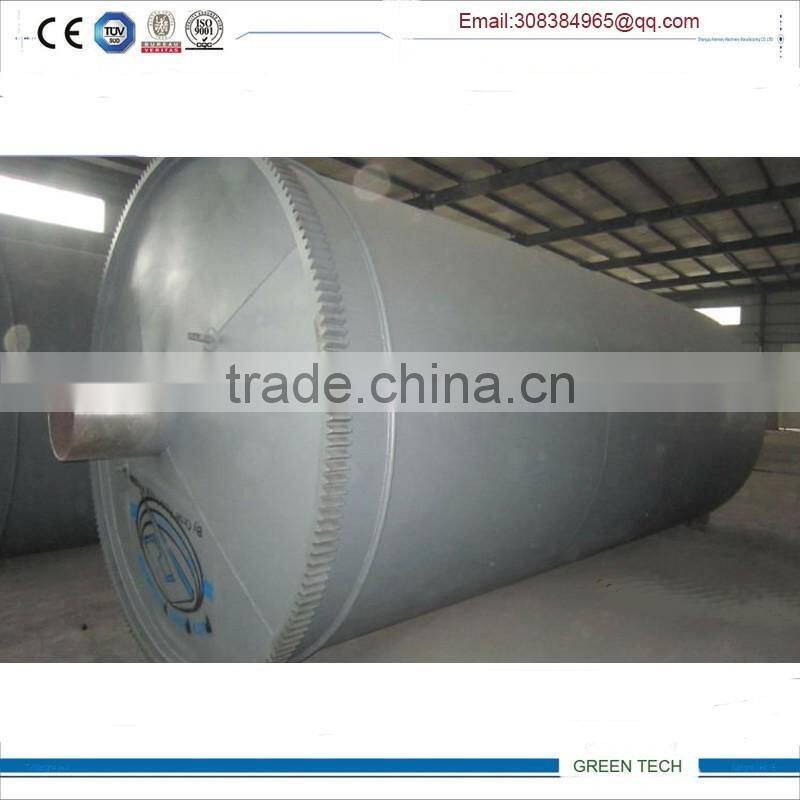

Name: pyrolysis reactor

function :

firstly pretreat raw material, then raw materail will go in side of reactor continuously ,here raw material convert to oil gas by heating reactor

Main parts

Name: oil burner
funcation:
heating reactor by using oil

Machine Parts

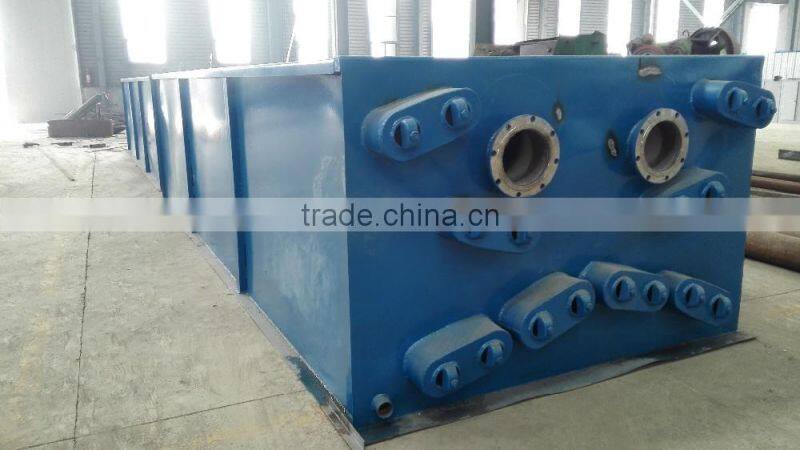

Name: cooling system
function:
to cool down the oil gas , after it come out of distillation  tower and catalyst tower

Main parts

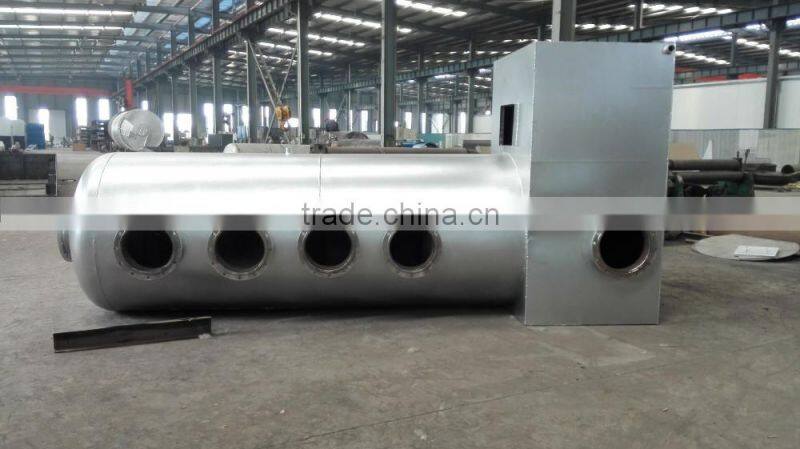

Name: dedust system
function:
to treat the smoke produced by  burning fuel to heat reactor , after smoke go through dedust system,

the black smoke will be cleaned to water steam, and sulfer will be removed
