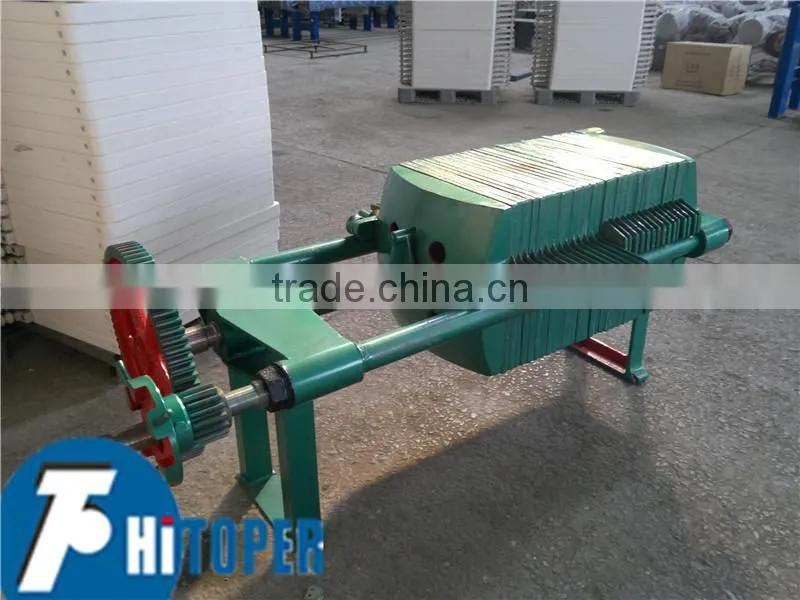

Water treatment technology of solid-liquid separation filter,Toper diatomite filter for sale

Name: Water treatment technology of solid-liquid separation filter,Toper diatomite filter for sale
Brand: toper
Price: USD $5,000 - 100,000 / Set

FOB Price

USD $5,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao Tianjin Shanghai
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Henan, China

Brand Name:

toper

Model Number:

WK400

Product Description

Water treatment technology of solid-liquid separation filter

Product Description

Over view of the water treatment technology of solid-liquid separation filter

This filter is with the introduction of international advanced technology, using 1Gr8Ni9Ti high grade stainless steel material and using diatomaceous filter media as filter aid. This machine make us stride forward from antiquated pulp filter process to advanced filter process .

It has some features such as good looks, easy operation, low cost filter, high efficiency, 99.8% clarity.

If you operate properly, it even can filter colibacillus. It is widely used in water treatment of white spirit, yellowwine, juice. We will do our best to help you to get good result in filter process.

Main features of the water treatment technology of solid-liquid separation filter

1. filter plate filter made of AISI316L, the rest are AISI304, automatic mechanical polishing inside and outside surfaces of the tank, and all parts in contact with the liquid in line with food-grade sanitary requirements.
2, taking into account the unique plate design, self-supporting, filters smooth, easy to clean.
3. The filter formed on the soil filter discs, so that the whole loop filter in a sealed state.
4. Add the diaphragm metering pumps, according to the filtrate turbidity be, adjusting the amount of diatomaceous earth filter aid.
5. placed outside the main canister residue filtration system, do not need compressed air, infusion pumps with their own power, a very short time, complete the remaining liquid filtration main filter tank.
6. The filter-cake removal, filter disc cleaning automatically.
7. Road entrance before filtration pressure power, do not need pressurization equipment, strong pressure stability.

Working principle of the water treatment technology of solid-liquid separation filter

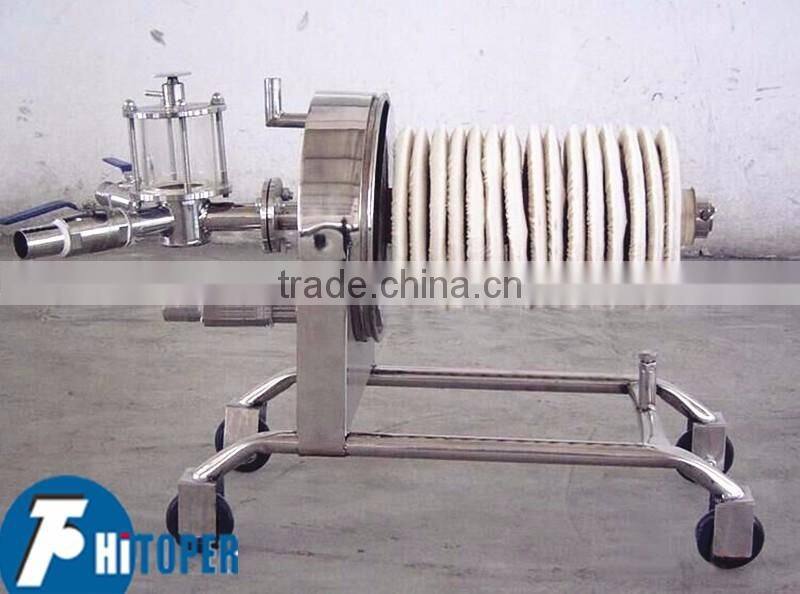

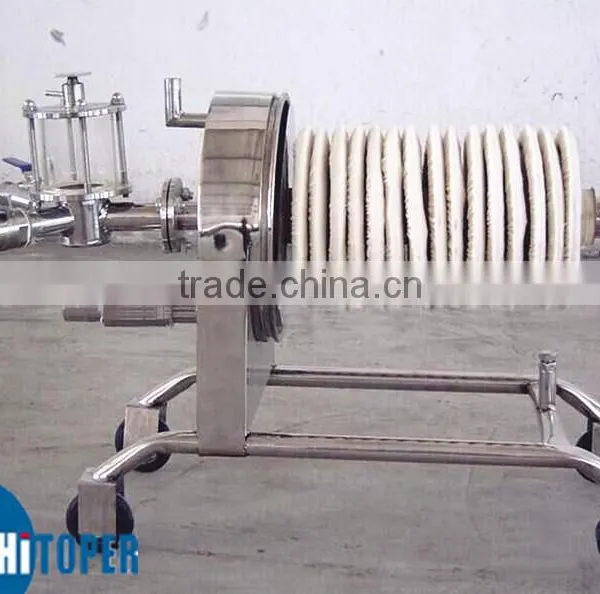

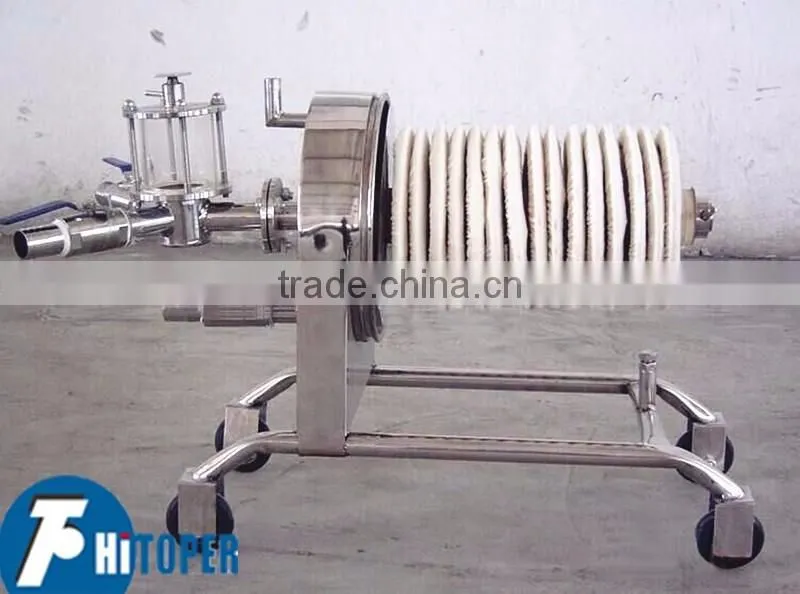

In a sealed stainless steel container, bottom horizontal stainless steel filter disc, the upper disc is stainless Steel strainer, the lower is the stainless steel support plate, the middle is a liquid collection chamber.

When filtered through Celite first pre-coated, so that a layer of diatomaceous earth coating is formed on the plate, the liquid to be filtered at the pump pressure, by pre-coating and into the collection chamber, the particles and the polymer is closure in pre-coating of a clear liquid into the collection chamber, through the central axis out of the container.

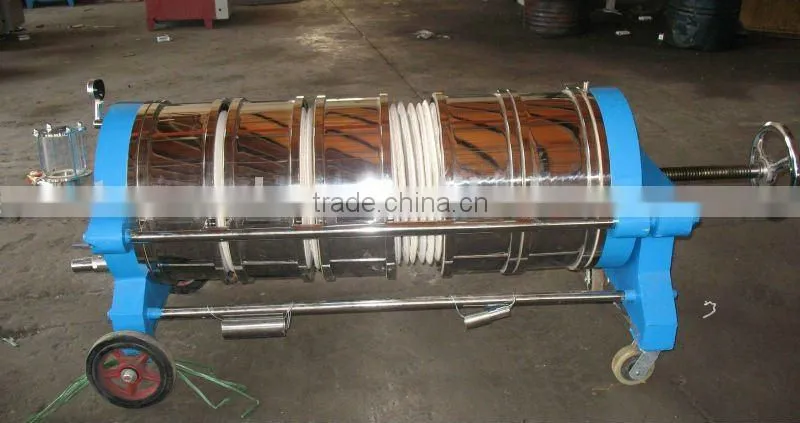

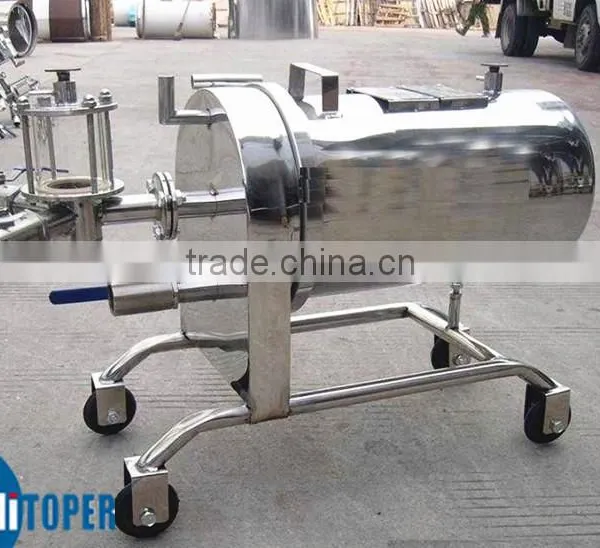

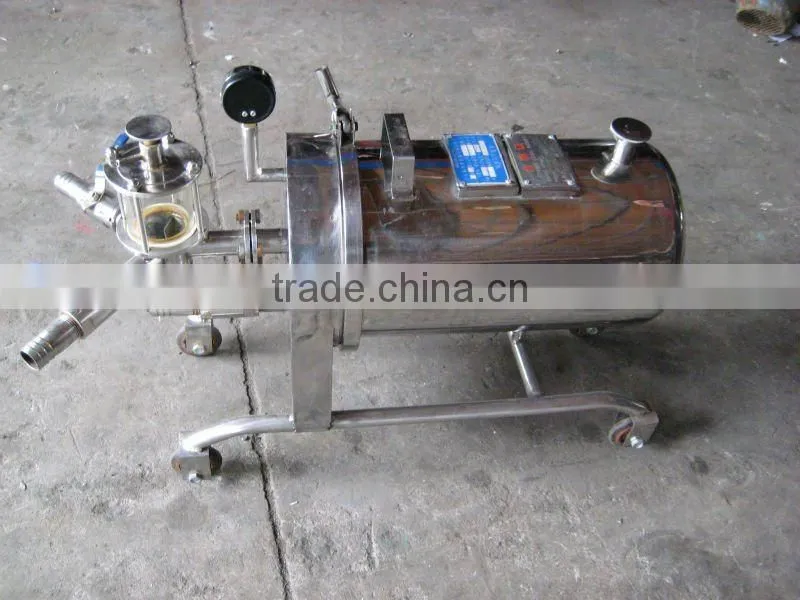

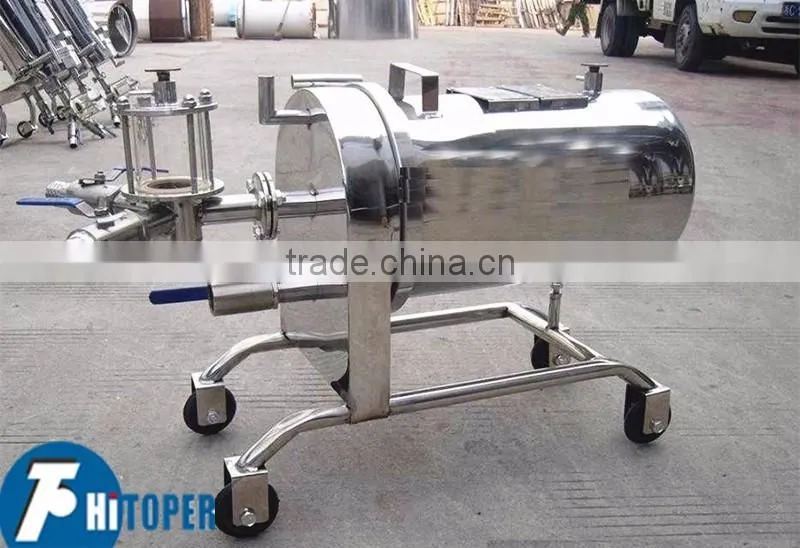

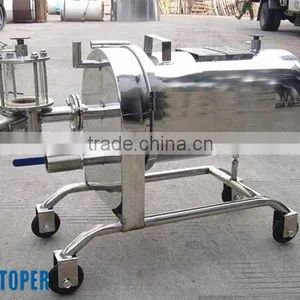

Different kinds of the diatomite filter

Technical Parameters of the diatomite filter

Model	Overall dimension(mm)	Filter area(M²)	Quantity of filter disc(Pc)	Valve size	Theoreical Flow (base on white spitit)	Working pressure(Mpa)	Pump
WK500-A	2450x750x850	15.9	38	Dg32	13-15t/h	≤0.3	YL20-25
WK500-B	1950x750x850	8.9	20	Dg32	8-10t/h	≤0.3	YL20-25
WK400-A	2350x680x800	9.8	38	Dg32	9-12t/h	≤0.3	YL10-25
WK400-I	1840x680x800	5.1	20	Dg32	6-8t/h	≤0.3	YL5-25
WK330-II	1700x600x750	3.4	20	Dg32	3-5t/h	≤0.3	YL5-25
WK330-III	1600x600x750	2.5	15	Dg32	2-4t/h	≤0.3	YL5-25
WK250	1100x350x450	2	20	Dg32	1-3t/h	≤0.2	YL3-20
WK220	900x300x400	1	15	Dg32	1-2t/h	≤0.2	YL3-20

Other type of Toper's water treatment filter and separator equipment :

Packaging & Shipping

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.

Our Services

1.We have professional person on line to provide you comprehensive.easy-understanding and detail information and technical data about the machine you interested;solve your confusions or questions about the machine

2.Advise you the most suitable type of machine according to your requirement for your reference

3.Arrange the schedule if you pay a visit to our factory.

4.Our technical engineer can also come to help installation,operation test,solve problems and so on if required.

Company Information

Global Service

Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.

Our Products

Our manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.

We have won good reputation depends on our best qualified products and after-sales service. Warmly welcome new and old friends all over the world to come our company for good cooperation with each other!
