2017 fully new Toper industrial centrifuge separator,solid-liquid separation machine
01.Brief introduction of the industrial centrifuge separator :
SS type three-foot upper discharging centrifuge is of manual top discharging , intermittent operation filtering centrifuge. Suitable for separating solid particles containing≥0.01mm suspension, solid particles can be granular, crystalline and other forms are also available for items(such as yarn-beam, textiles, etc.) and dehydration.
The series of centrifuge simple structure, easy operation, each operation can be adjusted, residues can be washed, the solid particles are not easy to break, adaptability.
Widely used in chemical industry, light industry, textile, food, pharmaceutical, metallurgy, mining, each and environmental protection industries.
ing principle of the industrial centrifuge separator
The material from the top to join the drum under the action of the centrifugal force field, the liquid spreads through the wall of the drum filter into the filter body floor chassis, a liquid outlet from the discharge, and solid materials retained in the drum, removable by hand from the top of the centrifuge from the electrical control, two-speed motor. Can automatically complete a work cycle. That is, start a slow start a high-speed running an electric brake. Can also be used with inverter.
03.main technical parameters of the industrial centrifuge separator
| Type | Drum | separation factor (w2r/g) | Motor power (kw) | Weight (kg) |
Dimension (mm) |
|||
| dia.(mm) | volume(L) | Load limit (kg) | Rotation speed (r/min) | |||||
| SS300 | 300 | 8 | 10 | 1900 | 819 | 0.75 | 130 | 800×620×500 |
| SS450 | 450 | 20 | 25 | 1600 | 725 | 1.5 | 200 | 980×720×625 |
| SS600 | 600 | 45 | 80 | 1450 | 755 | 3.0 | 600 | 1350×990×750 |
| SS800 | 800 | 98 | 135 | 1200 | 640 | 5.5 | 1300 | 1740×1380×1000 |
| SS1000 | 1000 | 140 | 195 | 1000 | 560 | 7.5 | 1500 | 1950×1560×1050 |
| SS1200 | 1200 | 200 | 280 | 800 | 430 | 15/11 | 2030 | 2370×1600×1000 |
| SS1500 | 1500 | 360 | 400 | 650 | 304 | 15 | 4060 | 2640×1850×1100 |

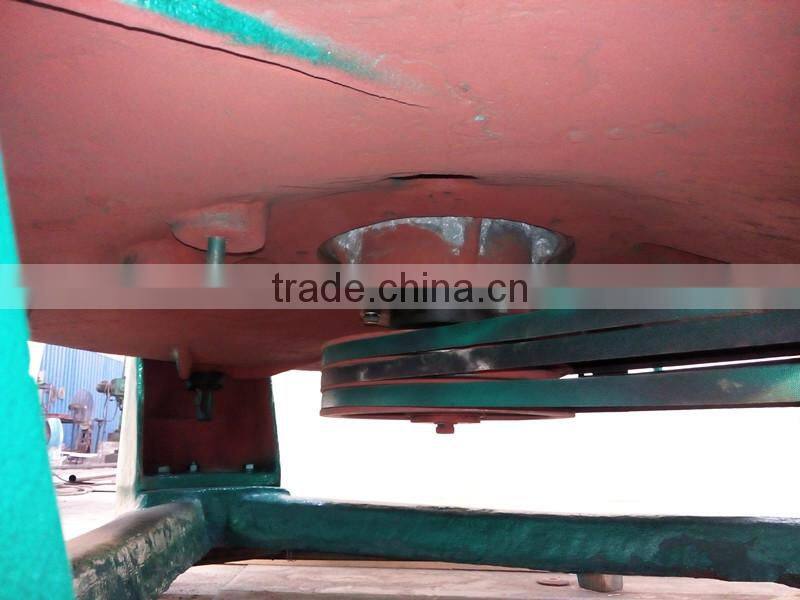

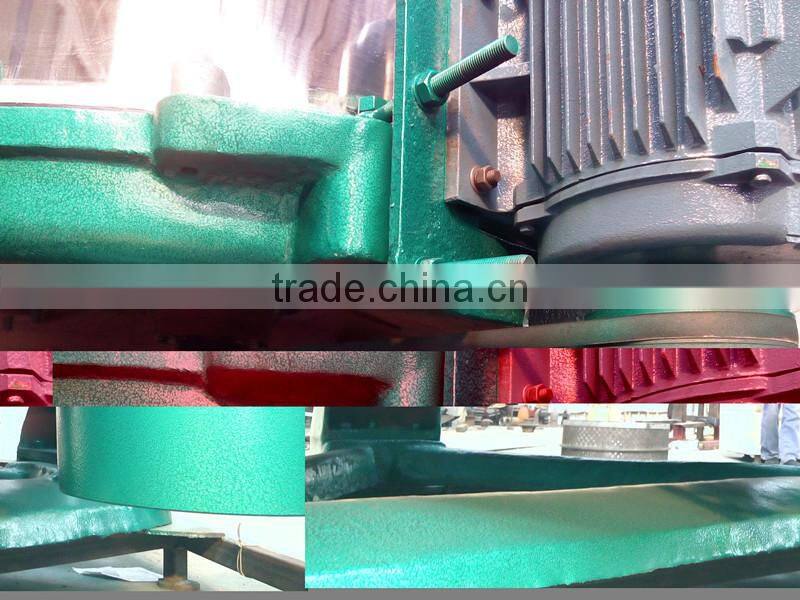

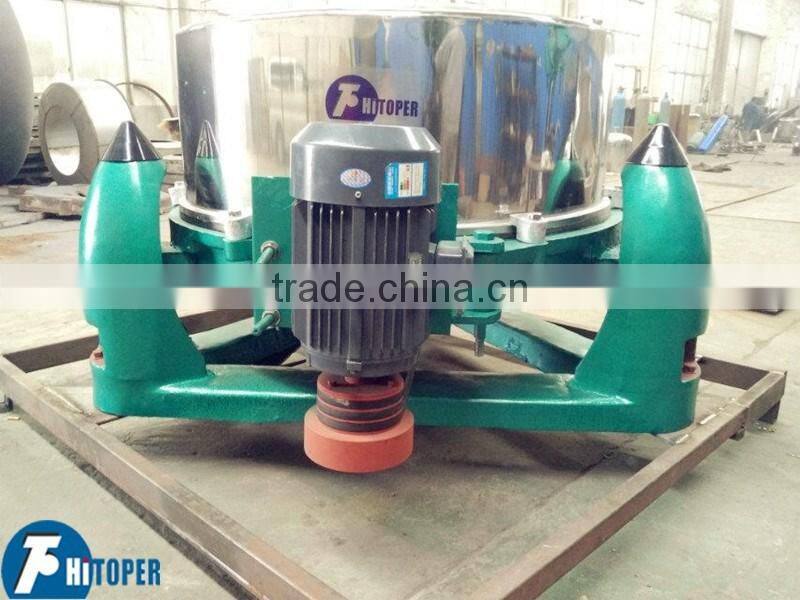

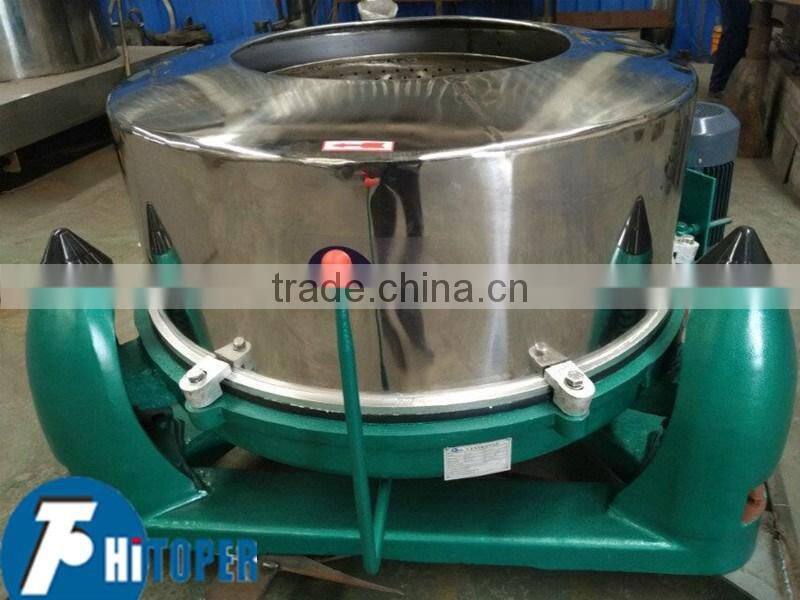

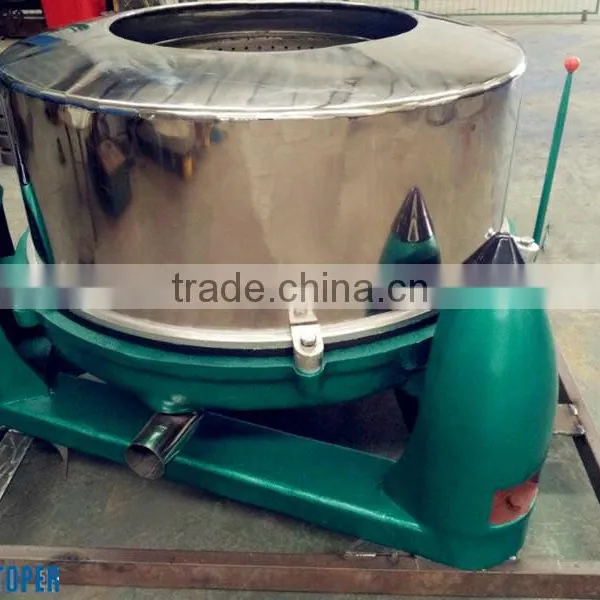

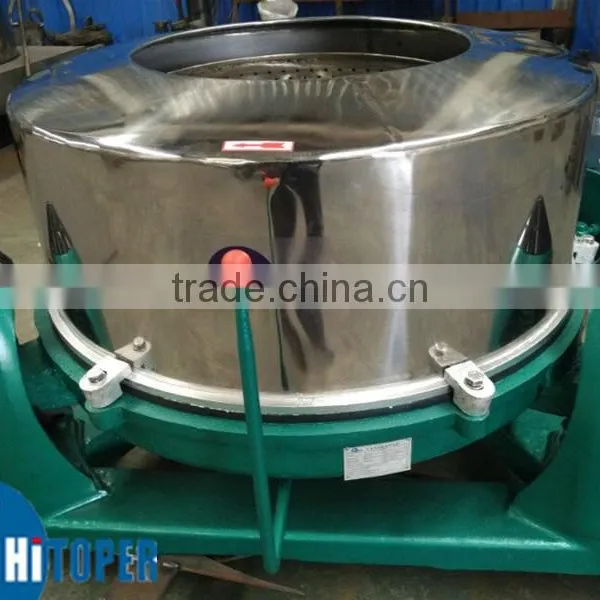

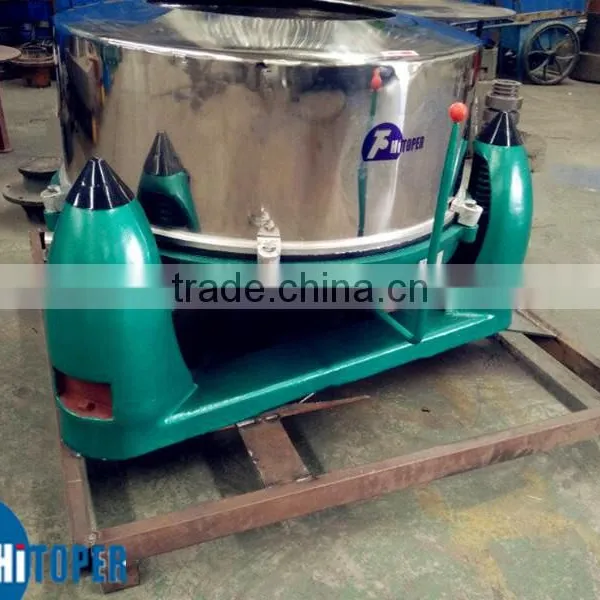

04. more detail pictures of the separator
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guide the installation , debugging and solve practical problems if required.
01. The Zhengzhou Toper Industrial Equipment Co.,Ltd.
02.Our main products series
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
03. Application area of our filter and separation equipment
2017 fully new Toper industrial centrifuge separator,solid-liquid separation machine
2017 fully new Toper industrial centrifuge separator,solid-liquid separation machine
2017 fully new Toper industrial centrifuge separator,solid-liquid separation machine
