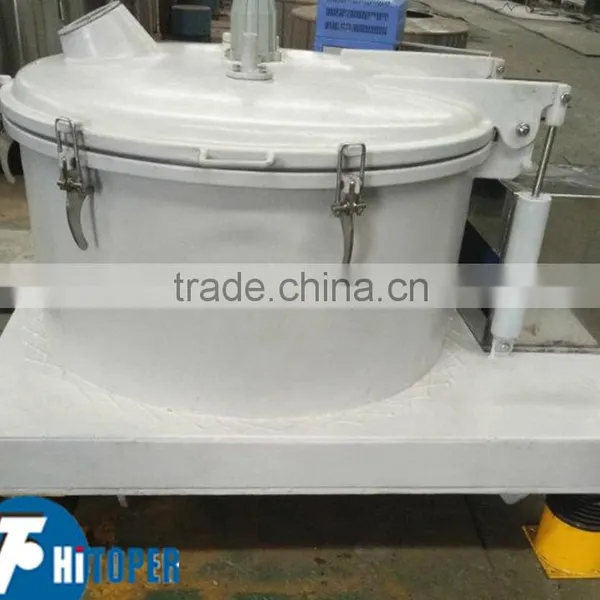

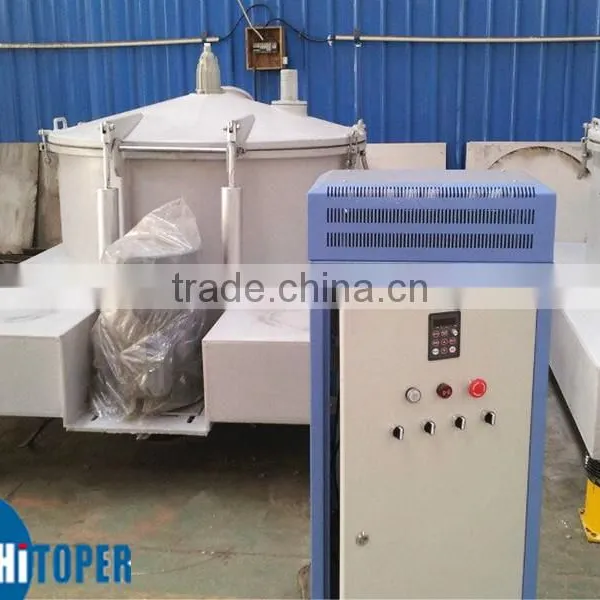

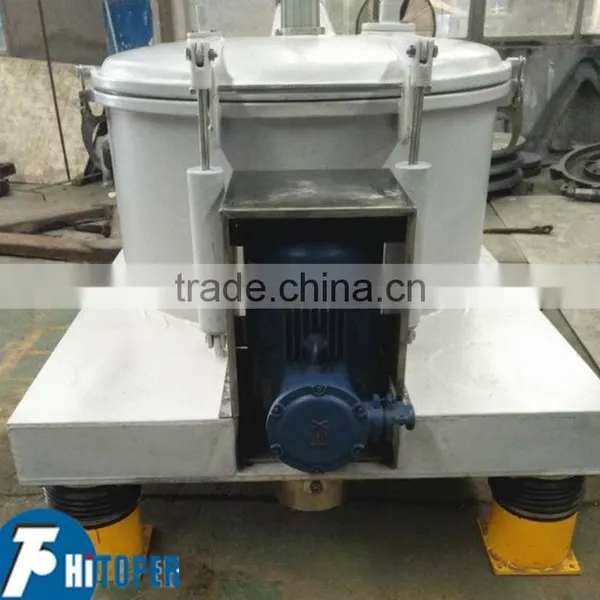

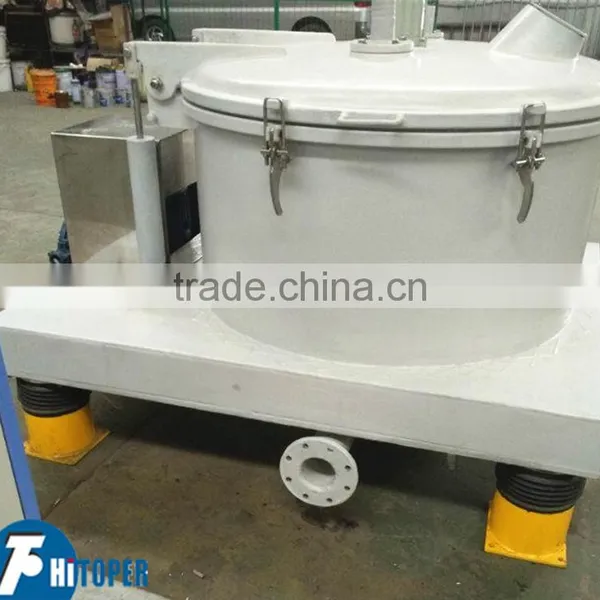

Plastic coated centrifugal separator used for acid suspension filtration
Structures and properties of the plastic coated centrifugal separator used for acid suspension filtration
1.brief introduction
This type of bag hoist discharge centrifuge are filter equipment with hermetic closure procedure task, intermittent operation and hanging bag off-site discharge.
ing principle
The material is fed into the drum from the top; under the action of the centrifugal force filed, the liquid-phase passes through the filter medium and is discharged out of the machine, while the solid-phase material is retained inside the drum; after the machine is stopped, the liquid-block plate together with the filter bag is hoisted with the sling out of the machine and transferred to the designated discharge site.
03. application scope
It is applicable to the separation of suspension containing solid-phase granules with the diameter greater than 0.01mm.
And it is especially applicable to the filtering of toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc.
For example: gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
04.main technical parameters
| Model | Drum | Separation Factor | Motor Power (kw) | Limit Height of Opening the cover | Total Weight (kg) | Dimensions (L x W x H) (mm) | |||
| Diameter (mm) | Operating Capacity (L) | Loading Limit (kg) | Rotational Speed (r/min) | ||||||
| PD800 | 800 | 115 | 155 | 1500 | 1008 | 7.5 | 2280 | 1600/1800 | 1800x1050 x1140 |
| PD1000 | 1000 | 170 | 230 | 1200 | 806 | 11 | 2590 | 2300/2800 | 2030x1300 x1220 |
| PD1200 | 1200 | 250 | 340 | 800 | 431 | 11 | 2850 | 2800/3200 | 2300x1500 x1350 |
| PD1250 | 1250 | 280 | 400 | 950 | 631 | 18.5 | 2850 | 3800/4200 | 2350x1500 x1370 |
| PD1500 | 1500 | 500 | 650 | 850 | 607 | 30 | 3400 | 4800/5200 | 2900x1900 x1575 |
| PD1800 | 1800 | 600 | 800 | 700 | 494 | 37 | 3700 | 7200/7800 | 3170x2540 x1770 |
05.Pictures to show you more details of the separation centrifuge---------

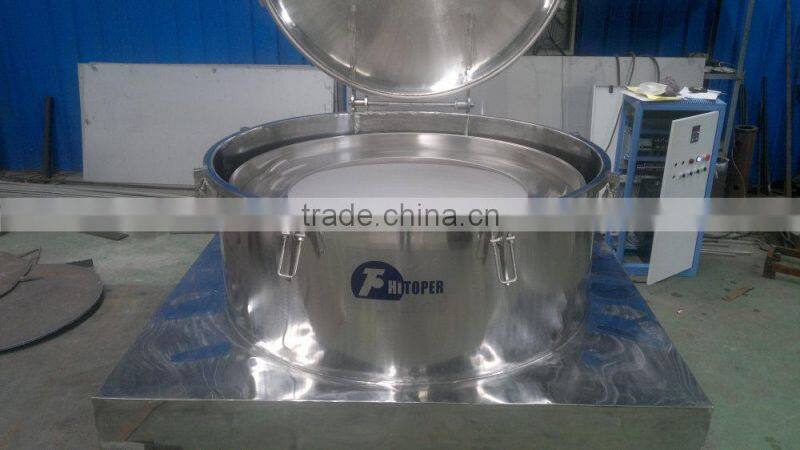

standard type stainless steel drum centrifuge for reference

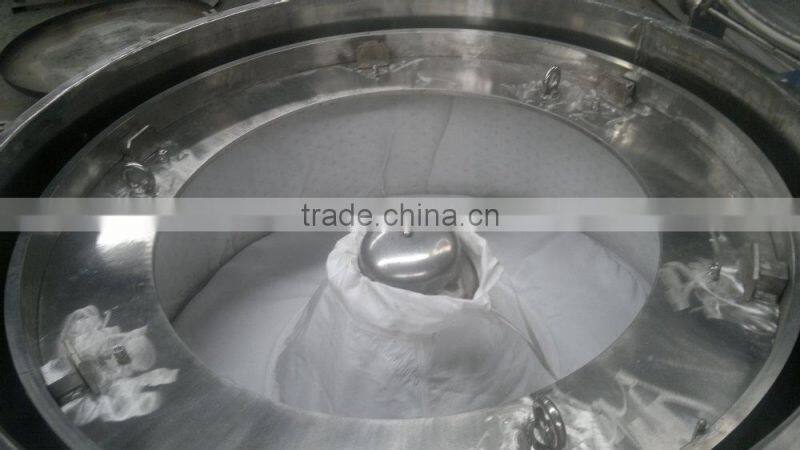

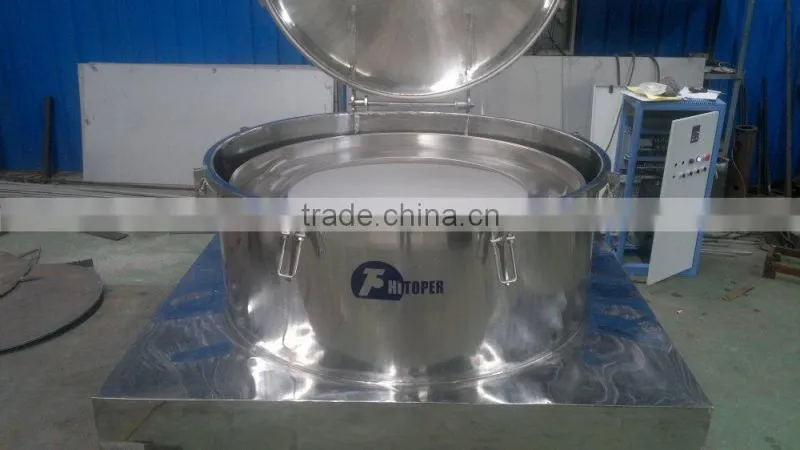

- Inner view of the centrifuge (the drum and the filter bag)

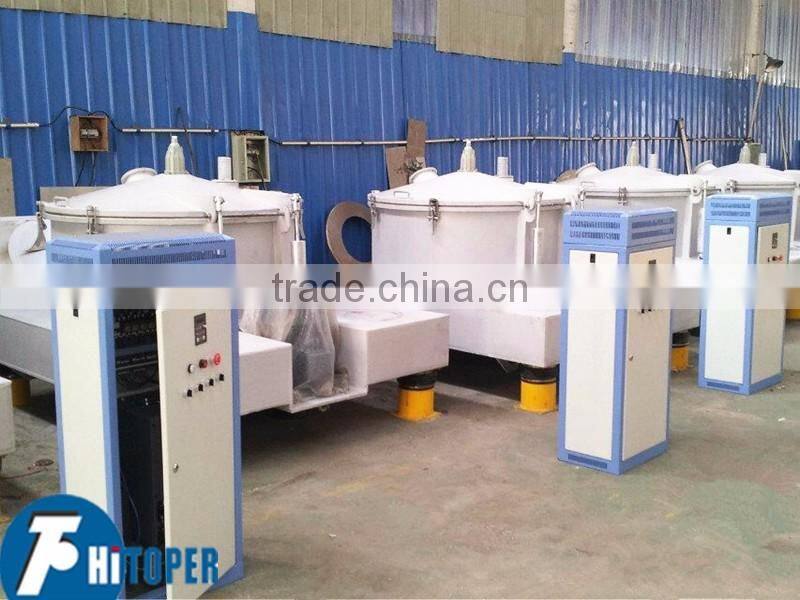

- The centrifuge on testing ( Electricity idling )

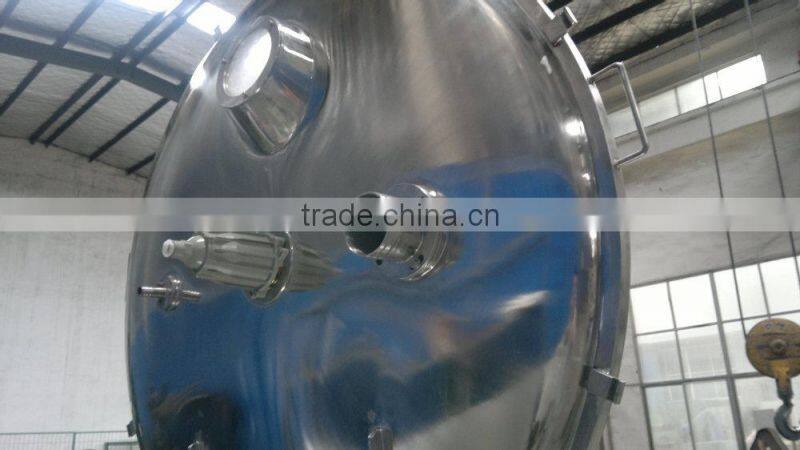

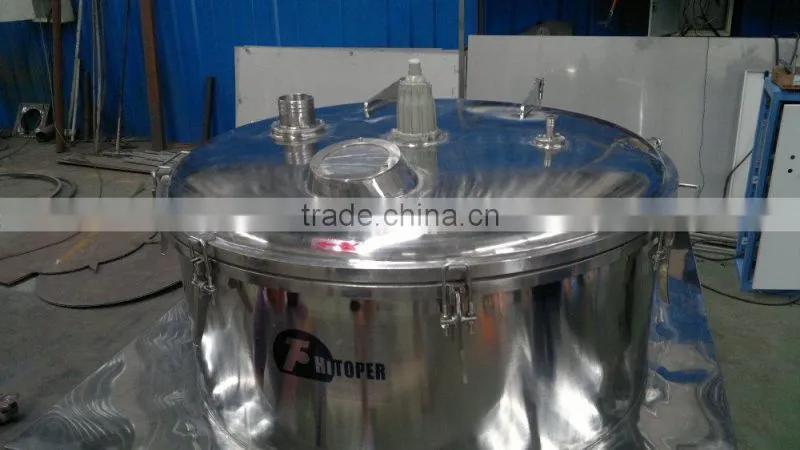

- View of the fully-open large cover with feed pipe hole ,observation mirror,lighting hole

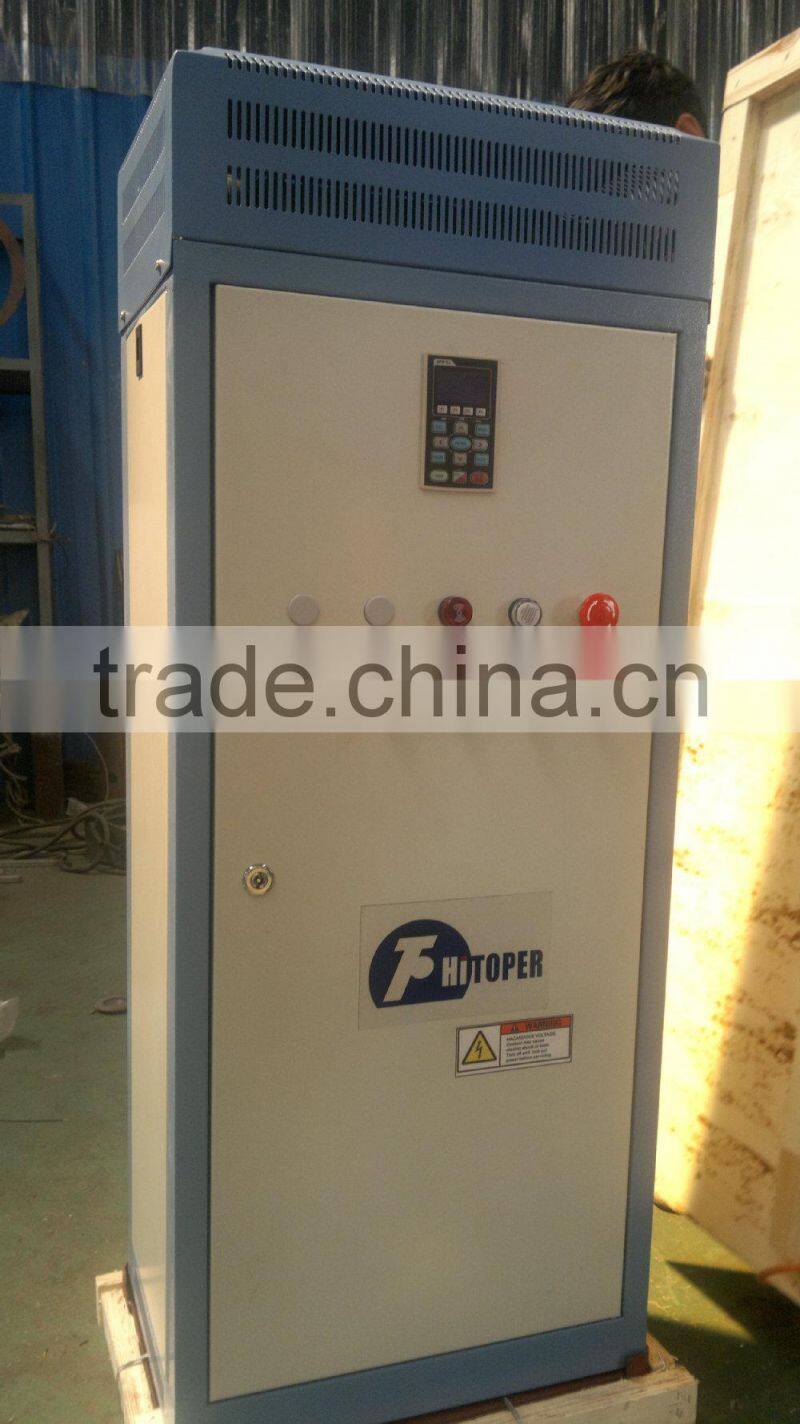

- The electrical control cabinet
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guide the installation , debugging and solve practical problems if required.
