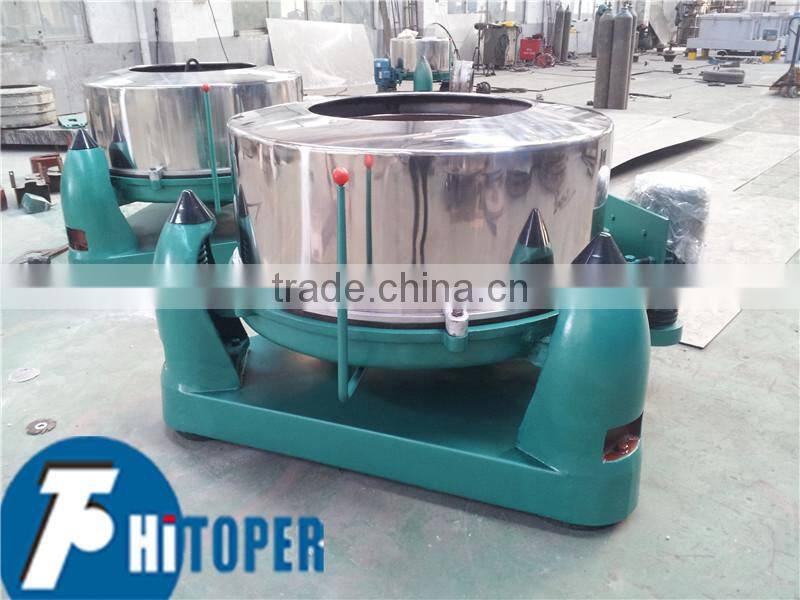

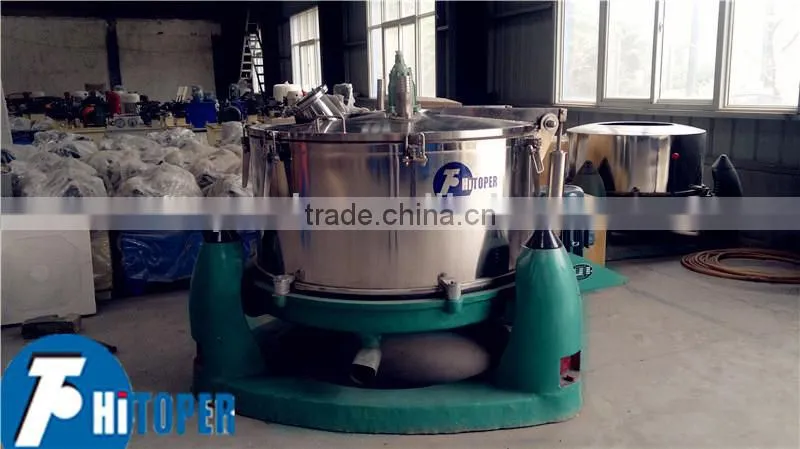

Three-foot intermittent operation manual bottom discharge centrifuge for sale
01.Brief introduction and working principle :
Model SX centrifuge is a kind of thee-foot manual bottom discharge equipment with intermittent operation. The suspension feeds into the drum by the top inlet.
All suspension is distributed into the drum via the distributing disk. The liquid is separated at high speed and discharged out of the machine by filter medium.
The solid is remained in the drum. Lower speed and solid is discharged manually from the bottom of the machine.
This kind of machine is suitable for separating suspension with 5-60% solid and particle size more than 0.05mm. It is widely used in chemical industry, light-industry, food industry, pharmacy, metallurgy, etc.
02. Main features of the
The series centrifuge has a simple structure, reliable performance, easy operation and maintenance, each operation can be adjusted, residues can be washed, static mixer pipe filter solid particles not damaged, adaptability and so on.
03.main technical parameters
| Model | Rotary drum | Separation factor | Motor | Total | Overal dimension | |||
| power | weight | |||||||
| Diameter | Working | Loading | Rotary | W2r/g | KW | KG | MM | |
| volume | limit | speed | ||||||
| MM | L | KG | r/min | |||||
| SX800 | 800 | 100 | 135 | 1200 | 645 | 5.5 | 1100 | 1950*1380*1000 |
| SX1000 | 1000 | 150 | 200 | 1000 | 560 | 7.5 | 1700 | 2150*1550*1050 |
| SX1200 | 1200 | 200 | 270 | 800 | 430 | 11 | 2300 | 2300*1700*1100 |
04.Other type of Toper's centrifuge series:
We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory.
4.We can also send our technical engineer to your area guide the installation , debugging and solve practical problems if required.
01. The Zhengzhou Toper Industrial Equipment Co.,Ltd.
02.Our products series
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
03. Application area of our filter and separation equipment
