SS gravity oil separator centrifuge/High quality oil centrifuge equipment
Brief introduction of the centrifuge equipment:
Three-column centrifuge,known as three-foot centrifuge, because the bottom of the support legs for the three columns, arranged in a triangle with equal portions named. Centrifuge is a three-column solid-liquid separation equipment, mainly in the solid- liquid separation to remove liquids or solids separate.
Tripod is the most versatile centrifuge centrifuge, starting from the first centrifuges, used in all walks of life, has yao still popular worldwide, and its low cost, resistance to shock, simple structure, easy to operate.
As the general three-foot low speed centrifuge, separation accuracy is not high, we usually draw it as a coarse type equipment regulations for the handling of large amount of solid, clear liquid clarity less demand.
The information of working principle:
The material from the top to join the drum under the action of the centrifugal force field, the liquid spreads through the wall of the drum filter into the filter body floor chassis, a liquid outlet from the discharge, and solid materials retained in the drum, removable by hand from the top of the centrifuge from the electrical control, two-speed motor. Can automatically complete a work cycle. That is, start a slow start a high-speed running an electric brake. Can also be used with inverter.

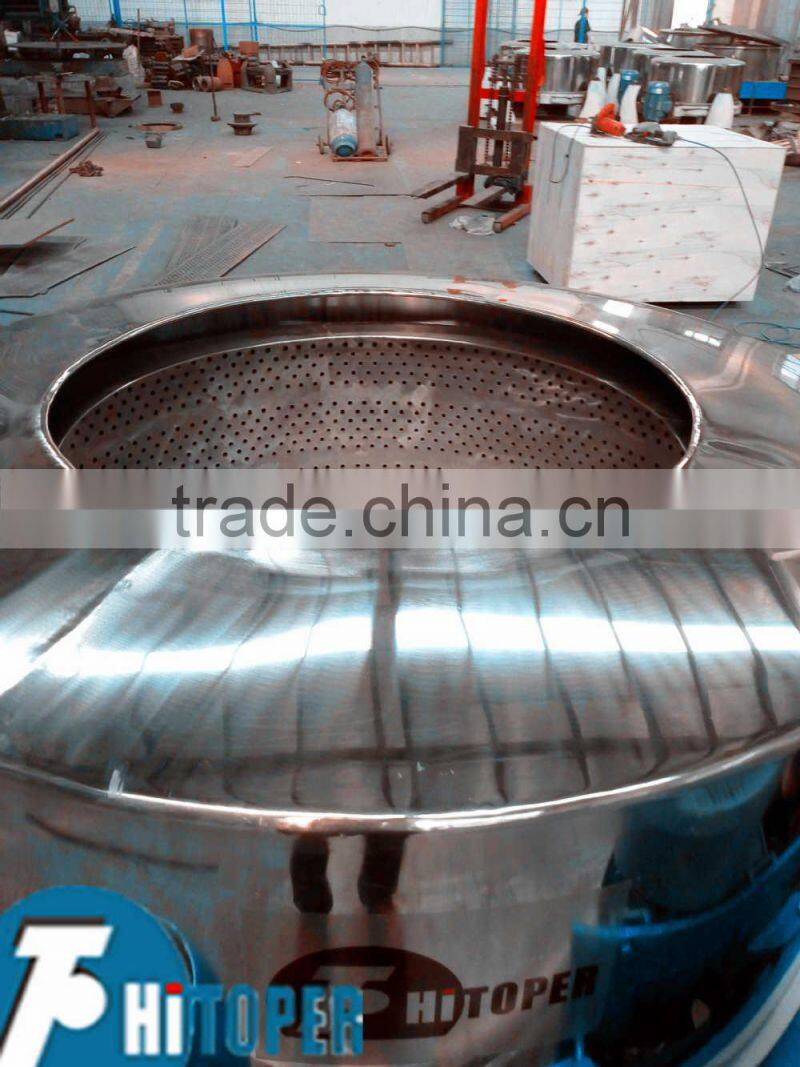

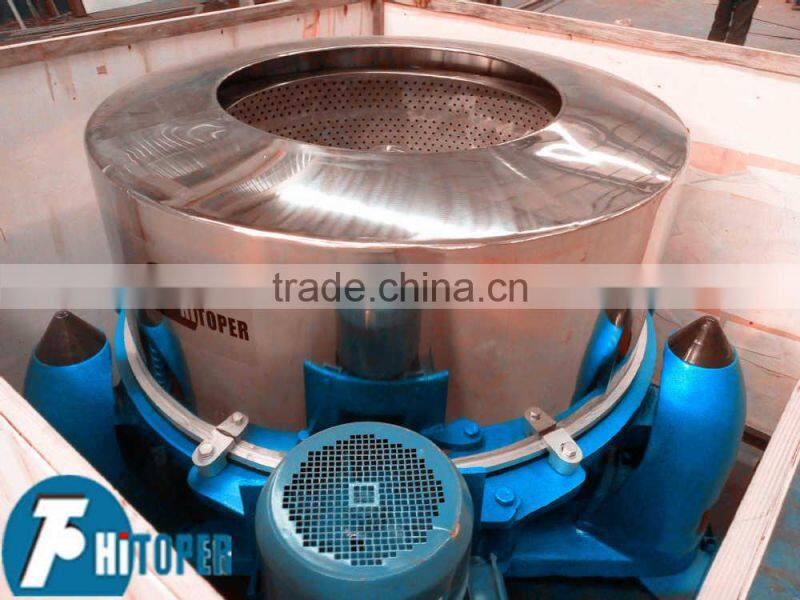

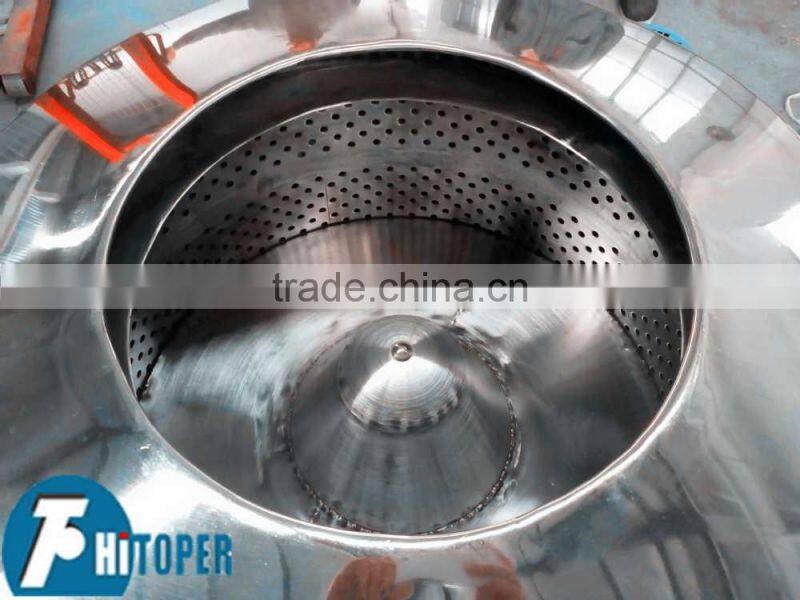

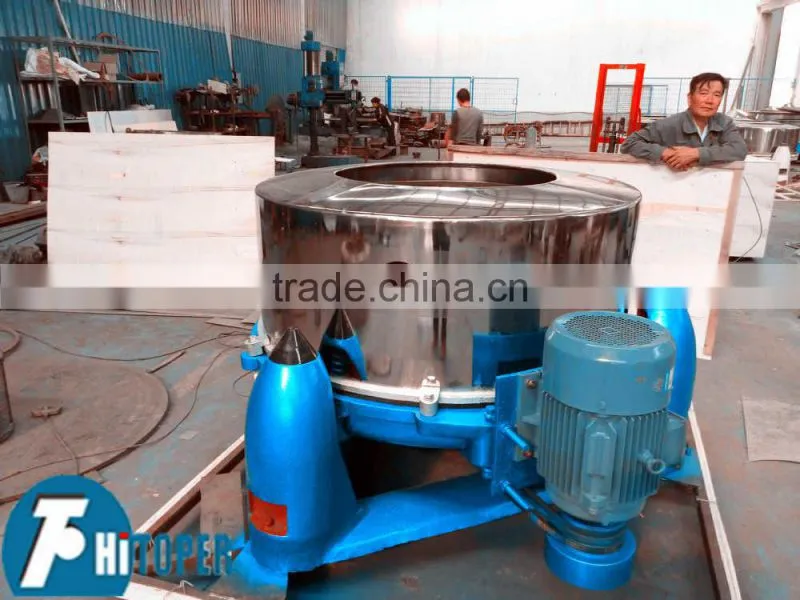

More detail pictures of the centrifuge separator:

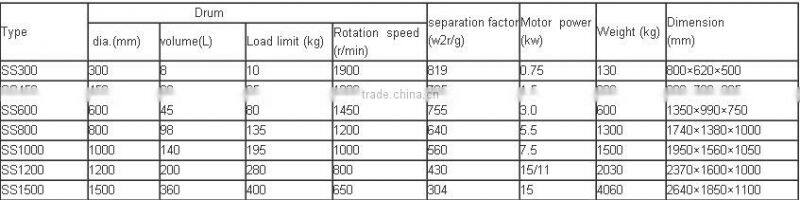

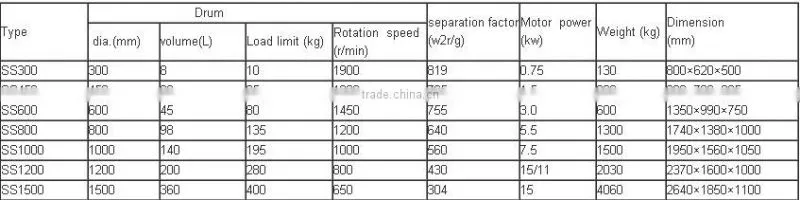

Main technical parameters:
The different claffify of the three-column centrifuge:
The way of discharge:
three-column upper discharge
three-column lower discharge
Centrifuge structure:
ordinary centrifuge
scraper centrifuges
punching bags Centrifuge
working principle:
three-foot centrifuge filter
three-foot centrifuge sedimentation
Two ways to separate:
1.Filtering : There is holes in the rolling drums .Its widely used for some conditions ,such as less viscosity ,solid big granular ( crystalline ) ,mostly used to dewater.
2.Decanter :Closed rolling drums to separate solid and liquid through centrifugal force .Its used widely ,such as big viscosit ,small granular both can be separted.
Order notice:
For different requirements for separation, we have designed for customers to choose the appropriate type, when generated orders, you can confirm the following circumstances:
1. Material: Parts contact the material is stainless stell, titanium, carbon steel, rubber lining, PTFE lining, etc.
2. Drive model: Normal asynchronous motor, explosion-proof asynchronous motor or frequency explosion-proof.
3.Brake: Hold brake or swelling brake.
4.Base: With concrete founfation or without concrete founation (with shock absorber).
