3 Phase Coconut Oil Making Machine for Extracting Virgin Coconut Oil

3 Phase Coconut Oil Making Machine for extracting virgin coconut oil

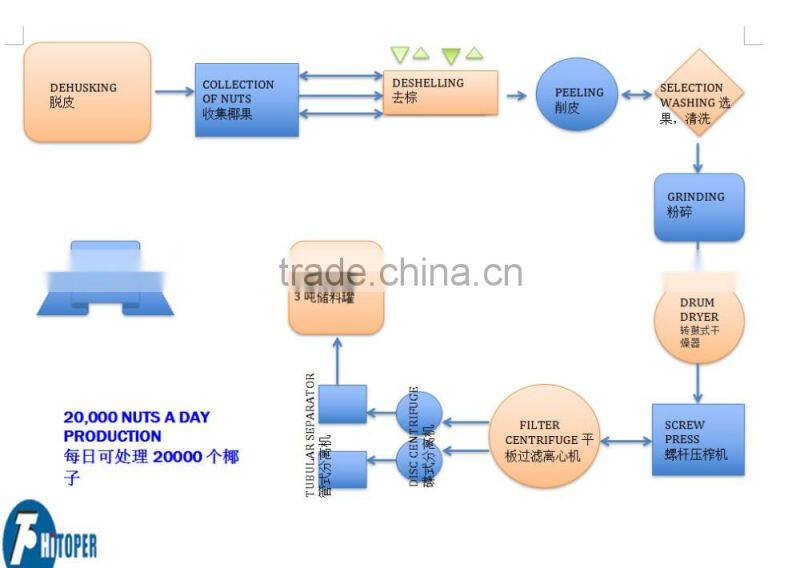

1.Process flow of 3 Phase Coconut Oil Making Machine for extracting virgin coconut oil:

The dried flesh of the Cocos nuci fera is mechanically pressed to obtain crude oil, extracted, decolorized and deodorized to remove free fatty acids, phospholipids, pigments, odorous substances and other non-greasy substances.

Wet processing: In the wet process, the raw material is fresh coconut. In addition to the product oil, other edible by-products from coconut oil are: coconut powder, protein, carbohydrates and vitamins. Ripe coconut shell, separate the coconut meat, and then peel the skin to remove the seed coat. Extract the oil from the outer seed coat as a by-product. The cut coconut meat is crushed by wedges, tooth plate crushers and drum crushers. The crushed powder is squeezed out of the coconut pulp by a screw press. Coconut pulp through the sieve conveyor filter, and then separated by high-speed centrifugal VCO.

For detergents, resins, paints, textile oils, soaps, food and so on. 2. Used in the manufacture of soap, soap, glycerol, shampoo, liquid soap, fatty alcohol, alkanolamide and other surfactants. Ink industry, used in the manufacture of coconut oil alkyd resin. 3. Saponification used as shampoo, bath and a variety of liquid soap blowing agent.

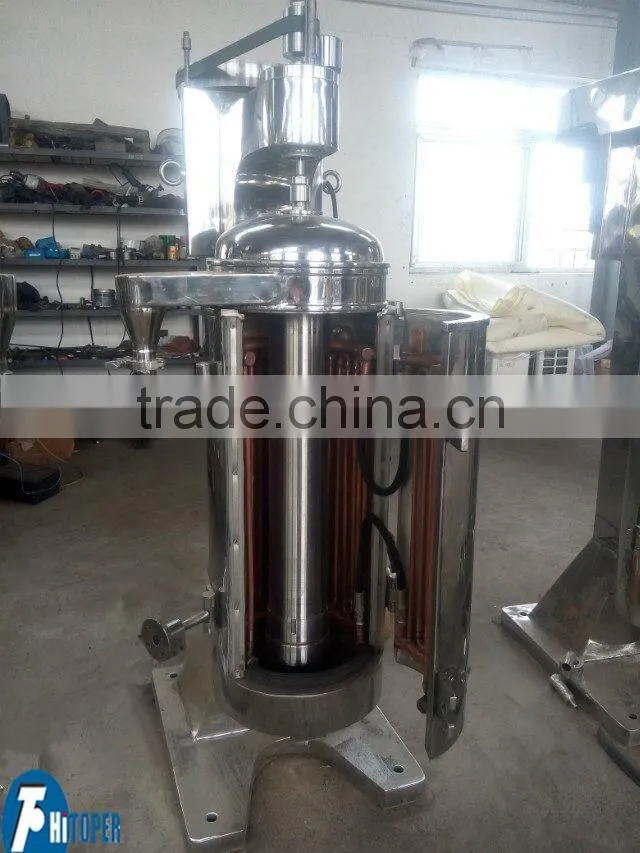

Tubular centrifuge is a kind of centrifugal equipment with high separation factor.The minimum separation particle size is 1micron.

Tubular centrifuge is mainly divided into clarify series GQ and separation series GF:

GF- separation type: mainly used for the separation of various difficult to separate the emulsion, especially for two-phase density difference little liquid, liquid separation (difference in specific gravity greater than 0.1%), as well as a small amount of liquid containing impurities, liquid, solid three-phase separator. Separation of various syrups;; separation of oil and the like, transformer oil, edible oil dehydration and dewaxing, turbine oil, biodiesel, coal tar, lubricants, marine fuel oil, quenching oil separation of whole blood - from whole blood the separation of plasma, blood cells; the separation of biological products; oil-water separation, sewage treatment.

Clarification GQ- centrifuge tube, mainly used for a variety of difficult to separate separating suspensions, especially suitable for low density, viscosity, fine solid particles, the solid-liquid specific gravity difference smaller solid-liquid separation.

Such as: large sugar oral liquid medicine, the floc more, fine solid particles and solid-liquid specific gravity difference is small, and so on.

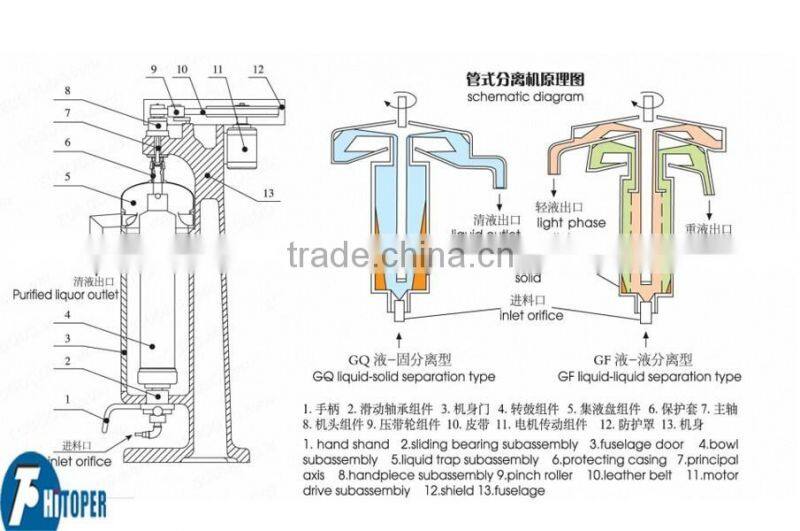

2.GF separation series:

This type mainly used for various industrial suspension very diffculty to separate,especially suitable for liquid-liquid suspension with small specific gravity difference between solid phase and liquid phase,and liquid-liquid-solid separation with few impurities.

Liquid with large density deposit on the outer wall of the drum and liquid with smallwe density deposite on the inner wall of the drum.Both of them get to the upper part of the drum to discharge .Solid particles deposit on the drum wall to be artificially discharge after downtime.

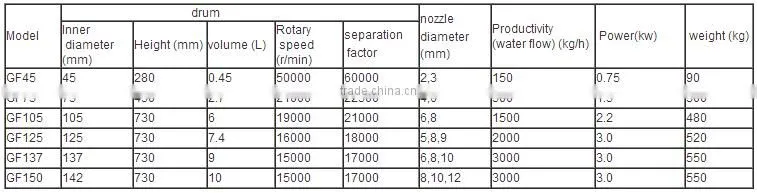

3.Technical parameter of 3 Phase Coconut Oil Making Machine for extracting virgin coconut oil:

4.GQ separation series:

GQ clarify series: it is mainly used for various suspension very difficulty to separate, especially suitable for suspension that is low concentration and fine grain, small specific gravity difference between solid phase and liquid phase. solid particles with larger Density deposite on the inner wall of the drum, gradually forming a sediment layer, which needs artificial discharge after downtime. the clarified fluid to the upper part of the drum is discharged from the drainage mouth.

Main application:

for example, the clarification for all kinds of liquid medicine, glucose chlorhexidine, malic acid, various oral liquid, Asiatic moonseed rhizome; extraction for Coal tar, graphite slag, a variety of protein, algae, pectin; refining for Honey; Blood separation, hyphae of vaccine, the settlement of various glucose, purification of paint, dye, resin, rubber solution.

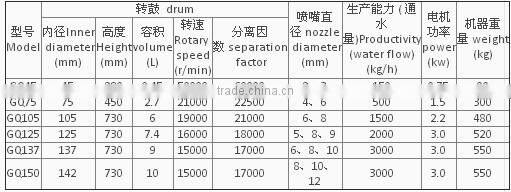

5.Technical parameter of 3 Phase Coconut Oil Making Machine for extracting virgin coconut oil:

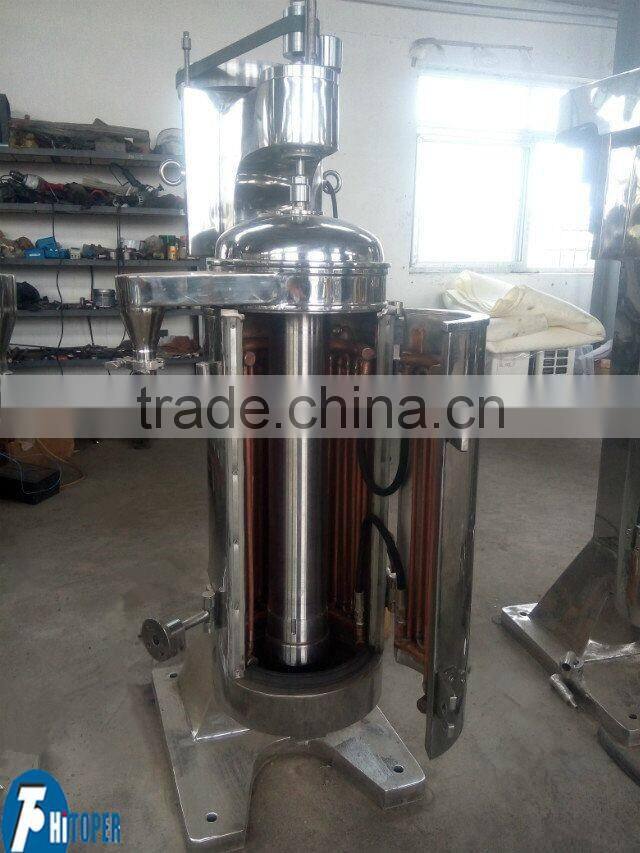

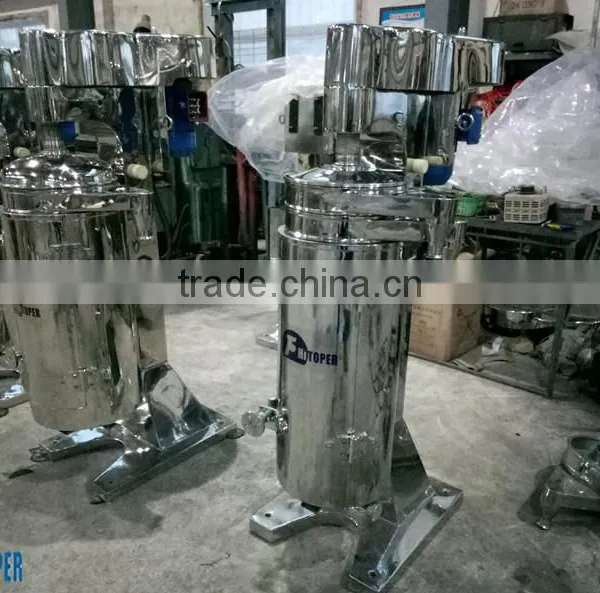

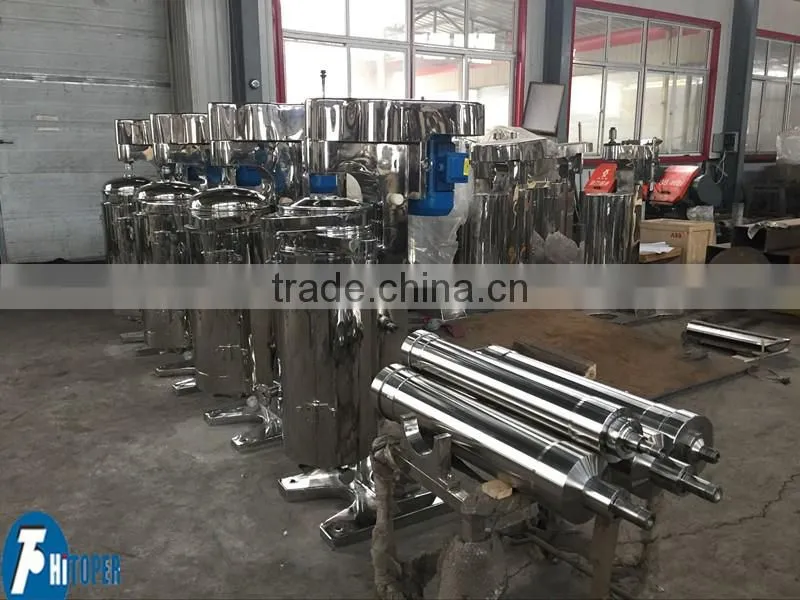

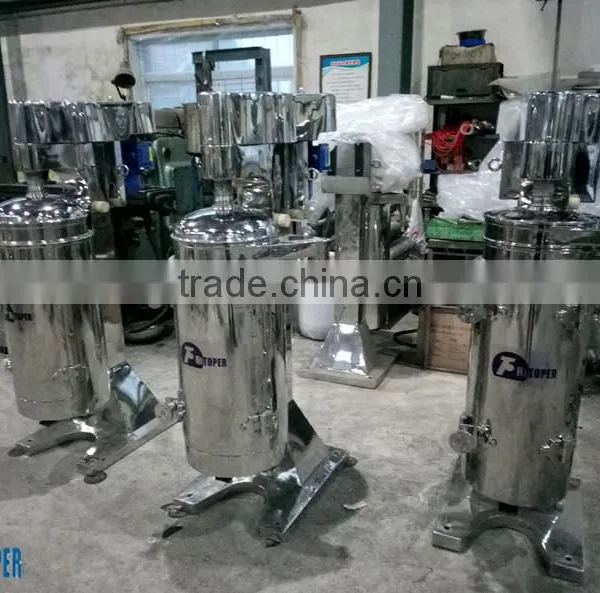

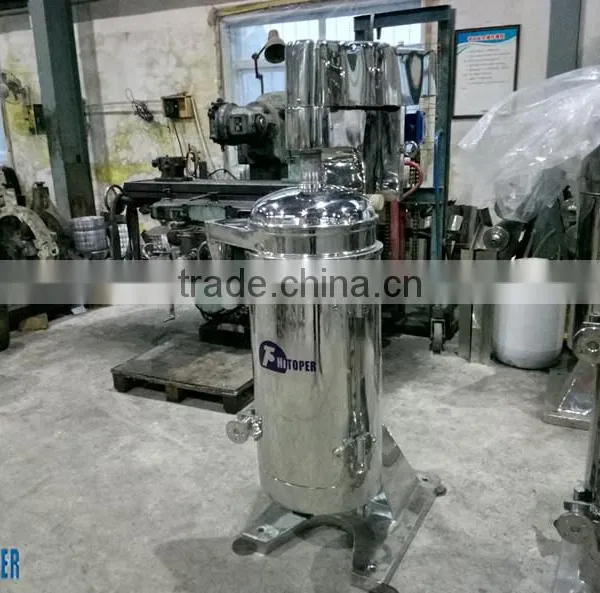

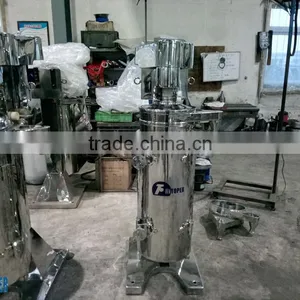

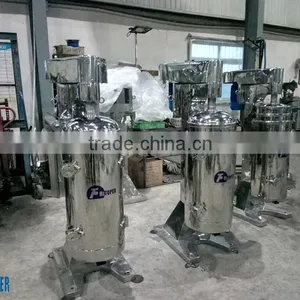

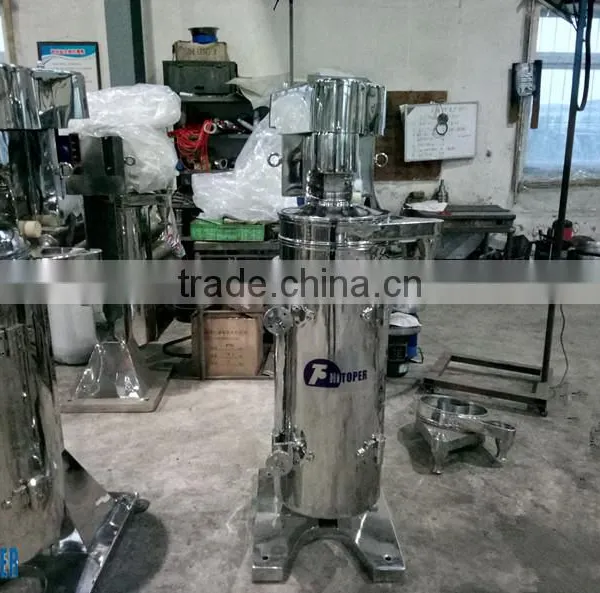

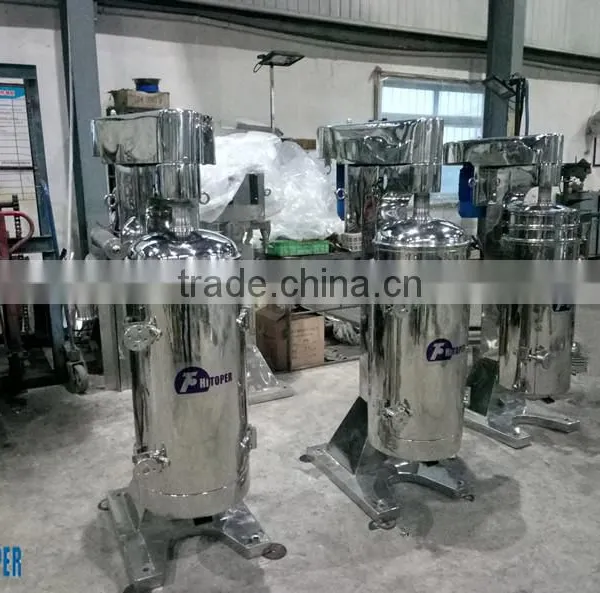

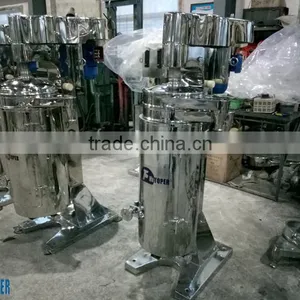

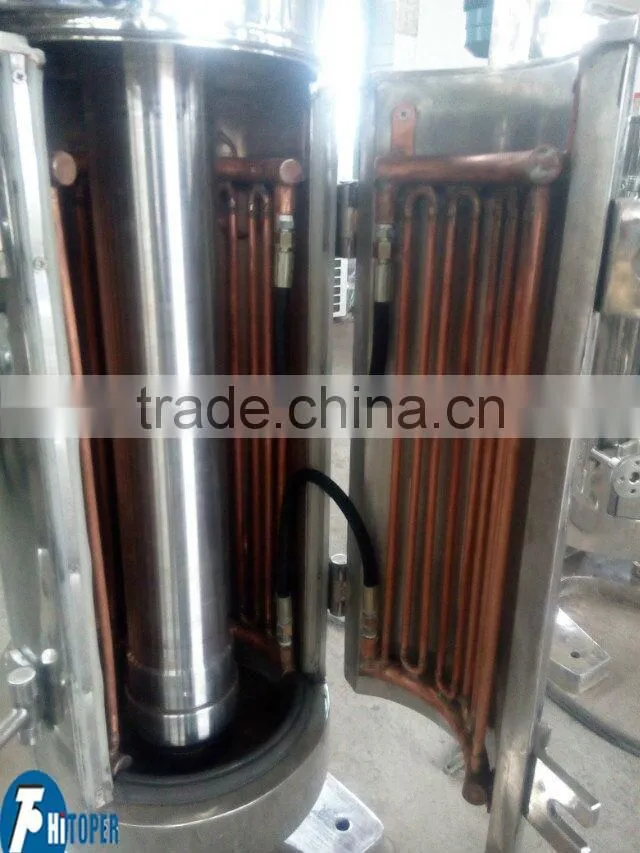

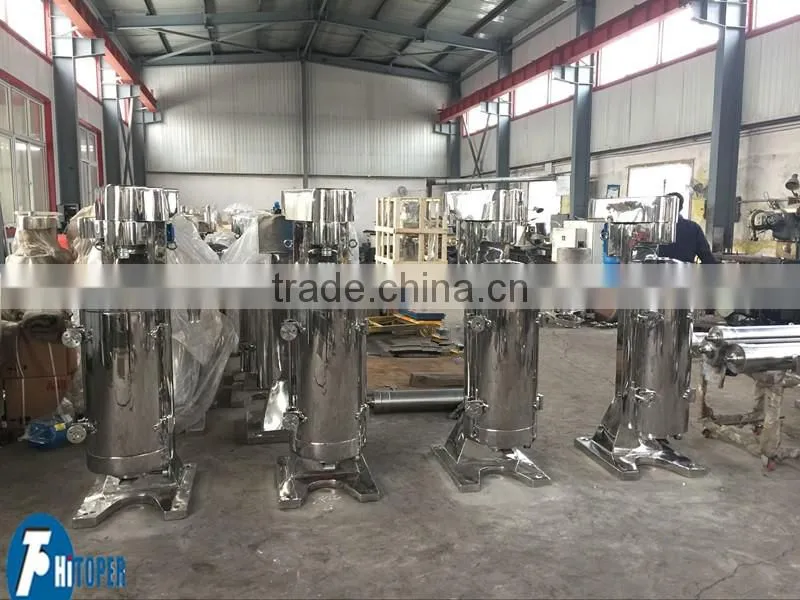

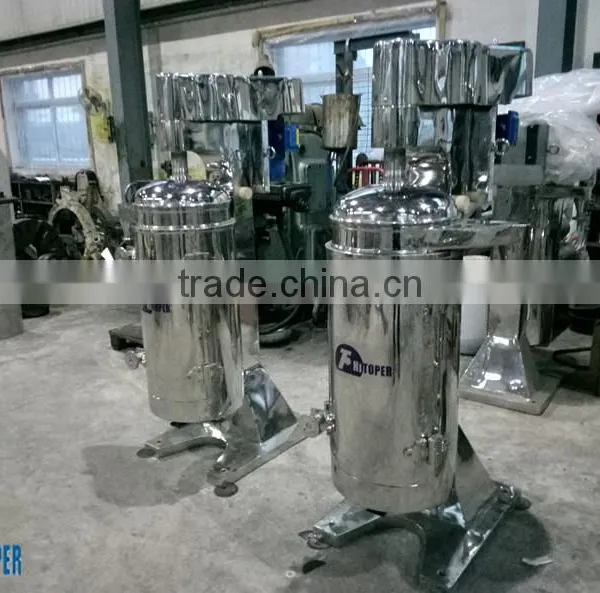

6.More photos of 3 Phase Coconut Oil Making Machine for extracting virgin coconut oil:

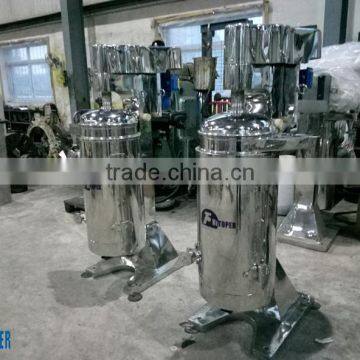

High Capacity cold press virgin coconut oil tubular centrifuge

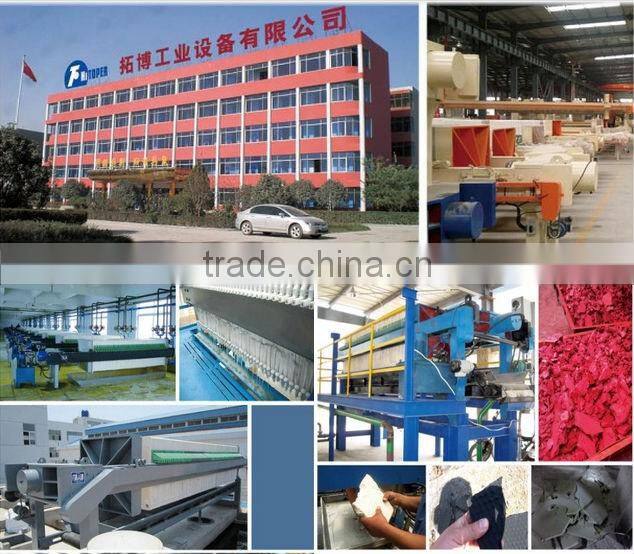

ZhengzhouToper is the lesding supplier of industrial equipment in China,and also the professional exporter and service provider of filter and separation equipment.Also,wo foucs on full service for flitering project from design to after-sales service and fast supply spare parts.

Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen, Iran, Iraq, Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Korea, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.

All of Toper's products:

1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter late

29. Filter cloth

30. Vacuum disc filter

1.We have professional person on line to advise you the most suitable type of machie  according to your requirement.

2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

3.Arrange the schedule if you pay a visit to our factory

4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.

ZhengzhouToper is the lesding supplier of industrial equipment in China,and also the professional exporter and service provider of filter and separation equipment.Also,wo foucs on full service for flitering project from design to after-sales service and fast supply spare parts.3 Phase Coconut Oil Making Machine for extracting virgin coconut oil

How to order 3 Phase Coconut Oil Making Machine for extracting virgin coconut oil:

1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.

2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.

3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.

4.Our company can supply non-standard model to meet your special demands.
