GQ105 Tubular Centrifuge, Oil Water Centrifuge Separator

GQ105 tubular centrifuge, oil water centrifuge separator

The high speed centrifuge for oil is the equipment that works with high separation factor and capacity, little space and easy operation, with low noises, it is extremely convenient to maintain.

GQ Tubular Centrifuge is mainly used for separating all kinds of suspension which is difficult to be separated, especially suitable for separation of solid-liquid suspension with light concentration, heavy viscosity, fine particles and very small differential gravity of the two phases, such as cooking oil, like peanut oil, tea tree oil, pine nut oil, walnut oil and olive oil.

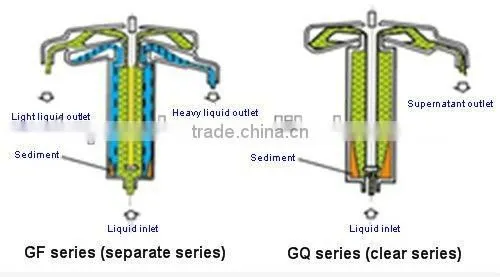

Working principle of oil centrifuge:

When the centrifuge for oil works, the motor passes the dynamic force to the driven wheel through driving strap and tension pulley, thus for the bowl to rotate around its own axis at high speed, forming a strong centrifugal force field. The material is injected inside from the liquid inlet on the bottom.

The centrifugal force compels the material liquid to flow upwards along the inner wall of bowl, and the liquid phase of large density is formed into outer ring and the liquid phase of small density is shaped into inner ring, to flow to the top of bowl, to be discharged out from their respective liquid outlets. The micro solids settle on the wall of the bowl and are to be manually discharged after the machine is shut down.

Parameters of oil centrifuge:

1.We have professional person on line to provide you comprehensive.easy-understanding and detail information and technical data about the machine you interested;solve your confusions or questions about the machine

2.Advise you the most suitable type of machine according to your requirement for your reference

3.Arrange the schedule if you pay a visit to our factory.

4.Send our technical engineer to your country for installation ,operation test ,slove questions and so on if required
