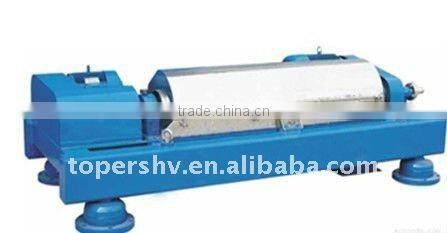

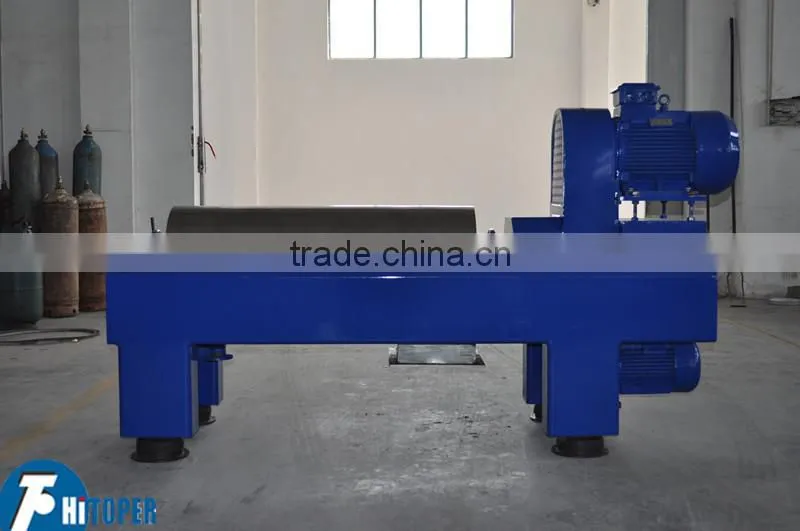

LW 355 model continuour separation decanter centrifuge of large capacity
- 100 Sheet / Sheets per Month
- Shanghai Qingdao Tianjin
- T/T L/C D/P D/A
- Plastic Packaging Film Heat Seal Tester/Laboratory Heat Sealer / five points heat seal tester
- (ASTM D882) Electronic Tensile measurement
- (ASTM D882) tensile test
- Electronic Tensile Strength Testing Machine desktop tensile testing machine
- High quality cof tester (GM-4)
- GHH Multifunctional Universal Tensile Tester for peeling, bonding, sealing puncture and compression test.
Product Details
Condition: | New | Type: | Other, Centrifuge, continuous operation | Product Type: | Other, separation centrifuge |
Place of Origin: | Henan, China | Brand Name: | Toper | Model Number: | LW355*1460 |
Voltage: | 380V/220V | Power(W): | 18.5+5.5 | Weight: | 2130kg |
Dimension(L*W*H): | 2587*1900*2300mm | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

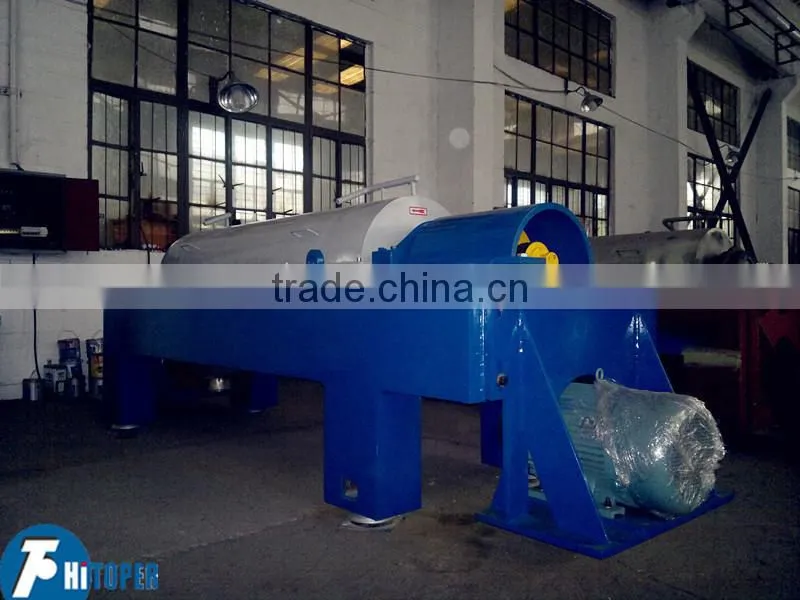

LW 355 model continuour separation decanter centrifuge of large capacity
LW 355 model oil separation deposition centrifuge uses the centrifugal sedimentation to separate the suspension, uses the spiral to unloading material.
It is continuously charging, separating, discharging at full speed. It is used in the suspension(in 0.0005~2mm, concentration 2-40%) solid-and-liquid separation, size classification, liquid clarification .Especially .
it is suitable for the suspension separation that with difficult in filter cloth recycling, and the material with large concentration and big size range.
Device Overview
1.1 Structure type: This machine is a kind of counter-flow type horizontal spiral centrifuge.At high-speed rotation of centrifuges to produce powerful centrifugal force, so that the solid-liquid continuous separation.
1.2 Discharge way: The dehydrated cake solids discharged by screw introduced from the drum and then fall by gravity ; the separated liquid is discharged by the centrifugal force out of the drum is ,and then discharged by gravity.

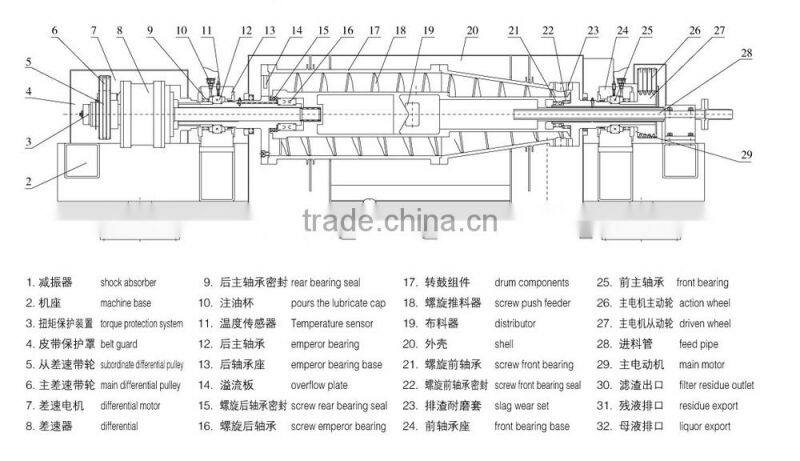

1.3 Equipment consist: Column - cone drum, auger, planetary gear differential, bearings, frame, shock absorber, outer shell, feeding tube, main and auxiliary motor drive system; temperature sensor, on-site emergency switch, dehydration system integration start control cabinet and other components.
1.4 Drive system: Main drive ----- main motor, belt drive system and inverter start up system :
Differential drive --- Assistant motor, belt drive ---- Department of planetary gear differential and frequency control system.
1.5 Lubrication: anti-wear, extreme pressure lithium grease lubrication
1.6 Control system: To cure the program provides centrifuge control measurement display, process chains and alarm protection. Include: centrifuge drum speed, differential input speed, bearing temperature alarms and safety devices
LW 355 model oil separation deposition centrifuge
Mode | Roller diameter( mm) | Diameter ratio | The speed of the roller (r/min) | separation factor | Motor power (kw) | weight (kg) |
LW220*660 | 220 | 3 | 4800 | 2840 | 7.5-11 | 900 |
LW220*880 | 220 | 4 | 4300 | 2280 | 7.5-11 | 1000 |
LW300*900 | 300 | 3 | 3750 | 2370 | 11-15 | 1300 |
LW300*1140 | 300 | 3.8 | 3750 | 2370 | 11-15 | 1500 |
LW350*1050 | 350 | 3 | 3700 | 2690 | 15 | 1700 |
LW350*1420 | 355 | 3.8 | 3700 | 2690 | 15-18.5 | 2000 |
LW400*1200 | 400 | 3 | 3500 | 2750 | 18.5-22 | 2500 |
LW400*1600 | 400 | 4 | 3200 | 2300 | 22-30 | 2800 |
LW450*1440 | 450 | 3.2 | 3000 | 2270 | 22-30 | 3200 |
LW500*1600 | 500 | 3.2 | 2800 | 2200 | 30-37 | 4000 |
LW500*2000 | 500 | 4 | 2800 | 2200 | 45-55 | 4800 |
LW530*2000 | 530 | 3.8 | 2700 | 2170 | 45-55 | 5200 |
Different type of the decanter centrifuge :

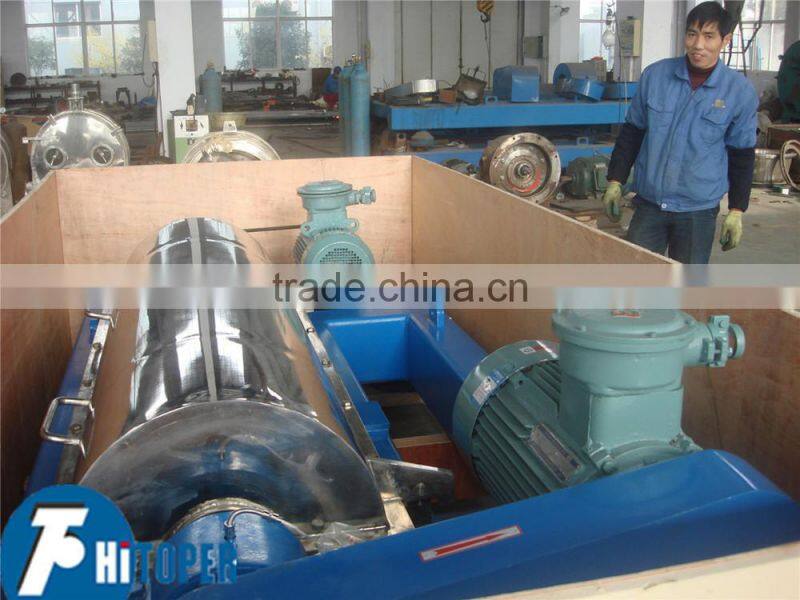

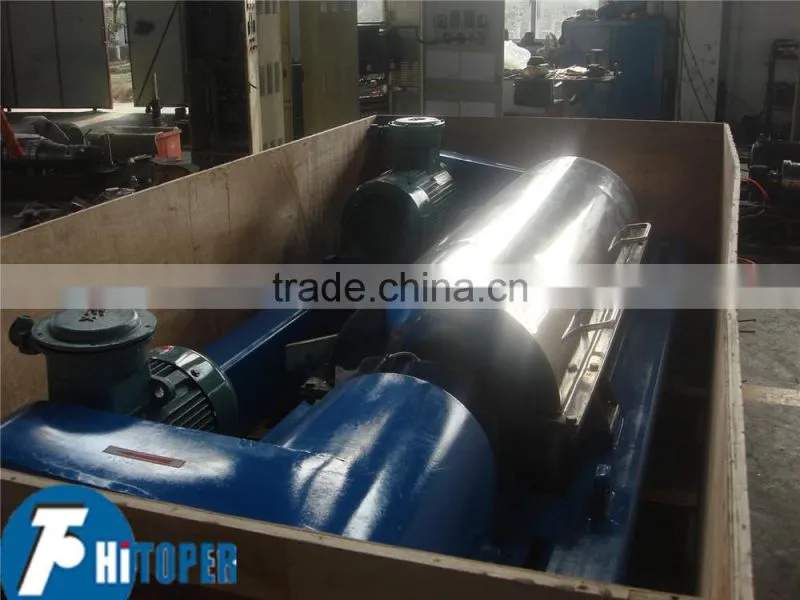

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.
1.We have professional person on line toprovide you comprehensive.easy-understanding and detail information and technical data about the machine you interested;solve your confusions or questions about the machine
2.Advise you the most suitable type of machine according to your requirement for your reference
3.Arrange the schedule if you pay a visit to our factory.
4.Our technical engineer can also come to help installation,operation test,solve problems and so on if required.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter

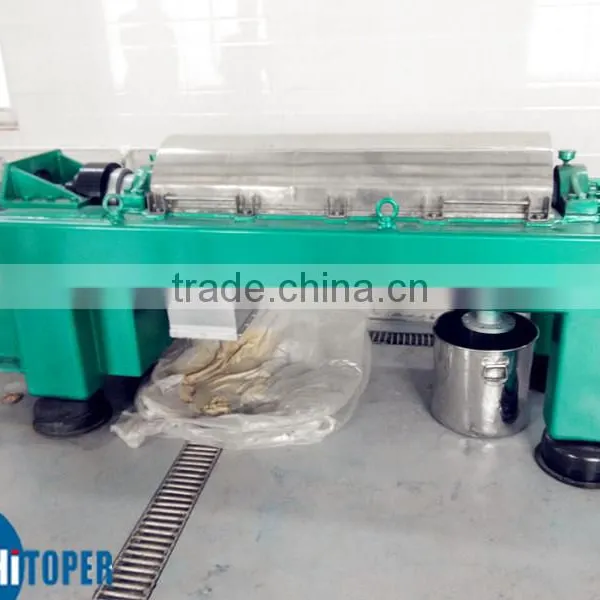

LW 355 model continuour separation decanter centrifuge of large capacity
