Specifications
1.Complete circulation2.Programmable control
3.Automatic backwashing
4.High filtering precision
Characteristic description
A-S series Quartz Sand filters using quartz sand as filter media in a filter with high efficiency, can effectively remove the suspended substance in water, microorganisms, and other fine as to reduce water turbidity, water purification effect.The system is the automatic system, if without artificial operation, the system will automatically backwashing once every 24H (backwash interval reference number can be based on user conditions to change)
Technical parameters
- Single filter water flow: 50m³/h
- Pressure rating: 0.25Mpa~2.5Mpa
- Working temperature range: 0 ~ 65 °C
- Effluent turbidity:less-than three
- Inlet and outlet Connection: flange
- Backwash water: for total filtered water 1 to 3%
- Control mode: pressure control; PLC timing control
- Sewage way: automatic sewage suction nozzle or brush, safe and reliable
- Rated operation voltage: 220V, 380V, 50HZ, three-phase
- Installation: vertical, horizontal
Model and Specification
| Model | D(mm) |
D1(mm) |
H(mm) |
H1(mm) |
weight(Kg) |
filter area(m2) |
The clean water (m³/h) |
S605 |
300 |
37.5 |
116.5 |
150 |
42 |
0.07 |
2-5.6 |
S610 |
400 |
50 |
1105 |
180 |
45 |
0.12 |
4-9.6 |
S620 |
500 |
25-75 |
1210 |
180 |
47 |
0.2 |
8-16 |
S635 |
625 |
50-100 |
1200 |
180 |
58 |
0.3 |
12-24 |
S640 |
750 |
50-100 |
1070 |
300 |
125 |
0.44 |
17-35 |
S650 |
900 |
50-100 |
1110 |
300 |
197 |
0.63 |
25-50 |
S660 |
1200 |
50-100 |
1110 |
300 |
290 |
1.13 |
45-90 |
Size Chart

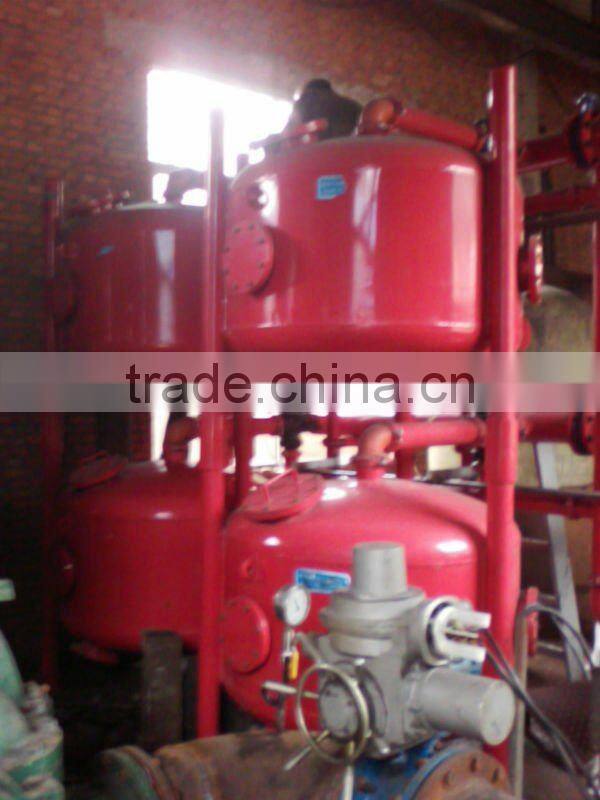

Real figure
