Concentrated Sludge Dewatering Belt Type Filter Press

Concentrated sludge dewatering belt type filter press

1.Brief introduction of Concentrated sludge dewatering belt type filter press:

Belt filter, also known as belt press filter, belt filter is composed of two endless filter belt wrapped in a series of order, the size of the roller, the use of the filter between the extrusion and shear A filter device for removing moisture from the slurry.factory price belt filter press supplier used for urban sludge dewatering in municipal engineering projects.

Belt filter because the press roll with a different layout and combination can form a lot of different models. It has the advantages of simple structure, high dewatering efficiency, large amount of energy, low energy consumption, low noise, high degree of automation, continuous operation and easy maintenance. The cost and running cost are 30% lower than that of the frame filter press. The preferred equipment for urban sewage treatment.

Belt filter is mainly used in papermaking, printing and dyeing, pharmaceutical, mining, steel, coal, leather and other industries, especially in urban sewage treatment and industrial sludge dewatering the most common application.

2.Design features of Concentrated sludge dewatering belt type filter press:

1. Austria advanced technology,beautiful appearance.

2. Big structural rigidity,smooth operation,low noise.

3. configure the advanced pre-enrichment,sludge flocculation effect,low operating costs.

4.From feeding to discharge the cake,all is continuous operation,high degree of automation,PLC interface can be installed as needed,convenient for computer centralized control.

5.Safe and reliable operation,with emergency stop device of security and safety protection.

6.Can be configured with different specifications of the filter according to different materials,high filtering precision.

3.Application Industry of Concentrated sludge dewatering belt type filter press:

Belt filter is mainly used in papermaking, printing and dyeing, pharmaceutical, mining, steel, coal, leather and other industries, especially in urban sewage treatment and industrial sludge dewatering the most common application.

4.Technical parameters of Concentrated sludge dewatering belt type filter press:

5.Working principle of Concentrated sludge dewatering belt type filter press:

The working principle of the belt filter is generally divided into four stages:

1, the pretreatment stage, the raw slurry of solid content is generally very low, must use gravity sedimentation or other ways to improve the slurry concentration, in order to reduce processing costs. Commonly used pretreatment is: the concentrated sludge and polymer flocculant mixture, the role of the agent in the flocculant, fine particles agglomerated, and the initial precipitation, which is the sludge on the machine to prepare the conditions for dehydration.

2, gravity dehydration stage, the flocculation pretreatment of sludge added to the filter belt, under the action of gravity, floc outside the free water will be filtered through the filter, reducing the water content of the sludge.

3, wedge pre-pressure dehydration stage, the sludge after gravity dehydration began to enter the wedge-shaped press section, the filter belt gap gradually shrink, began to squeeze the sludge and shear the role of sludge again dehydration. After this stage the sludge flow is almost completely lost, thus ensuring that under normal circumstances the sludge will not be squeezed out in the press dewatering section.

4, pressing the dehydration stage, the sludge has been carefully designed to squeeze the roller system repeatedly squeeze and shear, take off a lot of capillary water, the sludge gradually reduce the water, the formation of sludge cake, in the re-election filter separation Department, the filter cake was scraping scraping scraping, discharge cloth filter after cleaning into the next cycle.

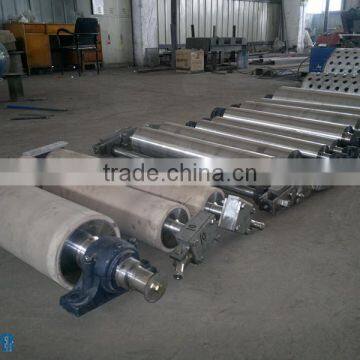

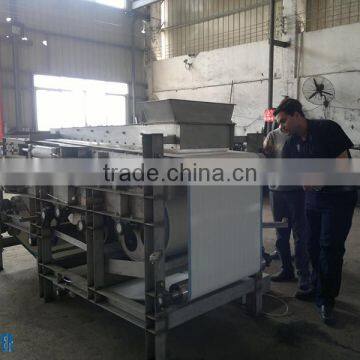

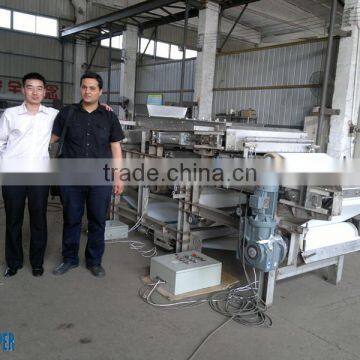

6.Pictuers Show of Concentrated sludge dewatering belt type filter press:

All of Toper's products:

1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter late

29. Filter cloth

30. Vacuum disc filter

1.We have professional person on line to advise you the most suitable type of machie  according to your requirement.

2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

3.Arrange the schedule if you pay a visit to our factory

4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.

We provide reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.

How to order filter press:

1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.

2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.

3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.

4.Our company can supply non-standard model to meet your special demands.
