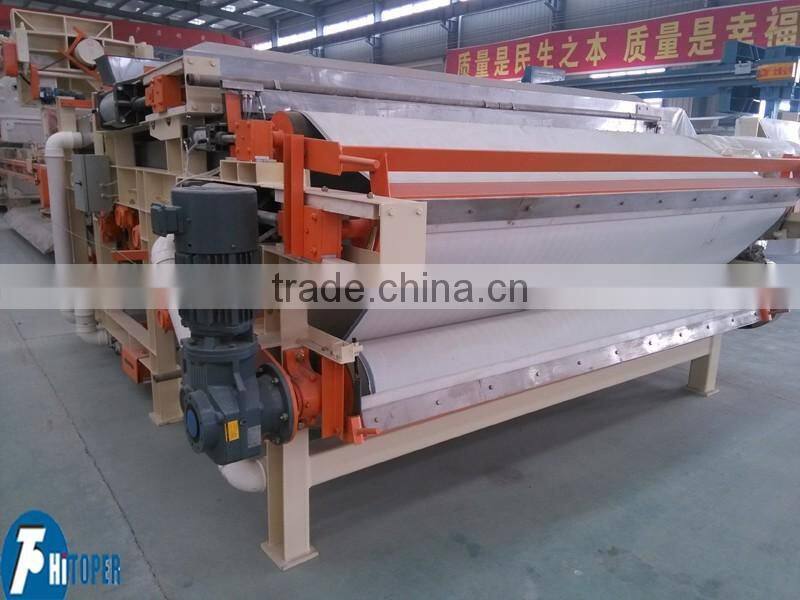

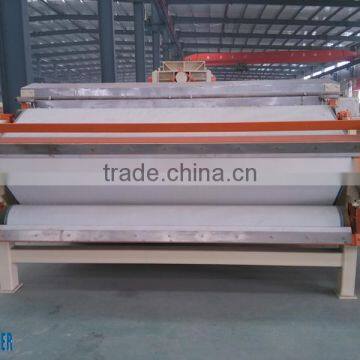

Continuous operation filter press, belt press operation
DY series belt filter press in our compay including DY750, DY1000, DY1500, DY2500, DY3000, and they are widel used in urban sewage treatment, chemical, oil refining, metallurgy, paper, leather, food, coal washing, printing and dyeing industry, sludge dewatering,
Design features of belt filter press :
1. Big steel structure, smooltly operation and low noise.
2. Pre-treatment with a better flocculation effect & low operation osts.
3. Bali chargng machine, will feeding the sewage evenly, making te belt life longer.
4. Continue working from feeding to discharging, PLC control.
5. With reliable washing equipment, to ensure the dewaering effect of the belt.
6. Safe and reliable operation, together with emerbency stop device.
7. With your different type of sewage, we can supply you belt with best suitable filtering precision.
belt filter press flow:
Technical parameters of belt filter press :
Type | Belt width (mm) | Main motor power (kw) | Belt speed (m/min) | Belt wash water | Compressed air | Total Weight (kg) | ||
Water pressure (MPa) | Water quantity (m3/h) | Air pressure (MPa) | Quantity of air (m3/h) | |||||
DY750 | 750 | 1.1 | 4-20 | ≥0.4 | 2.5 | 0.7 | 0.2 | 2570 |
DY1000 | 1000 | 1.5 | 4-20 | ≥0.4 | 3.3 | 0.7 | 0.2 | 2920 |
DY1500 | 1500 | 1.5 | 4-20 | ≥0.4 | 5 | 0.7 | 0.2 | 3590 |
DY2000 | 2000 | 2.2 | 4-20 | ≥0.4 | 6.6 | 0.7 | 0.2 | 4490 |
DY2500 | 2500 | 2.2 | 4-20 | ≥0.4 | 8.3 | 0.7 | 0.3 | 5520 |
DY3000 | 3000 | 2.2 | 4-20 | ≥0.4 | 10 | 0.7 | 0.3 | 6220 |
Application cases.
All of our products
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB, SB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
